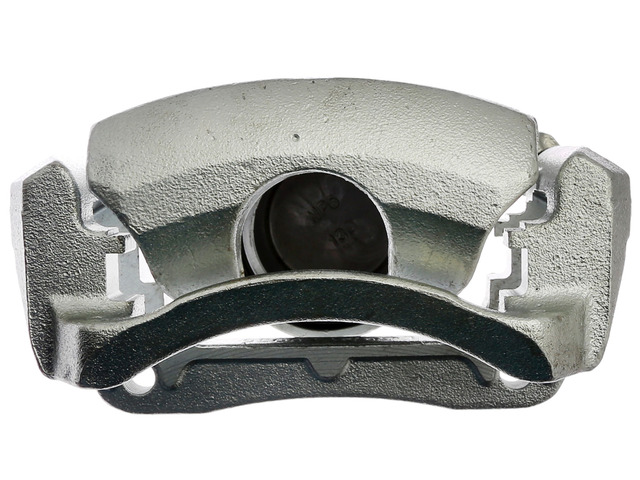

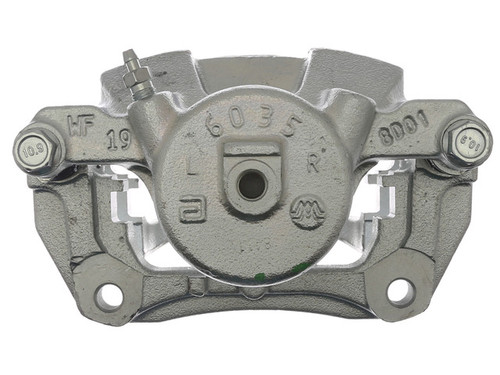

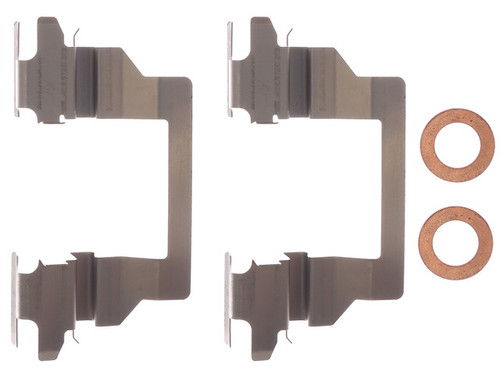

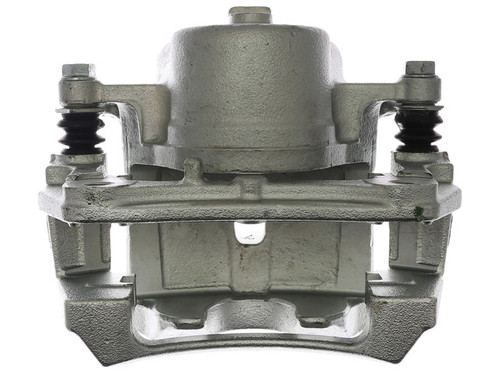

Put all-new, zinc-plated hardware back at the front left wheel with the Raybestos Element3 Brake Caliper FRC11617N, a semi-loaded caliper and bracket assembly that uses hydraulic pressure to press the brake pads against the rotor. It is listed for several models, among them the 2004-2008 Chevrolet Malibu, 2006-2011 Chevrolet HHR and 2007-2008 Saturn SKY. See the Buyer's Guide tab for the full list.
Raybestos builds the Element3 line of new plated calipers for quality-driven customers. The line is precision engineered to meet OE performance and durability.
- OE-engineered design: Engineered to meet OE performance.
- Zinc plating: The cast iron housing and bracket are zinc plated for superior corrosion resistance in harsh conditions.
- Tested surface finish: Meets ASTM B-117 test standards for 96-hour salt spray corrosion resistance.
- Newly manufactured: Built from 100% new components.
This floating caliper has a 60.2 mm (2.37 in) piston and an M10x1 bleeder screw thread. Its bracket mounting holes measure 12.000 mm with a 1.750 mm thread pitch. Country of origin: China.
If you are shopping for an HHR brake caliper, watch for these signs that the caliper may need replacing: the vehicle pulls to one side, brake fluid seeps at the caliper, a brake drags or sticks, or the pads wear unevenly. The listed applications use one caliper at this position. For even braking, consider replacing the right-side caliper at the same time.
Interchange: 15-14208 · 99-17350A · 18-B4910 · 141.62140 · 142.62140 · 14-4272
1514208 · 9917350A · 18B4910 · 14162140 · 14262140 · 144272 · SC1165
This part cross-references / interchanges with the following part numbers:
15-14208, 99-17350A, 18-B4910, 141.62140, 142.62140, SC1165, 14-4272
