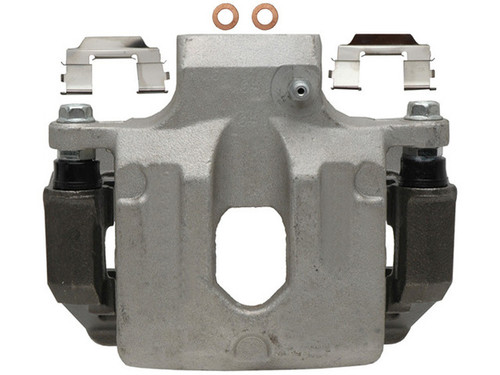

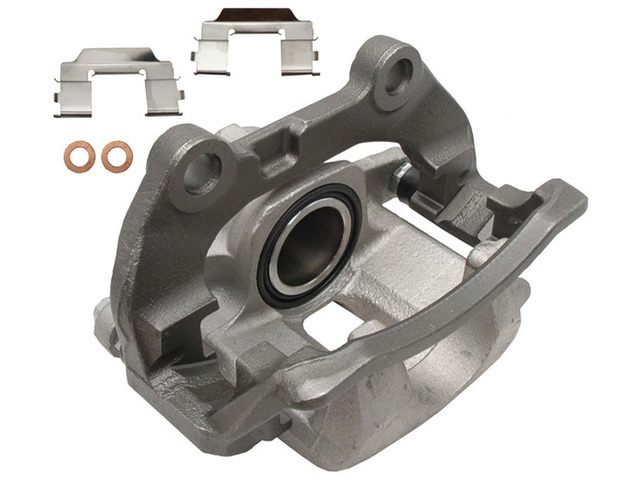

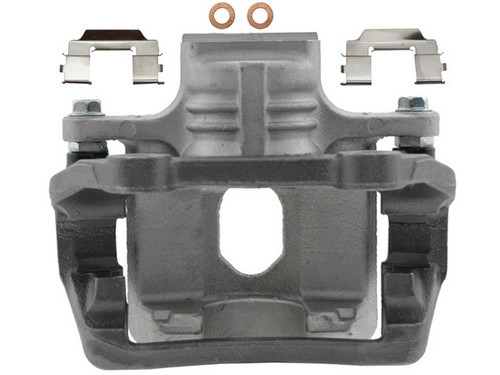

Raybestos Brakes FRC11331 rear left brake caliper for the 2002-2009 Chevrolet Trailblazer and other vehicles clamps the brake pads against the rotor to slow the wheel. It is a remanufactured, semi-loaded caliper and bracket assembly.
- Raybestos R-Line non-plated remanufactured caliper
- Castings, guide pins and brackets are inspected before being reused
- Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings replaced with new parts for leak-free operation
- Silicone boots for heavy-duty applications, where applicable
- 100% pressure tested
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos Brakes FRC11331 brake caliper
- Also called: disc brake caliper
- Fits: 2002-2009 Chevrolet Trailblazer and other vehicles
- Position: Rear left
- Material: Aluminum
- Condition: Remanufactured
A failing disc brake caliper can leak fluid at the wheel or pull the car to one side under braking. Before you replace it, rule out worn pads, a damaged brake hose or a stuck guide pin, which can cause similar symptoms. One caliper goes on each side of the rear axle; this listing is the left side, the right is ordered separately, and the two are normally changed as a pair.
Fits
It is listed for a wide range of Chevrolet, GMC and Saab models, including the 2002-2009 Chevrolet Trailblazer, the 2002-2009 GMC Envoy and the 2005-2009 Saab 9-7X as a direct-fit replacement.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Piston diameter: 48 mm (1.89 in)
- Bleeder screw thread: M10x1
Build and materials
- Caliper type: Floating
- Assembly: Semi-loaded caliper and bracket
- Casting material: Aluminum
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured semi-loaded caliper and bracket assembly.
Interchange: 99-17320A · 18-B4804 · 18-P4804 · 141.66508 · 142.66508 · 10-4256S · 14-4256
SC1119
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
99-17320A, 18-B4804, 18-P4804, 141.66508, 142.66508, SC1119, 10-4256S, 14-4256
Frequently Asked Questions
Is this Trailblazer caliper right for the 2002-2009 Chevrolet Trailblazer?
Yes, Raybestos Brakes FRC11331 is a rear left caliper for the 2002-2009 Chevrolet Trailblazer. If your car is another model, look it up in the "Vehicles it fits" section on this page.
What size is the piston on the Raybestos Brakes FRC11331 caliper?
The piston on Raybestos Brakes FRC11331 is 48 mm (1.89 in) across. The bleeder screw thread is M10x1.
Is this rear left caliper a floating type?
Yes. This caliper is a floating type with an aluminum casting, supplied as a semi-loaded caliper and bracket assembly.
Could fluid at the wheel or a pull to one side mean the rear left caliper is failing?
A fluid leak near the wheel, a pull to one side when braking or one pad wearing faster than the other can be signs of a failing caliper. Brakes affect stopping, so have the car inspected promptly.
Does Raybestos Brakes FRC11331 replace part number 18-P4804?
Yes, 18-P4804 is one of the interchange numbers listed for Raybestos Brakes FRC11331, a rear left caliper.
