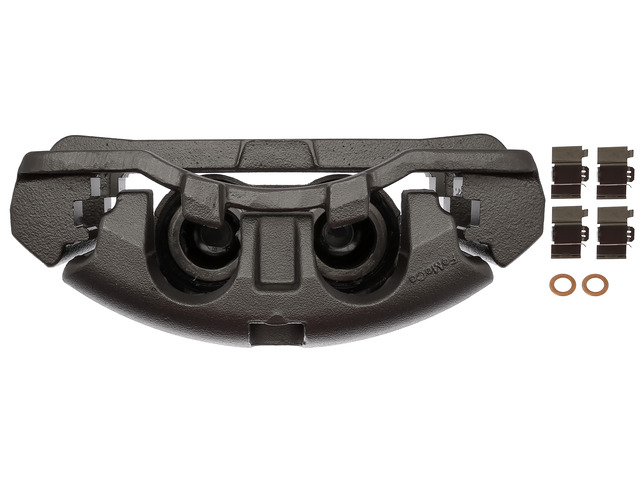

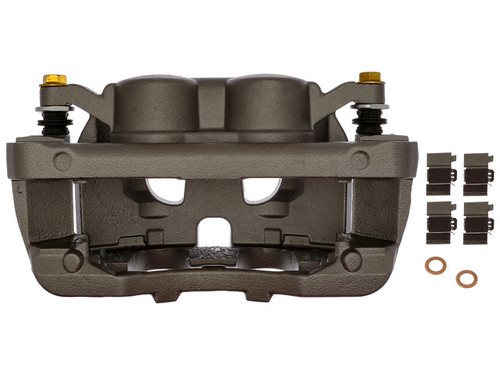

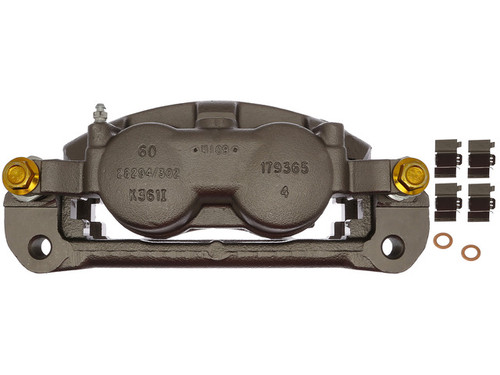

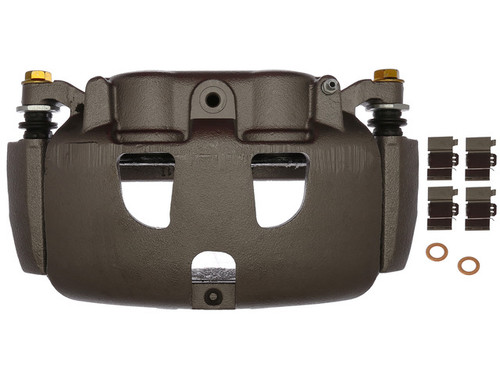

Remanufactured Front Right Brake Caliper for 2013-2022 Ford F-250 Super Duty & More - Raybestos FRC12593

$163.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: FRC12593
    UPC: 887213111200
    Condition: Refurbished
    Weight: 20.90 LBS
    Item Package Quantity: 1
    $163.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Caliper P/N:FRC12593
    Raybestos Brakes Disc Brake Caliper P/N:FRC12593
    $163.99
    $163.99

    Raybestos Brakes FRC12593 front right brake caliper for the 2013-2022 Ford F-250 Super Duty and other vehicles presses the pads against the rotor to slow the wheel. It is a remanufactured, semi-loaded caliper and bracket assembly.

    • Raybestos R-Line series; castings, guide pins and brackets are inspected before reuse
    • All-new seals, boots and bleeder screws for leak-free operation
    • New abutment hardware, banjo bolts and O-rings
    • 100% pressure tested
    • EPDM70 rubber components for heat resistance and durability
    • Silicone boots for heavy-duty applications, where applicable

    Quick facts

    • Part: Raybestos Brakes FRC12593 brake caliper
    • Also called: disc brake caliper
    • Fits: 2013-2022 Ford F-250 Super Duty and other vehicles
    • Position: Front right
    • Material: Cast iron
    • Condition: Remanufactured

    Pulling to one side under braking, brake fluid at the wheel or a brake that drags can mean the disc brake caliper is worn, though a damaged brake hose or a sticking pad can also be behind them, so trace the source before you buy.

    Fits

    This front right caliper fits the 2013-2022 Ford F-250 Super Duty. It is also a brake caliper for the 2013-2022 Ford F-350 Super Duty and the 2013-2016 Ford F-450 Super Duty, and each takes one on the front right. This listing is one caliper; the front left is a separate part, and the pair on that axle is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity per application: 1
    • Piston diameter: 59.868 mm (2.357 in)
    • Piston quantity: 2
    • Bleeder screw thread: 3/8-24
    • Bracket mounting hole: M16, thread pitch 2 mm

    Build and materials

    • Type: Floating caliper, semi-loaded, with mounting bracket included
    • Condition: Remanufactured
    • Casting material: Cast iron
    • Surface finish: Coated; bracket also coated
    • Casting numbers: 60 2B294/302 179365 K361I, 60 DC34-2B120/1-A 17936500 K361I
    • Country of origin: Mexico

    In the box

    One front right caliper with its mounting bracket.

    Interchange: 18-B5486 · 99-17990A · 18-5486 · 18-P5486 · 141.65101 · 142.65101 · 10-3425S · 14-3425
    SC3358 · BRCF258 · BRCF402

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18-B5486, 99-17990A, 18B5486, 18-5486, 18-P5486, 141.65101, 142.65101, SC3358, BRCF258, BRCF402, 10-3425S, 14-3425

    Frequently Asked Questions

    Is the Raybestos Brakes FRC12593 caliper the right one for the 2013-2022 Ford F-250 Super Duty?

    Yes. Raybestos Brakes FRC12593 is the front right caliper for the 2013-2022 Ford F-250 Super Duty. The front left side takes a separate caliper.

    Does this front right caliper come with its mounting bracket?

    Yes. Raybestos Brakes FRC12593 is a caliper and bracket assembly, so the mounting bracket is included. The listing is one caliper assembly.

    What size is the piston on this floating caliper?

    The piston diameter is 59.868 mm (2.357 in), and the caliper has two pistons. The bracket mounting holes are M16 with a thread pitch of 2 mm.

    What rubber does this remanufactured caliper use?

    The rubber components are EPDM70, and silicone boots are used for heavy-duty applications where applicable. Each unit is 100% pressure tested.

    Is 18-B5486 the same caliper as Raybestos Brakes FRC12593?

    Yes. 18-B5486 is one of the numbers that Raybestos Brakes FRC12593 replaces, along with 99-17990A and 18-5486.
