Remanufactured Rear Right Brake Caliper for 1994-2004 Ford Mustang - Raybestos FRC10545

$151.99

Vehicles this part fits

    Part number: FRC10545
    UPC: 753497952610
    Condition: Refurbished
    Weight: 8.00 LBS
    Item Package Quantity: 1
    $151.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Caliper P/N:FRC10545
    Raybestos Brakes Disc Brake Caliper P/N:FRC10545
    $151.99
    $151.99

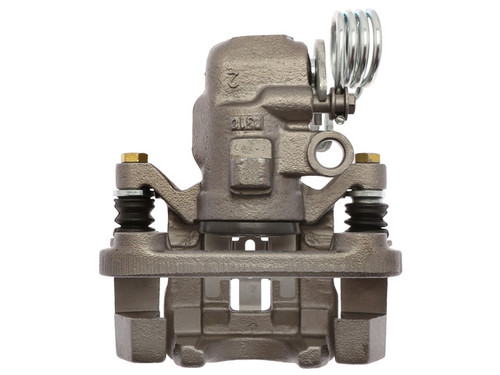

    Raybestos Brakes FRC10545 rear right brake caliper for the 1994-2004 Ford Mustang is remanufactured and clamps the pads against the rotor. The semi-loaded disc brake caliper comes together with its bracket as one assembly.

    • Raybestos R-Line non-plated remanufactured caliper built with all new rubber and sealing components

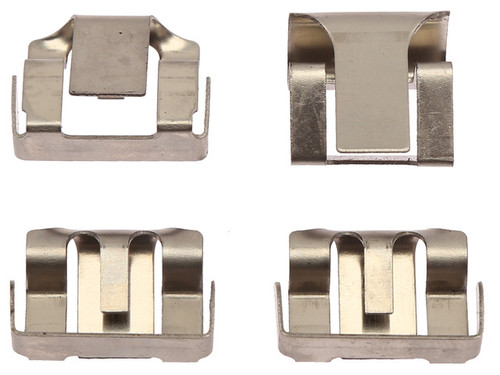

    • Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings replaced with new parts for leak-free operation
    • Castings, guide pins and brackets are inspected before they are reused
    • EPDM70 rubber components for heat resistance and durability
    • 100% pressure tested, and each caliper is tested for braking performance

    Quick facts

    • Part: Raybestos Brakes FRC10545 brake caliper
    • Also called: disc brake caliper
    • Fits: 1994-2004 Ford Mustang
    • Position: Rear right
    • Material: Cast iron
    • Condition: Remanufactured

    Fluid leaking near the wheel, a pull to one side under braking, or a rear wheel that drags can mean a caliper is worn or sticking. A pull alone does not prove the caliper is at fault, since worn pads or a damaged rotor can also cause it.

    Fits

    This caliper is a direct-fit replacement for the 1994-2004 Ford Mustang. The listing is one caliper for the rear right; the rear left is a separate part, and both sides are normally replaced together. The rear axle takes one caliper on each side.

    Specifications

    Fit and size

    • Position: Rear right
    • Quantity per application: 1
    • Caliper piston diameter: 25.4 mm (1 in)
    • Bleeder screw thread: M10x1

    Build and materials

    • Type: semi-loaded caliper and bracket assembly
    • Casting material: cast iron
    • Finish: non-plated
    • Condition: remanufactured
    • Country of origin: Mexico

    In the box

    One semi-loaded caliper and bracket assembly.

    Interchange: 99-17860A · 18-B4544 · 141.61525 · 14-3087
    SC1772A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    99-17860A, 18-B4544, 141.61525, SC1772A, 14-3087

    Frequently Asked Questions

    Will Raybestos Brakes FRC10545 go on the rear right of a 1994-2004 Ford Mustang?

    Yes. Raybestos Brakes FRC10545 is made for the rear right of the 1994-2004 Ford Mustang. The rear left side takes its own caliper.

    What comes with the Raybestos R-Line semi-loaded caliper and bracket assembly?

    One semi-loaded caliper and bracket assembly for the rear right. It is remanufactured with new seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings.

    What size is the piston in the Raybestos Brakes FRC10545 caliper?

    The piston diameter is 25.4 mm (1 in). The bleeder screw thread on Raybestos Brakes FRC10545 is M10x1.

    How can I tell if a rear right brake caliper is sticking or leaking?

    Fluid leaking near the wheel, a pull to one side under braking, or a rear wheel that drags can point to a sticking or leaking caliper. A brake shop can inspect it.

    Does 99-17860A cross to the Raybestos Brakes FRC10545 caliper?

    Yes. 99-17860A is listed as an interchange number for Raybestos Brakes FRC10545.
