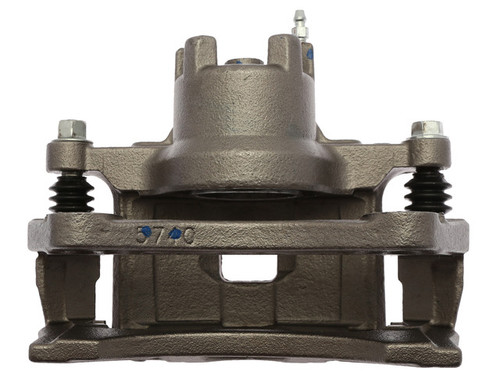

Raybestos Brakes Disc Brake Caliper FRC11954 - view 2

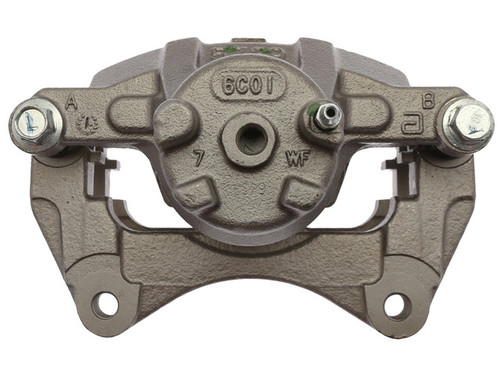

Raybestos Brakes Disc Brake Caliper FRC11954 - view 3
Raybestos Brakes Disc Brake Caliper FRC11954 - view 4
Raybestos Brakes Disc Brake Caliper FRC11954 - view 5
Raybestos Brakes Disc Brake Caliper FRC11954
Raybestos Brakes Disc Brake Caliper FRC11954 - view 2
Raybestos Brakes Disc Brake Caliper FRC11954 - view 3
Raybestos Brakes Disc Brake Caliper FRC11954 - view 4
Raybestos Brakes Disc Brake Caliper FRC11954 - view 5

Front Right Brake Caliper for 2007-2017 Jeep Patriot & More - Raybestos FRC11954

Be the first to review this product
$141.99
WARNING:California Proposition 65▾
MPN: FRC11954
UPC: 829352635049
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert

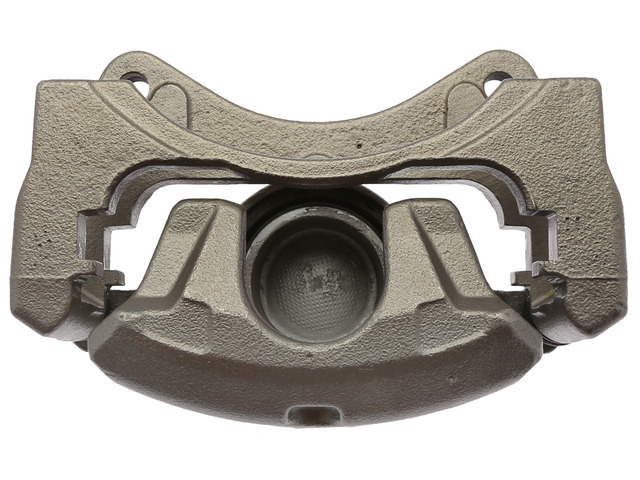

Raybestos Brakes Disc Brake Caliper P/N:FRC11954
Raybestos Brakes Disc Brake Caliper P/N:FRC11954
$141.99

Clamp the brake pads against the rotor with the Raybestos R-Line Semi-Loaded Disc Brake Caliper and Bracket Assembly FRC11954, a front right caliper that drops in as a direct-fit replacement for the listed applications. It fits many vehicles, among them the 2007-2017 Jeep Compass, 2007-2017 Jeep Patriot and 2008-2014 Dodge Avenger; see the Buyer's Guide tab for the full list. This floating caliper is remanufactured from an OE core with all-new rubber and sealing components, then rebuilt with materials matched to OE specifications.

  • All-new sealing parts: seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new materials for leak-free operation; castings, guide pins, and brackets are inspected before reuse.
  • 100% pressure tested: every unit is pressure tested for reliable braking.
  • EPDM70 rubber components: for heat resistance, performance, and durability, with silicone boots on heavy-duty applications where applicable.
  • Semi-loaded and friction ready: includes the mounting bracket and hardware but ships without brake pads, so add your pads of choice. Single piston, 2.250 in (57.150 mm), M7x1.00 bleeder, in a coated cast-iron casting.

Sold individually for the front right position; for even, balanced braking, replacing the opposite side as a matched pair is recommended. Country of origin: Mexico.

Interchange: 18-B5033 · 99-17728B · 18-P5033 · 141.63077 · SC0208-1 · SC0208-2 · 14-1285
18B5033 · 9917728B · 18P5033 · 14163077 · SC02081 · SC02082 · 141285 · 5191238AA

This part cross-references / interchanges with the following part numbers:

18-B5033, 99-17728B, 18-P5033, 141.63077, 5191238AA, SC0208-1, SC0208-2, 14-1285

Frequently Asked Questions

Is this the right Jeep Compass brake caliper for a 2007-2017 Jeep Compass?

Yes. This front right assembly is a direct-fit replacement for the 2007-2017 Jeep Compass, and it also fits the 2007-2017 Jeep Patriot. See the Buyer's Guide tab for the full application list.

Which side of the vehicle does FRC11954 fit?

It is the front right (passenger-side) caliper and bracket assembly. Order the front left separately if you are servicing both sides.

Does it come with brake pads?

No. It is a friction-ready, semi-loaded caliper, so it ships without brake pads. It does include the mounting bracket and new abutment hardware.

Is this a remanufactured caliper?

Yes. It is a remanufactured OE unit rebuilt with all-new seals, boots, bleeder screws, banjo bolts, and O-rings, then 100% pressure tested.

Should I replace both front calipers?

It is sold individually as the front right unit. For even, balanced braking, replacing the opposite side at the same time as a matched pair is recommended, not required.
