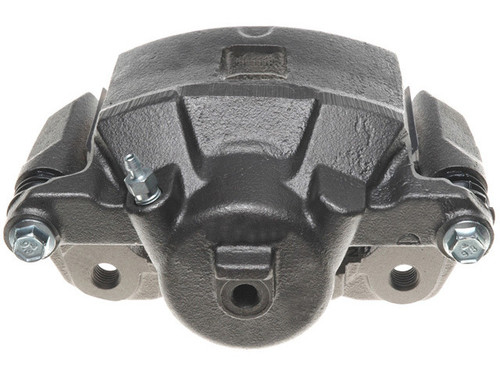

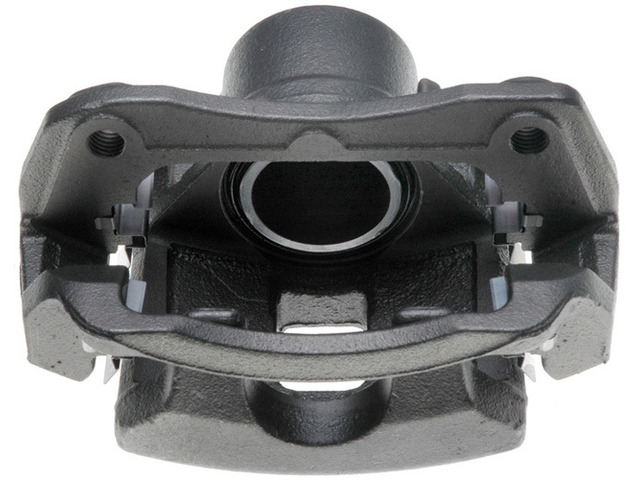

Put fresh, leak-free front-left hydraulics back on your car with the Raybestos R-Line Remanufactured Semi-Loaded Disc Brake Caliper & Bracket Assembly (MPN FRC11419) — this floating caliper houses the piston that presses the brake pads against the rotor to slow the vehicle. It drops in as a direct-fit front-left replacement for the 2003-2007 Saturn ION [All], 2005-2010 Chevrolet Cobalt [All], 2005-2006 Pontiac Pursuit [All], 2006 Pontiac Pursuit [L4-2.2L], 2007-2009 Pontiac G5 [All], and 2007-2008 Pontiac G5 [L4-2.2L].
Rebuilt for leak-free service: to help ensure leak-free operation, the seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new materials.
EPDM70 rubber: EPDM70 rubber components for superior heat resistance, performance, and durability; silicone boots are fitted on heavy-duty applications where applicable.
Inspected & tested: castings, guide pins, and brackets are carefully inspected before re-use, and every caliper is 100% pressure tested, with materials matching OE specifications.
Specs: floating-type caliper with a single 2.12 in (53.848 mm) piston, cast-iron casting, coated finish, and an M10x1.00 bleeder screw thread; the mounting bracket is included.
It's a direct-fit front-left replacement for the 2003-2007 Saturn ION, 2005-2010 Chevrolet Cobalt, 2005-2006 Pontiac Pursuit, and 2007-2009 Pontiac G5. See the Buyer's Guide tab for the engine codes.
Is this a new or remanufactured caliper?
It's a Raybestos R-Line remanufactured OE caliper. Castings, guide pins, and brackets are inspected and re-used, while seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new components.
Does it include the mounting bracket or brake pads?
Yes—the mounting bracket is included in this semi-loaded assembly. Brake pads are not listed as included; install pads as directed by the service procedure.
What is the piston size and caliper type?
It's a floating-type caliper with a single piston measuring 2.12 in (53.848 mm), a cast-iron casting, a coated finish, and an M10x1.00 bleeder screw thread.
What are signs this caliper may need replacing?
Signs may include fluid leaks at the piston or bleeder, a sticking or seized piston, and uneven pad wear. Diagnose the cause before replacing, since these symptoms can have other sources.
