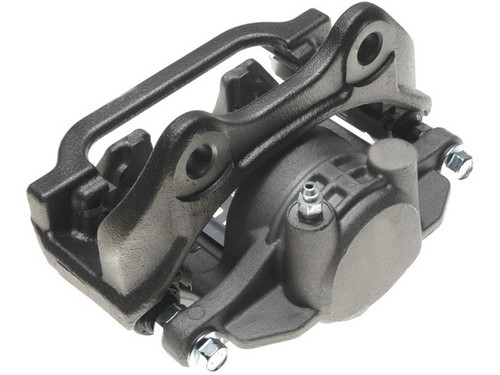

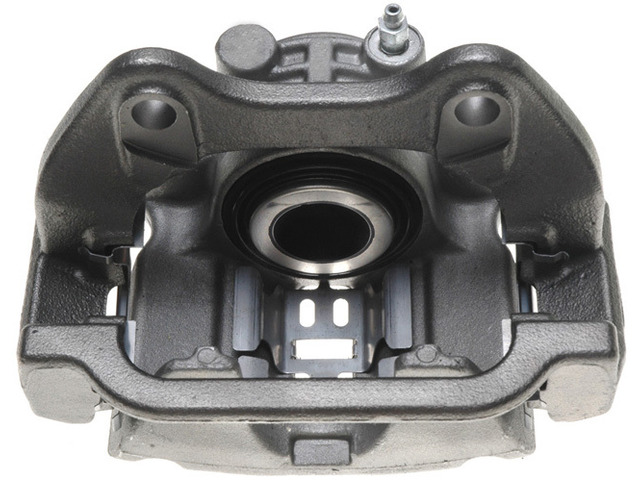

Clamp the brake pads against the rotor with the Raybestos R-Line Remanufactured Semi-Loaded Disc Brake Caliper and Bracket Assembly (FRC11360). This rear-right floating caliper installs as a direct-fit replacement for the 2003-2005 Cadillac DeVille, 2006-2011 Cadillac DTS, 2003-2006 Chevrolet Silverado 1500, 2007 Chevrolet Silverado 1500 Classic, 2003-2006 GMC Sierra 1500, and 2007 GMC Sierra 1500 Classic (all engines). Using hydraulic pressure, the caliper presses the pads against the rotor to slow the wheel; leaking brake fluid, a seized or sticking piston, uneven pad wear, or brake drag can be signs the original caliper may need replacing.
Remanufactured from OE parts: non-plated calipers rebuilt from carefully inspected castings, guide pins, and brackets, then rigorously tested for reliable braking performance.
All-new sealing components: seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new materials for leak-free operation.
EPDM70 rubber: rubber components deliver heat resistance, performance, and durability, and every unit is 100% pressure tested.
Specifications: floating caliper with an aluminum casting, a 2.126 in (54 mm) piston, and an M10x1 bleeder screw thread. Country of origin: Mexico.
Materials match OE specifications and vehicle-specific designs.
It fits the rear-right position on the 2003-2005 Cadillac DeVille, 2006-2011 Cadillac DTS, Chevrolet Silverado 1500, and GMC Sierra 1500. See the Buyer's Guide tab for the full year list.
Which side is this caliper for?
This is the rear-right caliper; the opposite rear-left corner uses a different part number.
Are brake pads included?
It's a semi-loaded caliper and bracket assembly supplied with new abutment hardware, seals, boots, and bleeder screws; brake pads are not included.
What are signs the caliper may need replacing?
Leaking brake fluid at the caliper, a seized or sticking piston, uneven brake pad wear, or brake drag can indicate a failing caliper. Diagnose the cause before replacing.
What is the piston size and where is it made?
It has a floating design with a 2.126 in (54 mm) piston and an M10x1 bleeder screw thread. Country of origin: Mexico.
