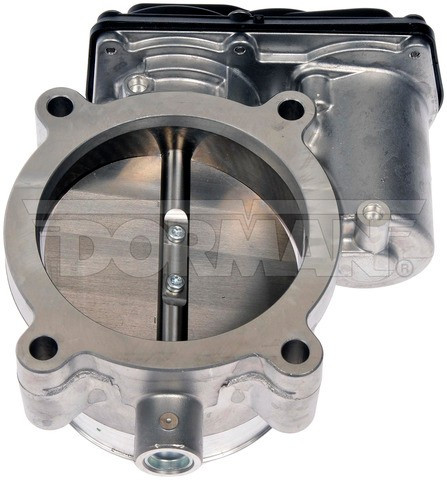

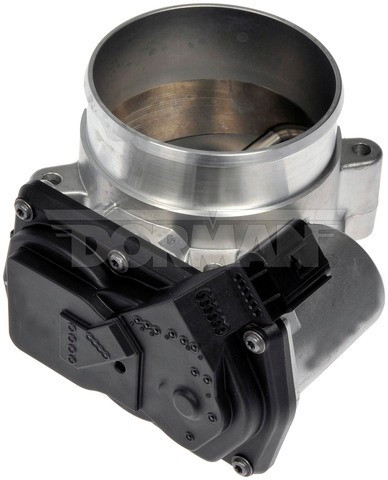

Dorman 977-594 fuel injection throttle body for the 2011-2014 Ford F-150 V8 5.0L and other vehicles regulates the air that flows into the engine. Original electronic throttle bodies often fail from moisture and oil intrusion and wear on internal electronics.
- Dorman OE FIX upgraded design aimed at the failures seen in original throttle bodies
- Contactless Hall effect sensor to prevent future failures
- Proprietary Sensor Shield seal on the butterfly shaft
- 100% new case aluminum construction
- Complies with FMVSS and is endurance-proven with more than one million test cycles
Quick facts
- Part: Dorman 977-594 fuel injection throttle body
- Fits: 2011-2014 Ford F-150 V8 5.0L and other vehicles
- Material: Aluminum
- Condition: New
A rough idle, slow response when you press the pedal or a check engine light can mean the throttle body is wearing out. These signs alone do not prove it is the problem, since a vacuum leak can produce similar symptoms.
Fits
This throttle body fits the 2011-2014 Ford F-150 V8 5.0L and the 2011-2014 Ford Mustang V8 5.0L.
Specifications
Fit and size
- Bore diameter: 3.226 in
- Quantity per vehicle: 1
- Terminal count: 6
- Electrical connection: female blade
Build and materials
- Throttle body type: electronic
- Fuel system type: gas
- Housing material: aluminum
- Throttle position sensor: included
- Condition: new
- Country of origin: China
In the box
One fuel injection throttle body with its throttle position sensor. This listing holds one throttle body, and each of the 2011-2014 Ford F-150 V8 5.0L and the 2011-2014 Ford Mustang V8 5.0L takes one. A gasket or seal, installation hardware, fuel injectors, an idle air control motor and a throttle body spacer are not included, so plan on new fasteners.
Installation notes
- Plug-and-play replacement.
- Vehicle try-on tested.
Interchange: 6E-6024 · 67-6024
APTHB085 · S20083 · RTB1062 · NTB1062 · BR3Z9E926A · BR3Z9E926B · BR3Z9E926C · TB46 · TB1148 · A2C59519707Z · V25810023
This part cross-references / interchanges with the following part numbers:
APTHB085, S20083, RTB1062, NTB1062, 6E-6024, 67-6024, BR3Z9E926A, BR3Z9E926B, BR3Z9E926C, TB46, TB1148, A2C59519707Z, V25810023
Frequently Asked Questions
Is this Dorman fuel injection throttle body a plug-and-play fit on the 2011-2014 Ford F-150 V8 5.0L?
Yes. Dorman 977-594 is a plug-and-play replacement for the 2011-2014 Ford F-150 V8 5.0L, and the 2011-2014 Ford Mustang V8 5.0L takes it too.
Which parts come with the Dorman 977-594 throttle body, and what is left out?
Dorman 977-594 includes the throttle position sensor. A gasket or seal and installation hardware are not included.
What is the bore diameter of this throttle body?
The bore diameter is 3.226 inches. The electrical connection is a 6-terminal female blade connector.
How can I tell an electronic throttle body is wearing out?
A rough idle, slow throttle response or a check engine light can be signs of a failing throttle body. A shop can test it with a scan tool.
What does the Sensor Shield seal on this throttle body do?
Sensor Shield is a proprietary seal on the butterfly shaft. Together with the contactless Hall effect sensor, it is intended to prevent future failures.
