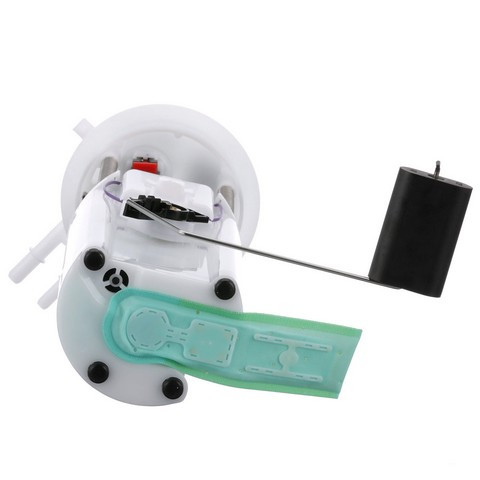

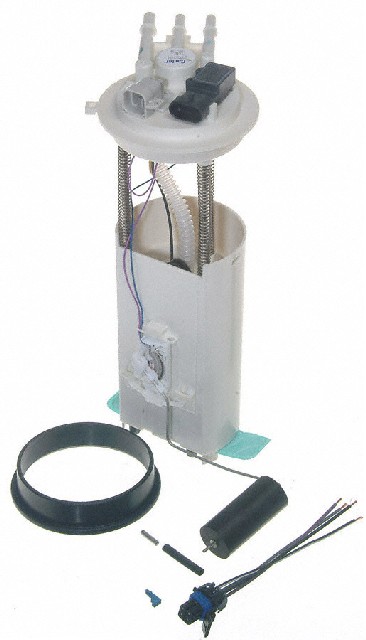

Carter P74834M fuel pump module for the 1998-2005 Chevrolet Blazer V6 4.3L and other vehicles moves gasoline from the tank toward the engine. Also called a fuel pump assembly, it sits in the tank and includes the fuel sending unit.
- Made with all new materials under quality-controlled manufacturing and testing procedures
- Fuel sensor design resists corrosive fuel blends and additives
- POM housing with an external inlet strainer
- Nitrile rubber gasket or seal included
Quick facts
- Part: Carter P74834M fuel pump module
- Also called: fuel pump assembly
- Fits: 1998-2005 Chevrolet Blazer V6 4.3L and other vehicles
- Material: POM (housing)
- Condition: New
A failing module can show up as hard starting, stalling or a fuel gauge that reads wrong. Before you replace it, rule out a blown fuse, a faulty relay and damaged wiring, since a weak fuel supply can start there too, and have a shop test the fuel pressure.
Fits
This module fits the 1998-2005 Chevrolet Blazer V6 4.3L, the 1998-2004 GMC Jimmy V6 4.3L and the 1998-2001 Oldsmobile Bravada V6 4.3L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Housing length: 217 mm (8.54 in)
- Housing width: 114 mm (4.49 in)
- Height: 11.1 in
- Inlet and outlet fitting thread size: 3/8 - 16
- Outlet outside diameter: 0.37 in

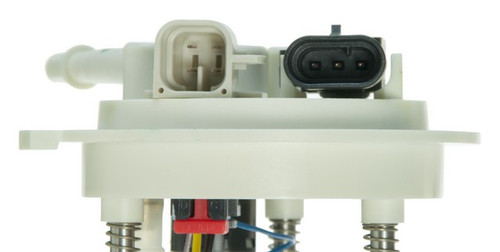

- Connector: oval, male, white, 1 connector
Build and materials
- Fuel type: gas
- Housing material: POM
- Inlet strainer: external
- Gasket or seal: nitrile rubber, included
- Condition: New
- Country of origin: Mexico
In the box
One fuel pump module with the fuel sending unit and a gasket or seal. This listing is one module, and the vehicle takes one. The lock ring, mounting hardware, anti-rattle spring and fuel tank pressure sensor are not included, so plan on new mounting hardware rather than reusing the old.
Frequently Asked Questions
Is the Carter P74834M the right fuel pump module for a 1998-2004 GMC Jimmy V6 4.3L?
Yes. Carter P74834M fits the 1998-2004 GMC Jimmy V6 4.3L, and that vehicle takes one module.
Does the Carter P74834M fit the 1998-2001 Oldsmobile Bravada V6 4.3L?
Yes. Carter P74834M is listed for the 1998-2001 Oldsmobile Bravada V6 4.3L, with one module per vehicle.
Does the Carter P74834M come with a lock ring?
No. The lock ring and mounting hardware are not included. The module comes with the fuel sending unit and a gasket or seal.
Is the inlet strainer on the Carter P74834M internal or external?
The inlet strainer is external. The inlet and outlet fittings both use 3/8 - 16 thread.
What is this fuel pump module's housing made of?
The housing is POM, and the gasket or seal is nitrile rubber. The connector is a white, oval male plug.
