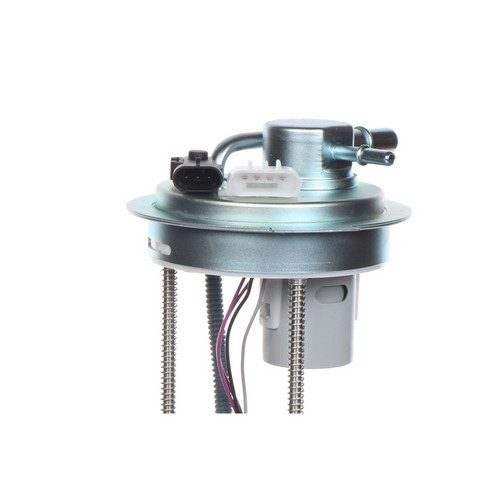

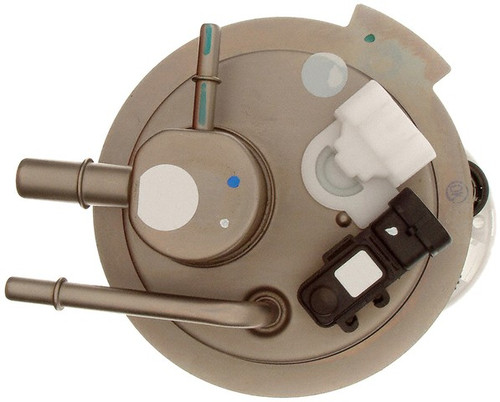

Carter P76087M fuel pump module for the 2004-2005 Chevrolet Express 2500 V8 5.3L, the 2004-2008 Express 2500 V8 4.8L or 6.0L, the 2005-2006 Express 2500 V6 4.3L and other vehicles moves fuel from inside the tank to the engine. This in-tank module is a standard-replacement grade, negative-ground assembly made for OE fit, form and function.
- Fuel sending unit and fuel tank pressure sensor included
- Fuel sensor design resists corrosive fuel blends and additives
- Internal inlet strainer and a single outlet with a 3/8 - 16 thread
- POM housing with a nitrile rubber seal included
- Made with all new materials under quality-controlled manufacturing and testing
Quick facts
- Part: Carter P76087M fuel pump module
- Also called: fuel pump assembly
- Fits: the 2004-2005 Chevrolet Express 2500 V8 5.3L, the 2004-2008 Express 2500 V8 4.8L or 6.0L, the 2005-2006 Express 2500 V6 4.3L and other vehicles
- Material: POM housing
- Condition: New
Hard starting, stalling under load or a fuel gauge that reads wrong can mean a worn pump or sending unit. These signs alone do not prove the module is at fault; a worn fuel pump relay is another common cause.
Fits
The 2004-2005 GMC Savana 2500 V8 5.3L, the 2004-2008 Savana 2500 V8 4.8L or 6.0L and the 2005-2006 Savana 2500 V6 4.3L also fit this module, along with many more vehicles. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting: in tank
- Height: 13.86 in
- Outlet: 1, with a 3/8 - 16 thread
- Outlet outside diameter: 0.37 in
- Electrical connectors: 2, oval, male
- Sending unit resistance: 7.9 ohms empty, 9.49 ohms full
Build and materials
- Housing material: POM
- Seal material: nitrile rubber
- Inlet: internal strainer
- Fuel type: gas
- Grade: standard replacement
- Condition: New
- Country of origin: Mexico
In the box
One fuel pump module with its fuel sending unit and seal. A lock ring, mounting hardware and an anti-rattle spring are not included, so plan on new hardware rather than reusing old pieces. This listing holds one module, and these vehicles take one.
Interchange: 530-2275
2920525 · MU1436 · E3678M · 66074 · 238329 · M3480498 · P76838M · FG0399 · RE0912S · 830791 · 19133519 · 19303380 · 19331939 · 88965414 · C0246M · A30008 · PN3113 · SP61435M · TU466 · D11111067TG · USEP3678M
This part cross-references / interchanges with the following part numbers:
2920525, MU1436, E3678M, 66074, 238329, M3480498, P76838M, FG0399, RE0912S, 830791, 530-2275, 19133519, 19303380, 19331939, 88965414, C0246M, A30008, PN3113, SP61435M, TU466, D11111067TG, USEP3678M
Frequently Asked Questions
Does the Carter P76087M fit a 2004-2005 GMC Savana 2500 V8 5.3L?
Yes. Carter P76087M fits the 2004-2005 GMC Savana 2500 V8 5.3L. Open the "Vehicles it fits" section to check another model or engine.
Does this Carter fuel pump module come with a lock ring?
No. Carter P76087M comes with a seal but no lock ring, mounting hardware or anti-rattle spring.
What size is the outlet on this fuel pump module?
The module has one outlet with a 3/8 - 16 thread and a 0.37 in outside diameter.
Is this fuel pump assembly sold with the fuel sending unit?
Yes. This module includes the fuel sending unit and a fuel tank pressure sensor, along with a nitrile rubber seal.
What are the empty and full resistance values of this sending unit?
The fuel sending unit is rated 7.9 ohms at empty and 9.49 ohms at full. A shop can compare a gauge reading against these figures.
