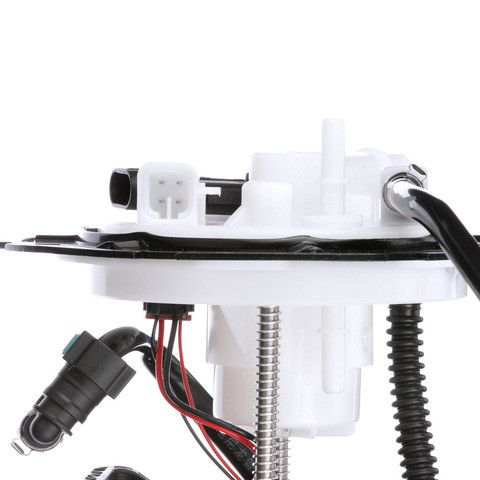

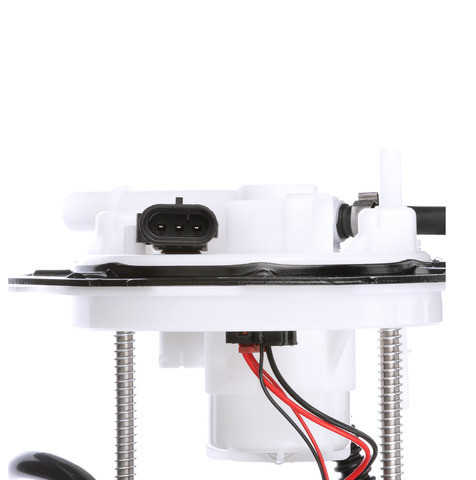

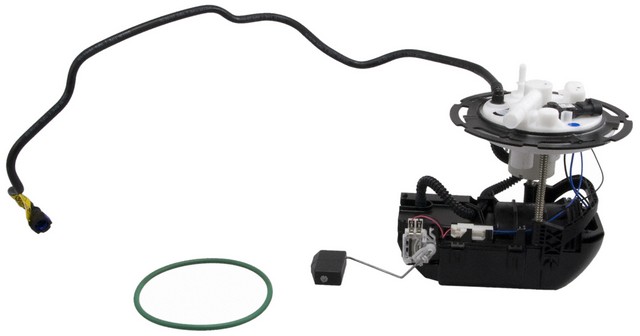

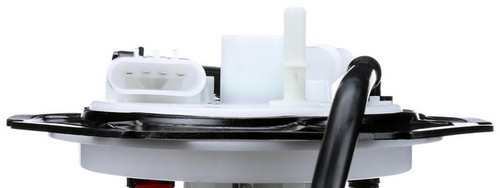

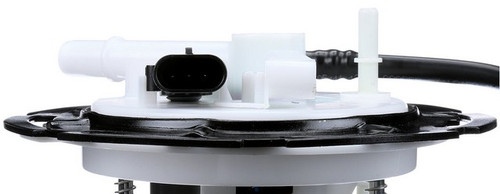

Carter P76246M fuel pump module for the 2004-2008 Chevrolet Malibu V6 3.5L, the 2006-2007 Malibu V6 3.9L, the 2008 Malibu 4-cylinder 2.4L or V6 3.6L and other vehicles delivers fuel from inside the tank to the engine. Also known as a fuel pump assembly, it mounts in the tank.
- Made with all new materials under quality-controlled manufacturing and testing procedures
- Internal strainer built into the module
- Fuel sensor design resists corrosive fuel blends and additives
- Fuel sending unit and fuel tank pressure sensor included
Quick facts
- Part: Carter P76246M fuel pump module
- Also called: fuel pump assembly
- Fits: 2004-2008 Chevrolet Malibu V6 3.5L, the 2006-2007 Malibu V6 3.9L, the 2008 Malibu 4-cylinder 2.4L or V6 3.6L and other vehicles
- Material: POM housing
- Condition: New
Hard starting, stalling or a loss of power under load can mean the module is worn, though a clogged fuel filter or a faulty fuel pump relay can produce those symptoms too.
Fits
Besides the Malibu, it fits the 2005-2008 Pontiac G6 V6 3.5L, the 2006-2008 G6 4-cylinder 2.4L or V6 3.9L and the 2007-2008 G6 V6 3.6L, and the 2007-2008 Saturn Aura V6 3.5L or 3.6L and the 2008 Aura 4-cylinder 2.4L. Each of them takes a single module.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting: in tank
- Height: 7.09 in
- Inlet type: port
- Inlet fitting thread size: 3/8 - 16
- Outlet fitting thread size: 5/16 - 18
- Outlet outside diameter: 0.37 in
- Outlet quantity: 1
- Connectors: 2, oval, male, black/white
Build and materials
- Type: module assembly, standard replacement grade
- Housing material: POM
- Gasket or seal material: rubber
- Strainer: internal
- Resistance, full: 9.49 ohms
- Negative ground: yes
- Condition: new
- Country of origin: Mexico
In the box
One fuel pump module with its rubber seal. Mounting hardware and a lock ring are not included, so plan on new ones rather than reusing the old.
Interchange: 530-2265
2920499 · MU1642 · E3591MN · 1234742 · M3480497 · FG1384 · 10376291 · 19179818 · 19179819 · 22717995 · 22728631 · D0229M · A43013 · PN3119 · SP6602M · TU463 · D21111051TG · USEP3591M
This part cross-references / interchanges with the following part numbers:
2920499, MU1642, E3591MN, 1234742, M3480497, FG1384, 530-2265, 10376291, 19179818, 19179819, 22717995, 22728631, D0229M, A43013, PN3119, SP6602M, TU463, D21111051TG, USEP3591M
Frequently Asked Questions
Does this Chevy Malibu fuel pump module fit the 2006-2007 Malibu V6 3.9L?
Yes. Carter P76246M fits the 2006-2007 Chevrolet Malibu V6 3.9L, and the 2004-2008 Malibu V6 3.5L as well.
Does the Carter P76246M module come with a lock ring?
No. Mounting hardware and a lock ring are not included with Carter P76246M. It comes with a rubber seal, a fuel sending unit and a fuel tank pressure sensor.
What thread sizes are the inlet and outlet fittings on this fuel pump module?
The inlet fitting thread is 3/8 - 16 and the outlet fitting thread is 5/16 - 18. The outlet outside diameter is 0.37 inch.
Does the fuel sensor on this Carter module resist corrosive fuel blends?
Yes. The fuel sensor design resists corrosive fuel blends and additives.
Is 530-2265 an interchange number for Carter P76246M?
Yes. 530-2265 is on the interchange list for Carter P76246M, along with the other numbers printed at the bottom of the page.
