Carter P76336M fuel pump module for the 2005-2008 Ford F-150 V8 4.6L or 5.4L and other vehicles pumps gasoline from the tank toward the engine. Also called a fuel pump assembly, it is a standard-replacement-grade module with a single outlet.
- Made with all new materials under quality-controlled manufacturing and testing procedures

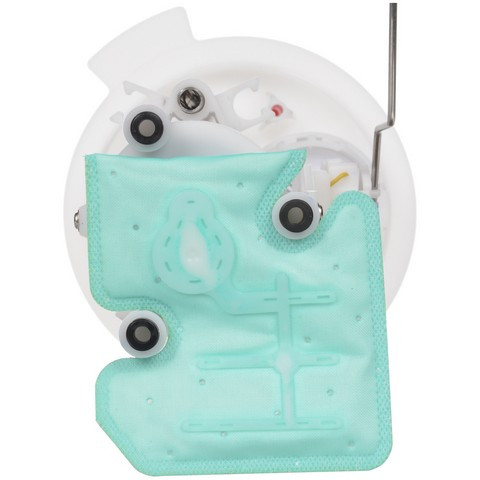

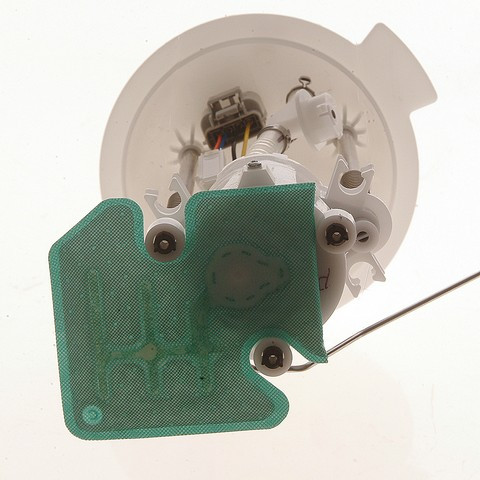

- External strainer on the pump inlet
- Fuel sensor design resists corrosive fuel blends and additives

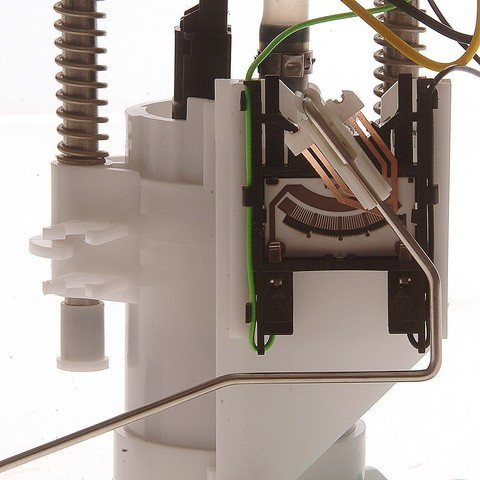

- Fuel sending unit included
- Rubber gasket or seal included
Quick facts
- Part: Carter P76336M fuel pump module
- Also called: fuel pump assembly
- Fits: 2005-2008 Ford F-150 V8 4.6L or 5.4L and other vehicles
- Condition: New
Hard starting, stalling, sputtering under load or a fuel gauge that reads wrong can mean this module is worn, though a clogged fuel filter or a failed fuel pump relay can produce similar signs, so find the cause before you replace anything. A fuel system shop can test the pump.
Fits
This module is a direct-fit replacement for the 2005-2008 Ford F-150 V8 4.6L or 5.4L and the 2006-2008 Lincoln Mark LT V8 5.4L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet fitting thread size: 3/8 - 16
- Outlet fitting thread size: 5/16 - 18
- Outlets: 1
- Connector: 1, male, rectangular, white
Build and materials
- Condition: New
- Fuel type: Gas
- Inlet type: external strainer
- Gasket or seal material: rubber
- Negative ground: Yes
- Country of origin: Mexico
In the box
One fuel pump module. This listing holds one module, and each vehicle takes one. Mounting hardware, a lock ring, an anti-rattle spring and a fuel tank pressure sensor are not included, so plan on new hardware rather than reusing the old.
Interchange: 5L3Z 9H307-BB · 6L3Z 9H307-B · 7L3Z 9H307-B · 8L3Z 9H307-B · 525-2240
2920489 · E2533M · 1234701 · M2496152 · FG0846 · 830149 · PFS494 · C0132M · A30002 · PN3123 · SP2070M · 150132 · D12111057TG · USEP2533M
This part cross-references / interchanges with the following part numbers:
2920489, E2533M, 1234701, M2496152, FG0846, 830149, 5L3Z 9H307-BB, 6L3Z 9H307-B, 7L3Z 9H307-B, 8L3Z 9H307-B, 525-2240, PFS494, C0132M, A30002, PN3123, SP2070M, 150132, D12111057TG, USEP2533M
Frequently Asked Questions
Does the Carter P76336M fuel pump module fit the 2006-2008 Lincoln Mark LT V8 5.4L?
Yes. Carter P76336M fits the 2006-2008 Lincoln Mark LT V8 5.4L, and each vehicle takes one module.
Does this fuel pump module come with a lock ring or mounting hardware?
No. The lock ring and mounting hardware are not included. The module comes with a rubber gasket or seal and the fuel sending unit.
What are the fitting thread sizes on this fuel pump module?
The inlet fitting thread size is 3/8 - 16 and the outlet fitting thread size is 5/16 - 18. The module has one outlet.
Can a wrong fuel gauge reading be related to the sending unit in this module?
Yes. Carter P76336M includes the fuel sending unit, so a gauge that reads wrong can be related to this module. A fuel system shop can test it.
Does the Carter P76336M replace number 5L3Z 9H307-BB?
Yes. 5L3Z 9H307-BB is one of the interchange numbers this Carter P76336M replaces, and it is printed on the Interchange line.
