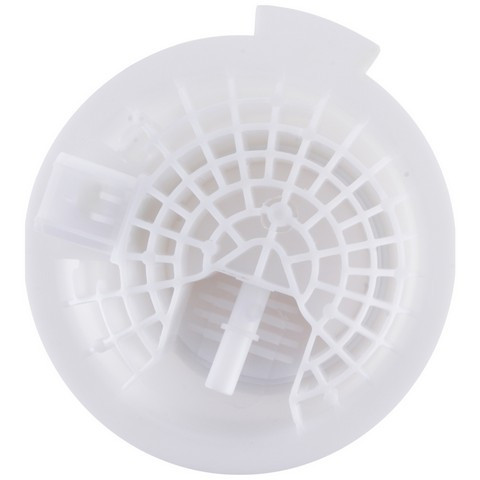

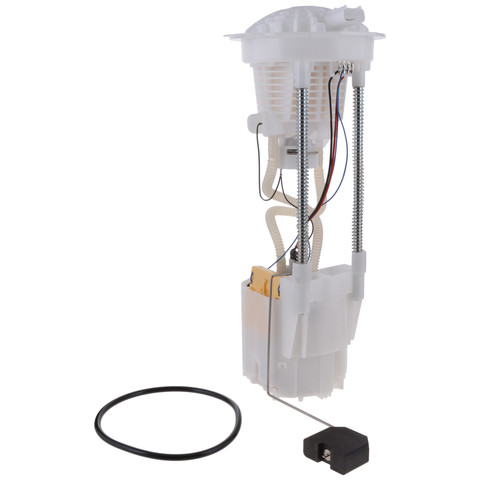

Carter P76841M fuel pump module for the 2004-2006 Dodge Ram 1500 3.7L / 4.7L / 5.7L and other vehicles is an in-tank electric fuel pump assembly that includes the fuel sending unit. It delivers fuel from the tank and reports the fuel level to the gauge.
- Made with all new materials under quality-controlled manufacturing and testing procedures.
- Built for OE fit, form and function.
- The fuel sensor design resists corrosive fuel blends and additives.
- On most applications, accessories such as tank seals, patented high-gradient density strainers and wiring harnesses are included.
Hard starting, an engine that sputters or stalls, or a fuel gauge that reads wrong can mean the pump or sending unit is wearing out. A blown fuse, a faulty relay or a damaged wire can be behind those signs too, so find the cause before you buy. If the module is at fault, this one replaces it.
It fits the 2004-2006 Dodge Ram 1500 with the V6-3.7L, V8-4.7L or V8-5.7L; the 2004-2007 Dodge Ram 2500 with the V8-4.7L, or the V8-5.7L in 2005-2007; and the 2005-2007 Dodge Ram 3500 with the V8-5.7L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting: in tank
- Outlet quantity: 1
- Outlet outside diameter: 0.37 in
- Height: 14.25 in

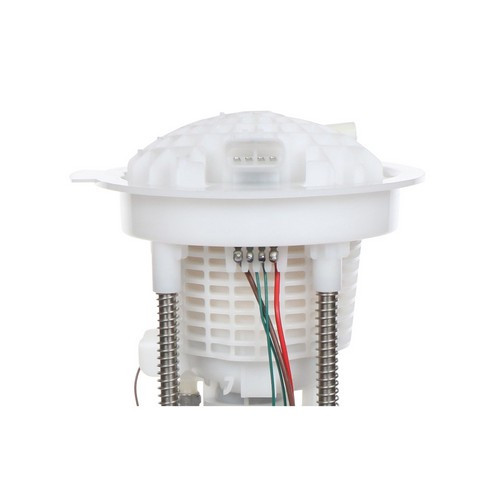

- Connector: 1, white, oval, female
Build and materials
- Housing material: Plastic
- Gasket or seal material: Rubber
- Fuel sending unit: included
- Country of origin: China
In the box
This listing holds one module assembly with the fuel sending unit and a rubber gasket or seal, and each truck takes one. Mounting hardware, a lock ring, an anti-rattle spring and a fuel tank pressure sensor are not included, so plan on new mounting hardware.
Interchange: 953-3070 · 520-2360 · 520-2370
5134 554AA · 5134 554AB · 5134 554AC · 5134 554AD · 5134 554AE · 2920428 · E7182M · 1234760 · M635649 · FG0473 · AFS0940S · C0477M · A30466 · PN3100 · SP7023M · TU177
This part cross-references / interchanges with the following part numbers:
2920428, E7182M, 1234760, M635649, 5134 554AA, 5134 554AB, 5134 554AC, 5134 554AD, 5134 554AE, 953-3070, FG0473, AFS0940S, 520-2360, 520-2370, C0477M, A30466, PN3100, SP7023M, TU177
Frequently Asked Questions
Is Carter P76841M a Ram 1500 fuel pump module assembly for 2004-2006 trucks with the V6-3.7L, V8-4.7L or V8-5.7L?
Yes. Carter P76841M fits the 2004-2006 Dodge Ram 1500 with the V6-3.7L, V8-4.7L and V8-5.7L, and each truck takes one.
Does the Carter fuel pump module assembly include the lock ring?
No. Carter P76841M comes with the fuel sending unit and a rubber gasket or seal, but not the lock ring, mounting hardware or anti-rattle spring.
What kind of connector and outlet does P76841M have?
Carter P76841M has one white, oval, female connector and one outlet with a 0.37 in outside diameter. It mounts in the tank.
How do I know if my fuel pump module is wearing out?
Signs can include hard starting, stalling or sputtering, and a fuel gauge that reads wrong. Because the system holds pressurized fuel, a shop can test the pump and sending unit.
Does P76841M replace the 5134 554AA fuel pump module?
Yes. 5134 554AA is one of the numbers Carter P76841M replaces, along with 953-3070 and 520-2360.
