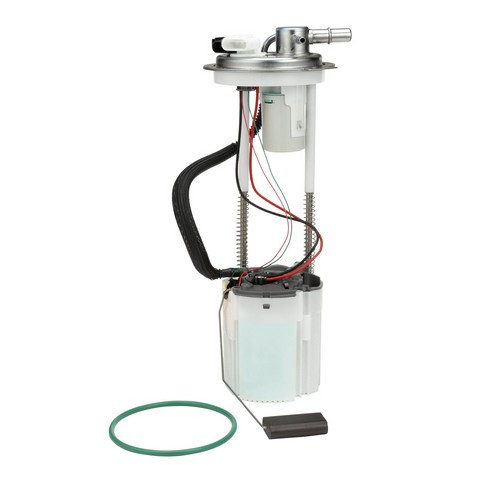

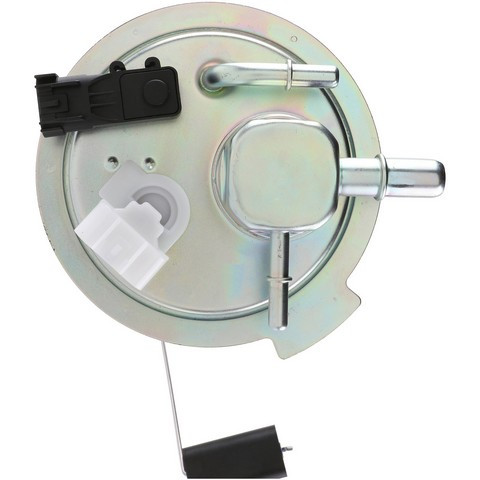

Carter P77036M fuel pump module for the 2010-2013 Chevrolet Silverado 1500 V8 4.8L, 5.3L or 6.2L and other vehicles sits in the fuel tank and sends fuel on to the engine. Also called a fuel pump assembly, it is built for gas engines.
- Made with all new materials under quality-controlled manufacturing and testing
- Fuel sensor design resists corrosive fuel blends and additives
- POM housing
- Nitrile rubber gasket or seal
Quick facts
- Part: Carter P77036M fuel pump module
- Also called: fuel pump assembly
- Fits: 2010-2013 Chevrolet Silverado 1500 V8 4.8L, 5.3L or 6.2L and other vehicles
- Material: POM housing
- Condition: New
A weak fuel pump module can show up as hard starting, sputtering under load or a fuel gauge that reads wrong. A clogged fuel filter, a blown fuse or a failed pump relay can be behind these symptoms too, so find out which part is at fault before buying.
Fits
It also fits the 2010-2013 GMC Sierra 1500 V8 4.8L, 5.3L or 6.2L. One module goes in the tank of each vehicle.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting: in tank
- Fuel type: gas
- Inlet type: port
- Outlet quantity: 1
- Outlet outside diameter: 0.37 in
- Housing width: 129 mm (5.08 in)

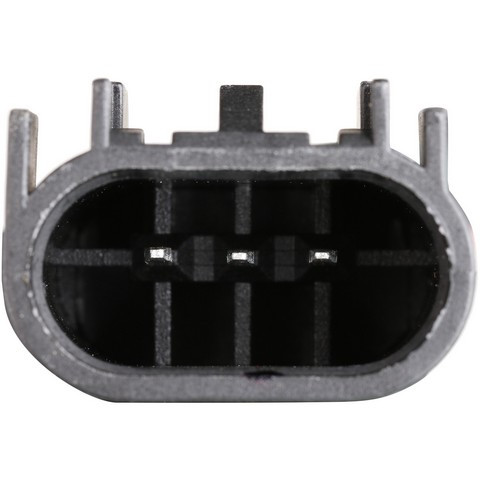

- Connectors: 2, oval, female
Build and materials
- Housing material: POM
- Gasket or seal material: nitrile rubber
- Fuel sending unit: included
- Resistance at full: 9.49 ohms
- Condition: new
- Country of origin: China
In the box
One fuel pump module with its fuel sending unit and a gasket or seal. Mounting hardware and the lock ring are not included, so plan on new ones, since the old ones may not be reusable.
Interchange: 2920737 · MU2142 · E4005M · 66121 · 1234684 · M3520903 · FG1057 · 19257095 · 19420761 · C0379M · A30495 · PN3094 · SP6619M · C21112906TG
This part cross-references / interchanges with the following part numbers:
2920737, MU2142, E4005M, 66121, 1234684, M3520903, FG1057, 19257095, 19420761, C0379M, A30495, PN3094, SP6619M, C21112906TG
Frequently Asked Questions
Is the Carter P77036M fuel pump module right for a 2010-2013 Chevrolet Silverado 1500 V8 4.8L, 5.3L or 6.2L?
Yes. Carter P77036M fits the 2010-2013 Chevrolet Silverado 1500 with the V8 4.8L, 5.3L or 6.2L engine, and one module goes in the tank.
Does the Carter P77036M include a lock ring or mounting hardware?
No. The lock ring and mounting hardware are not included. The module does come with the fuel sending unit and a gasket or seal.
What is the housing on this fuel pump module made of?
The housing is POM, and the gasket or seal is nitrile rubber. The module is an in-tank design for gas engines.
What are the signs of a failing in-tank fuel pump module?
Hard starting, sputtering or a fuel gauge that reads wrong can be signs of a weak module. A shop can test fuel pressure.
Does the Carter P77036M replace part number 2920737?
Yes. Carter P77036M replaces 2920737, which is one of the numbers on the Interchange line.
