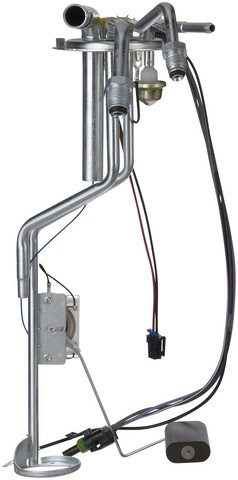

Dorman 692-074 fuel tank sending unit for the 1994-1997 Chevrolet C1500 V8 5.7L, the 1996 C1500 V6 4.3L, the 1996-1997 C1500 V8 5.0L and other vehicles reports the fuel level in the tank to the gauge. The Dorman fuel tank sending unit replaces an original unit that has failed from an internal sensor failure.
- Part of the Dorman OE Solutions line
- Sender reads 0 ohms empty and 95 ohms full

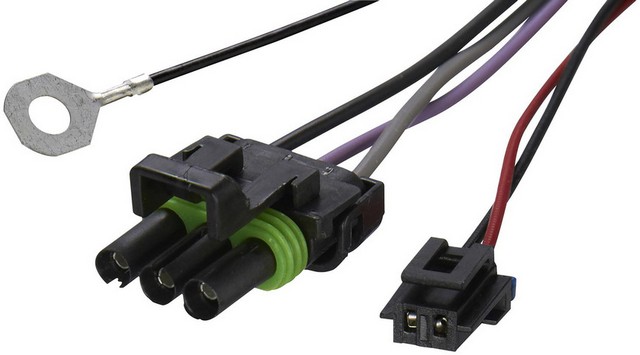

- Wiring harness included, with three bullet terminals and a flat male plug
- Sending unit only, without a fuel pump
Quick facts
- Part: Dorman 692-074 fuel tank sending unit
- Fits: the 1994-1997 Chevrolet C1500 V8 5.7L, the 1996 C1500 V6 4.3L, the 1996-1997 C1500 V8 5.0L and other vehicles
- Condition: New
A fuel gauge that reads empty with fuel in the tank, sticks at one reading or swings around can mean the sending unit's sensor has failed. A faulty gauge, a bad ground or a damaged wiring connector can show the same readings, so find the cause before buying a replacement.
Fits
This fuel tank sending unit is a direct replacement for the 1994-1997 Chevrolet K1500 V8 5.7L, the 1996 K1500 V6 4.3L, the 1996-1997 K1500 V8 5.0L and the 1994-1997 Chevrolet C3500 V8 5.7L or 7.4L, along with other Chevrolet and GMC models. Open the "Vehicles it fits" section to look up your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminal quantity: 3
- Terminal type: bullet
- Plug/connector type: flat male
- Resistance: 0 ohms empty, 95 ohms full
Build and materials
- Construction: sending unit without pump
- Wiring harness: included
- Gasket: included
- Condition: New
- Country of origin: China
In the box
One sending unit, one lock ring and one gasket; the fuel pump is not included. This listing holds one sending unit, and each vehicle takes one.
Interchange: FLS1034 · HP10001 · 25178860 · 25178861 · FG01C
This part cross-references / interchanges with the following part numbers:
FLS1034, HP10001, 25178860, 25178861, FG01C
Frequently Asked Questions
Is the Dorman 692-074 sending unit right for the 1994-1997 Chevrolet C1500 V8 5.7L?
Yes. Dorman 692-074 is listed for the 1994-1997 Chevrolet C1500 V8 5.7L, the 1996 C1500 V6 4.3L and the 1996-1997 C1500 V8 5.0L. Find other models and engines in the "Vehicles it fits" section.
Does the Dorman fuel sending unit come with a fuel pump?
No. Dorman 692-074 is a sending unit without a pump, so the fuel pump is not included. The box holds the sending unit, a lock ring and a gasket.
What resistance does this fuel tank sending unit read from empty to full?
The sender reads 0 ohms when the tank is empty and 95 ohms when it is full.
Which fuel gauge problems can mean a sending unit has failed?
A gauge that reads empty with fuel in the tank, sticks at one reading or jumps around can point to the sensor inside the unit. A shop can test the unit and its wiring.
Does this sending unit replace part number 25178860?
Yes. 25178860 is one of the cross-reference numbers listed for Dorman 692-074, so you can match it against your old unit's number.
