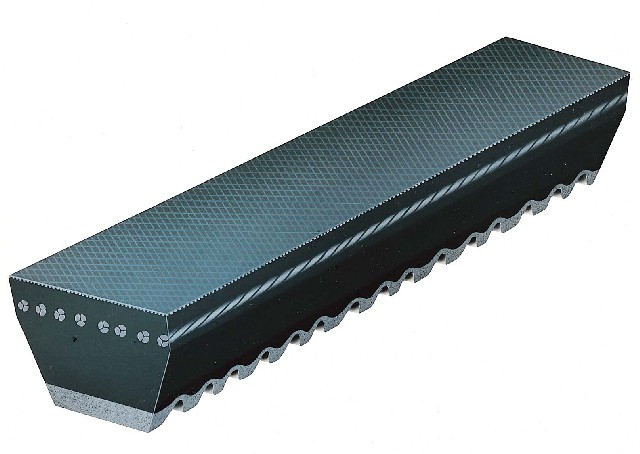

Gates TR22517 accessory drive belt for the 1999-2004 John Deere 240 Skid Steer and other vehicles and equipment carries engine power to the fan, alternator or generator, and air conditioning. It is a single-strand notched V-belt with an EPDM body.
- Green Stripe Truck and Bus Series V-belt for heavy-duty truck, bus and off-road equipment applications
- Absorbs normal shock loads without damage to the belt
- Molded notches reduce bending stress on small diameter pulleys and dissipate heat
- High modulus, high strength polyester tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications, plus RMA oil and heat resistant standards and static conductivity requirements
Quick facts
- Part: Gates TR22517 accessory drive belt
- Fits: 1999-2004 John Deere 240 Skid Steer and other vehicles and equipment
- Position: air conditioning, fan and alternator, fan and generator, fan
- Material: EPDM belt body, polyester cord
- Condition: New
A squeal from the drive, cracks or fraying on the belt, or a fan or alternator that slows under load can mean the belt is worn, though a worn pulley or a misaligned fan drive can be behind those same signs, so find the cause first. The quantity differs between applications; the 1999-2004 John Deere 240 Skid Steer takes one.
Fits
The 1999-2004 John Deere 240 Skid Steer, the 1999-2004 John Deere 250 Skid Steer and the 1999-2004 John Deere 260 Skid Steer take this belt, along with many other vehicles and equipment.
Specifications
Fit and size
- Position: air conditioning, fan and alternator, fan and generator, fan
- Cross section designation: RA
- Angle: 40°
- Top width: 15 mm (0.594 in)
- Outside circumference: 1334 mm (52.5 in)
- Effective length: 1317 mm (51.85 in)
- Strands: 1
Build and materials
- Type: Truck and Bus V-belt, notched
- Belt material: EPDM
- Cord material: polyester
- Condition: New
- Country of origin: United States
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Gates TR22517 belt fit the 1999-2004 John Deere 250 Skid Steer?
Yes. Gates TR22517 fits the 1999-2004 John Deere 250 Skid Steer and the 1999-2004 John Deere 260 Skid Steer, among many others. Look up your own machine in the "Vehicles it fits" section.
Is this Gates accessory drive belt notched?
Yes. Gates TR22517 is a single-strand belt with molded notches, an RA cross section and a 15 mm top width, built with an EPDM body and a polyester cord.
How long is the TR22517 belt?
This belt has an effective length of 1317 mm (51.85 in) and an outside circumference of 1334 mm (52.5 in).
How can I tell if this notched drive belt is worn?
Cracks or fraying in the notches or along the sides, or a squeal from the fan or alternator drive, can point to wear. Inspect it only with the engine off and cool.
Does this drive belt meet SAE standards?
Yes. Gates TR22517 meets SAE J636b and SAE J637 specifications, as well as RMA oil and heat resistant standards and static conductivity requirements.
