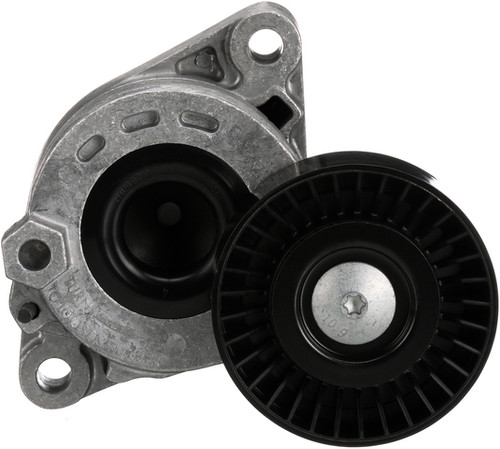

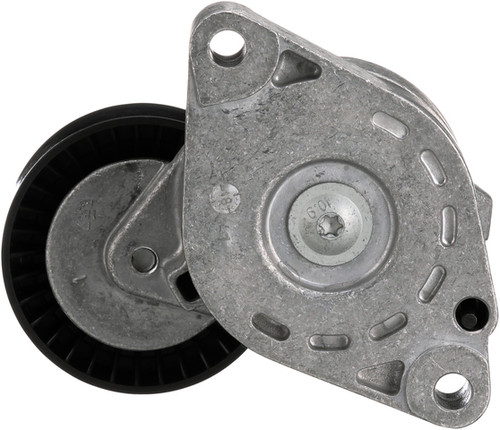

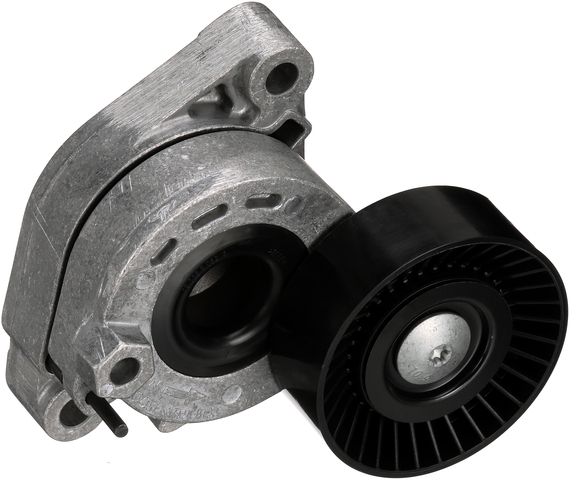

Gates 39169 belt tensioner for the 2007-2020 Mitsubishi Outlander V6 3.0L keeps the accessory drive belt under steady tension. It is an automatic tensioner that works on the alternator and air conditioning belt drive.
- DriveAlign Automatic Belt Tensioner product line from Gates
- Patented labyrinth seal protects the internal components to meet or exceed life expectancy requirements
- Patented vibration-damping system absorbs extreme vibration to improve tensioner, belt and accessory life
- Torsional round spring design for reliability and consistent tension
Quick facts
- Part: Gates 39169 belt tensioner
- Also called: serpentine belt tensioner
- Fits: 2007-2020 Mitsubishi Outlander V6 3.0L
- Position: Alternator and air conditioning
- Material: Thermoplastic
- Condition: New
Squealing or chirping from the belt, or a belt that slips, can mean this tensioner is worn, though a worn belt or a bad alternator pulley can be behind those signs too, so track down the source first. This listing is one tensioner, and the belt drive takes one.
Fits
This belt tensioner fits the 2007-2020 Mitsubishi Outlander V6 3.0L. Gates builds it to rigid tolerances and specifications for OE fit, form and function.
Specifications
Fit and size
- Position: alternator and air conditioning
- Quantity per vehicle: 1
- Outside diameter: 75 mm (2.95 in)
- Width: 25 mm (0.98 in)
- Bearing bore inside diameter: 17 mm (0.67 in)
- Mounting holes: 2
Build and materials
- Material: Thermoplastic
- Belt type: V-ribbed
- Contact surface: smooth/backside
- Pulley: 1, not flanged
- Grade: OE Exact
- Condition: New
- Country of origin: Canada
In the box
One belt tensioner assembly.
Interchange: 305680 · 4142 · 89680 · 49497 · 999557A · 1345A031 · 999557
This part cross-references / interchanges with the following part numbers:
39169, 305680, 4142, 89680, 49497, 999557A, 1345A031, 999557
Frequently Asked Questions
Does the Gates 39169 belt tensioner fit the 2007-2020 Mitsubishi Outlander V6 3.0L?
Yes. Gates 39169 is listed for the 2007-2020 Mitsubishi Outlander V6 3.0L, and the engine takes one tensioner.
Does the Gates 39169 serpentine belt tensioner come as a full assembly?
Yes. Gates 39169 comes as one tensioner assembly with a single pulley.
What are the outside diameter and width of this belt tensioner?
The outside diameter is 75 mm (2.95 in) and the width is 25 mm (0.98 in), with a 17 mm (0.67 in) bearing bore. The belt type is V-ribbed and the contact surface is smooth/backside.
How does this Gates drive belt tensioner hold belt tension?
A torsional round spring design gives consistent tension. A patented vibration-damping system absorbs extreme vibration to improve the life of the tensioner, belt and accessories.
Does Gates 39169 cross-reference to number 89680?
Yes. 89680 is one of the interchange numbers listed for Gates 39169; the rest are on the Interchange line at the bottom of the page.
