CVT Belt for 2016 Polaris Ace & More - Gates 23G4140

$137.99
Gates Automatic Continuously Variable Transmission (CVT) Belt 23G4140
Gates Automatic Continuously Variable Transmission (CVT) Belt 23G4140

Vehicles this part fits
    Part number: 23G4140
    UPC: 770075589990
    Condition: New
    Weight: 1.12 LBS
    Item Package Quantity: 1
    $137.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

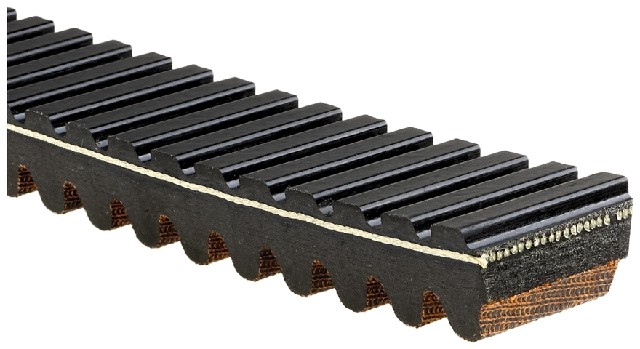

    Gates Automatic Continuously Variable Transmission (CVT) Belt P/N:23G4140
    Gates Automatic Continuously Variable Transmission (CVT) Belt P/N:23G4140
    $137.99
    $137.99

    Gates 23G4140 CVT belt for the 2016 Polaris Ace and other vehicles carries engine power between the drive and driven clutches. It is engineered for the toughest tasks and trails, with up to 2x the life of the original G-Force belt.

    • G-Force WorkHorse CVT belt line, optimized for engines under 800cc
    • Improved durability with crack and wear resistance
    • Proprietary Ethylene Elastomer (EE) compound adds axial stiffness and heat tolerance for higher loads, higher peak torque and less speed loss
    • High tensile aramid cord for acceleration, shock load resistance and fatigue resistance when hauling heavy loads over aggressive terrain

    Quick facts

    • Part: Gates 23G4140 CVT belt
    • Also called: cvt transmission belt
    • Fits: 2016 Polaris Ace and other vehicles
    • Position: Drive belt
    • Material: Ethylene Elastomer belt, Aramid cord
    • Condition: New

    Slipping, lost speed, or cracks and wear along the sides can mean a cvt transmission belt is worn, though a worn drive clutch or a sticking driven clutch can be behind them too, so find the cause before replacing the belt.

    Fits

    It fits the 2016 Polaris Ace and the 2014-2015 Polaris Sportsman Ace, and each takes one belt. Do not use it on turbocharged or heavily modified engines.

    Specifications

    Fit and size

    • Position: Drive belt
    • Quantity per vehicle: 1
    • Cross section designation: RVS-R
    • Top width: 1.25 in (32 mm)
    • Outside circumference: 42.625 in (1083 mm)
    • Angle: 26 degrees

    Build and materials

    • Construction: Double notched
    • Belt material: Ethylene Elastomer
    • Cord material: Aramid
    • Grade type: OE Performance
    • Condition: New
    • Country of origin: United States

    Interchange: 23C4140 · CTX2252 · XTX2252 · 23R4140 · UA441 · UHQ441 · UXP441

    This part cross-references / interchanges with the following part numbers:

    23C4140, 23G4140, CTX2252, XTX2252, 23R4140, UA441, UHQ441, UXP441

    Frequently Asked Questions

    Is the Gates 23G4140 CVT belt right for the 2016 Polaris Ace?

    Yes. Gates 23G4140 fits the 2016 Polaris Ace, which takes one belt.

    Will this CVT belt work on the 2014-2015 Polaris Sportsman Ace?

    Yes. The 2014-2015 Polaris Sportsman Ace is a fit for this CVT belt, and it takes one.

    What size is the Gates 23G4140 CVT belt?

    The Gates 23G4140 has a top width of 1.25 in (32 mm), an outside circumference of 42.625 in (1083 mm), a 26 degree angle and an RVS-R cross section.

    What is the Gates G-Force WorkHorse CVT belt made of?

    The belt body is a proprietary Ethylene Elastomer (EE) compound with an aramid cord. It has a double notched construction.

    Is this Gates CVT belt okay for a turbocharged or heavily modified engine?

    No. This CVT belt is not meant for turbocharged or heavily modified engine applications.
