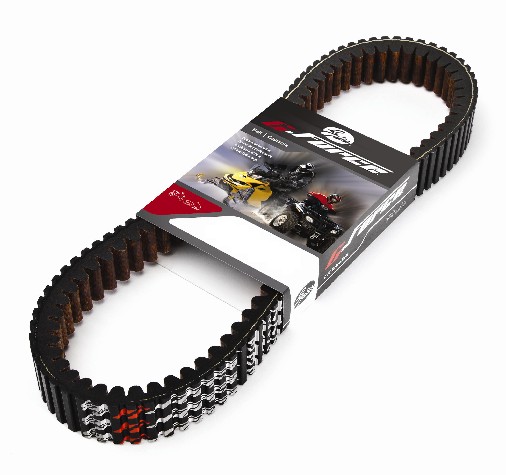

Gates 24G4108 CVT belt for the 2009-2023 Kawasaki KAF620 Mule 4000 and other vehicles carries engine power through the CVT drive. The belt is built for tough tasks and trails on engines under 800cc.
- G-Force WorkHorse CVT belt line from Gates
- Resistance to cracking and wear for durability
- Proprietary Ethylene Elastomer (EE) compound for axial stiffness and heat tolerance, with less heat fade and less speed loss
- High tensile aramid cord for acceleration, shock load resistance and extreme fatigue resistance
- Suited to hauling heavy loads across aggressive terrain
Quick facts
- Part: Gates 24G4108 CVT belt
- Also called: cvt transmission belt
- Fits: 2009-2023 Kawasaki KAF620 Mule 4000 and other vehicles
- Position: Drive belt
- Material: Ethylene Elastomer belt with aramid cord
- Condition: New
Cracks, fraying, slipping or lost speed under load can mean the belt is worn. Before you replace the belt, rule out the clutches and other drive parts as the cause of those signs.
Fits
The vehicles it fits include the 2009-2023 Kawasaki KAF620 Mule 4000, the 2009-2026 Kawasaki KAF620 Mule 4010 4X4 and the 2025-2026 Kawasaki KAT620 Mule 4000 Trans. If yours is not named here, find its year and model in the "Vehicles it fits" section. Not for use in turbocharged or heavily modified engine applications.
Specifications
Fit and size
- Position: Drive belt
- Quantity per vehicle: 1
- Top width: 1.25 in (32 mm)
- Outside circumference: 42.25 in (1073 mm)
- Cross section designation: RVS-R
Build and materials
- Type: Power Sport CVT belt
- Construction: Double notched
- Belt material: Ethylene Elastomer
- Cord material: Aramid
- Condition: New
- Country of origin: United States
In the box
One CVT belt. This listing is a single belt, and one belt is what the drive takes.
Interchange: HP2024 · HP2026 · 31GBS1072 · 24C4108 · UA439 · UA442 · UHQ442 · UXP442
This part cross-references / interchanges with the following part numbers:
24G4108, HP2024, HP2026, 31GBS1072, 24C4108, UA439, UA442, UHQ442, UXP442
Frequently Asked Questions
Does the Gates 24G4108 fit the 2009-2026 Kawasaki KAF620 Mule 4010 4X4?
Yes, the Gates 24G4108 CVT belt fits the 2009-2026 Kawasaki KAF620 Mule 4010 4X4. For other years and models, look in the "Vehicles it fits" section.
What size is the Gates 24G4108 CVT belt?
The Gates 24G4108 has a top width of 1.25 in (32 mm) and an outside circumference of 42.25 in (1073 mm). Its cross section designation is RVS-R.
Is this cvt transmission belt made for engines under 800cc?
Yes, this G-Force WorkHorse belt is optimized for engines under 800cc. It is not for turbocharged or heavily modified engine applications.
What is the G-Force WorkHorse belt made of?
The belt body is Ethylene Elastomer with an aramid cord, in a double-notched construction. The proprietary EE compound adds axial stiffness and heat tolerance.
Is the Gates 24G4108 interchangeable with UA442?
Yes, UA442 is among the other numbers the Gates 24G4108 CVT belt replaces. The full cross-reference is on the Interchange line.
