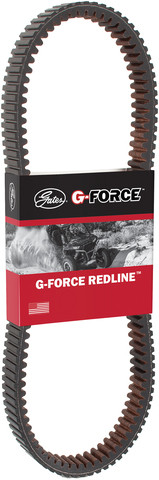

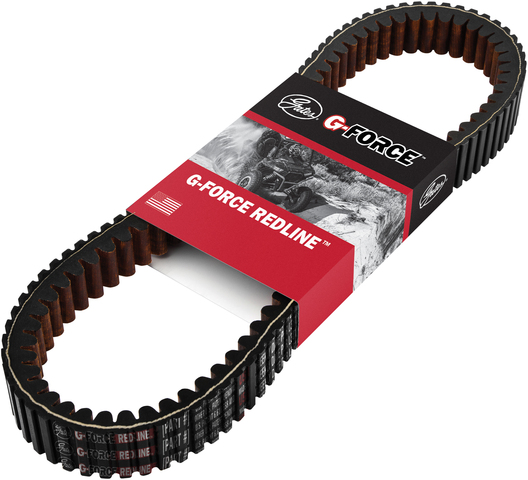

Put the power to the ground with the Gates G-Force RedLine CVT Belt (32R4588), a high-performance drive belt built for the continuously variable transmission on your side-by-side. It drops in as a direct-fit replacement for the 2011-2014 John Deere Gator XUV 825I 4X4, the 2013-2014 XUV 825I 4X4 Power Steering, the 2013-2014 XUV 825I 4X4 S4, the 2011-2014 XUV 855D 4X4 Diesel, the 2013-2014 XUV 855D 4X4 Diesel Power Steering, and the 2013-2014 XUV 855D 4X4 Diesel S4 (all engines).
Among a new generation of Gates CVT belts, the G-Force RedLine uses an innovative design intended to improve acceleration and top speed while reducing speed-ratio slip and energy loss in extreme off-road environments.
- EPDM belt on aramid cord: improved durability with crack and wear resistance for a longer-lasting, higher-performance belt in demanding use.
- Patented EE compound: the optimized Ethylene Elastomeric material maximizes axial stiffness, letting the belt run at higher continuous torques or loads.
- Heat management: greater heat resistance and recovery, even under severe duty cycles.
- Proven build: double-notched construction, tested under extreme conditions in controlled environments and on race vehicles.
This black, OE-improved RVS-R belt measures 47 in (1194 mm) outside circumference with a 33 mm top width, .537 in (13.6 mm) thickness, and a 28° angle. Made in the United States.
Interchange: 32G4588 · M158189 · 32C4588 · UA471 · UHQ471 · UXP471
This part cross-references / interchanges with the following part numbers:
32G4588, M158189, 32C4588, 32R4588, UA471, UHQ471, UXP471
