CVT Belt for 2017-2019 Yamaha VK540 VK 540 & More - Gates 40G4340

$109.99

Gates Automatic Continuously Variable Transmission (CVT) Belt 40G4340

Part number: 40G4340

UPC: 770075514336

Condition: New

Weight: 1.26 LBS

Item Package Quantity: 1

$109.99

Current Stock: 62

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

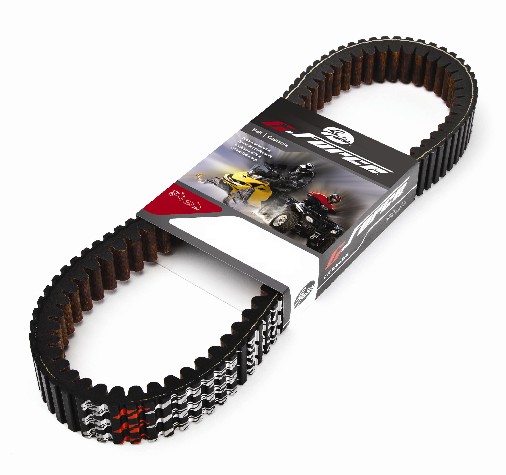

Gates Automatic Continuously Variable Transmission (CVT) Belt P/N:40G4340

$109.99

Description

Gates 40G4340 CVT belt for the 2017-2019 Yamaha VK540 VK 540 and other vehicles carries engine power between the CVT clutches. Improved crack and wear resistance gives it up to 2x the life of the original G-Force belt.

G-Force WorkHorse series, optimized for vehicles with engines under 800cc
Proprietary Ethylene Elastomer (EE) compound for axial stiffness and heat tolerance, with less heat fade and less speed loss
High tensile aramid cord for acceleration, shock load resistance and fatigue resistance under heavy loads
Double-notched belt body

Quick facts

Part: Gates 40G4340 CVT belt
Also called: cvt transmission belt
Fits: 2017-2019 Yamaha VK540 VK 540 and other vehicles
Position: Drive belt
Material: Ethylene Elastomer belt with aramid cord
Condition: New

Cracks, worn or missing notches, or lost speed under load can mean the belt is worn. Worn clutch sheaves or rollers can produce similar symptoms, so find the cause before buying a belt. Do not use this belt on turbocharged or heavily modified engines.

Fits

The 2017-2019 Yamaha VK540 VK 540, the 2018-2019 Arctic Cat Bearcat XT and the 2015-2018 Yamaha PZ50 Venture MP each take one of these belts, and it fits many other vehicles too.

Specifications

Fit and size

Position: Drive belt
Quantity per vehicle: 1
Top width: 35 mm (1.375 in)
Outside circumference: 1133 mm (44.625 in)
Cross section designation: RVS-R

Build and materials

Construction: Double notched
Belt material: Ethylene Elastomer
Cord material: Aramid
Condition: New
Country of origin: United States

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Is the Gates 40G4340 CVT belt right for the 2017-2019 Yamaha VK540 VK 540?

Yes, Gates 40G4340 fits the 2017-2019 Yamaha VK540 VK 540, which takes one belt. It fits many other vehicles too, so look up your own in the "Vehicles it fits" section.

What engine size is the G-Force WorkHorse belt made for?

Gates 40G4340 is optimized for vehicles with engines under 800cc. It is not for turbocharged or heavily modified engine applications.

How wide and how long is this cvt transmission belt?

This belt has a 35 mm (1.375 in) top width and a 1133 mm (44.625 in) outside circumference, with an RVS-R cross section.

Does this CVT belt use an aramid cord?

Yes. The cord is aramid, and the body is a proprietary Ethylene Elastomer (EE) compound in a double-notched design.

How can I tell if a double-notched CVT belt is worn out?

With the engine off and cool, look for cracks, worn or missing notches and fraying. Slipping or lost speed under load can also mean wear, and a shop can test the clutches too.
