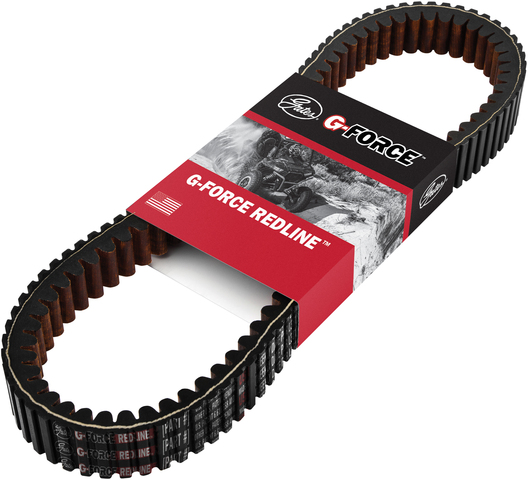

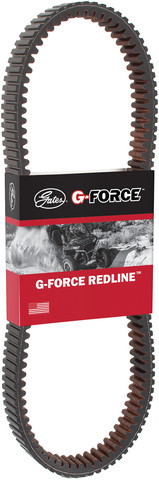

Gates 46R5289 CVT belt for the 2020 Arctic Cat Havoc and other vehicles carries engine power through the continuously variable transmission. It is also called a cvt transmission belt, and each listing is one belt.
- G-Force RedLine series, a new generation of CVT belts
- Design intended to raise acceleration and top speed and to lower speed ratio and energy loss in extreme off-road use
- Crack- and wear-resistant construction for demanding applications
- Heat resistance and recovery under severe duty cycles
- Patented compound maximizes axial stiffness so the belt can run at higher continuous torques or loads
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 46R5289 CVT belt
- Also called: cvt transmission belt
- Fits: 2020 Arctic Cat Havoc and other vehicles
- Position: drive belt
- Material: EPDM belt, aramid cord
- Condition: New
Visible cracks, fraying or worn notches, or a loss of acceleration or top speed, can mean this belt is worn, though the drive clutch or the driven clutch can be behind the same signs, so find the cause before replacing it. The CVT takes a single belt.
Fits
The belt is listed for a wide range of Arctic Cat, Textron and Tracker models, such as the 2020 Tracker SVX1000 and the 2019 Textron Havoc.
Specifications
Fit and size
- Position: drive belt
- Quantity per vehicle: 1
- Cross section designation: RVS-R
- Top width: 37 mm (1.46 in)
- Outside circumference: 1373 mm (54.066 in)
- Pitch length: 1344 mm (52.893 in)
- Pitch width: 35 mm (1.378 in)
- Thickness: 14 mm (.567 in)
Build and materials
- Type: power sport specialty high-performance CVT belt

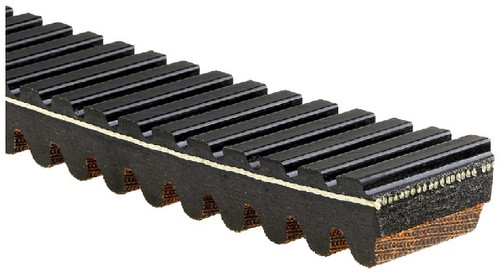

- Construction: double notched
- Belt material: EPDM
- Cord material: aramid
- Grade: OE Improved
- Condition: New
- Country of origin: United States
Interchange: 670527 · 46C5289 · 46G5289 · UA492 · UXP492
This part cross-references / interchanges with the following part numbers:
670527, 46C5289, 46G5289, 46R5289, UA492, UXP492
Frequently Asked Questions
Does the Gates 46R5289 CVT belt fit the 2019 Textron Havoc?
Yes. Gates 46R5289 is listed for the 2019 Textron Havoc. If your model is not named on this page, look it up in the "Vehicles it fits" section.
What size is the Gates 46R5289 belt?
Gates 46R5289 has a top width of 37 mm (1.46 in), an outside circumference of 1373 mm (54.066 in), a pitch length of 1344 mm (52.893 in) and a thickness of 14 mm (.567 in).
What are the belt and cord materials on this CVT belt?
The belt material is EPDM and the cord material is aramid. The construction is double notched.
What does a worn double-notched belt look like?
Cracks, fraying or worn notches you can see with the engine off, or a drop in acceleration, can be signs of a worn belt. A shop can check the rest of the drive.
Was the G-Force RedLine belt tested on race vehicles?
Yes. This belt was tested under extreme conditions in controlled environments as well as on race vehicles.
