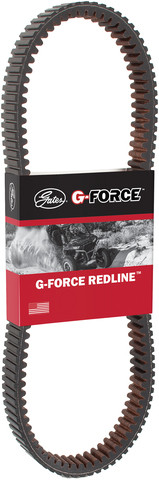

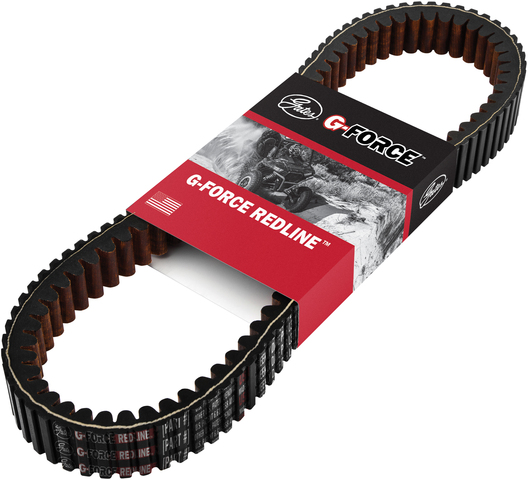

Gates 49R3982 CVT belt for the 2025 Yamaha YXE10 Wolverine RMAX2 1000 Limited and other vehicles carries engine power between the drive and driven clutches. Also called a CVT transmission belt, it is a power sport specialty high-performance belt with a double-notched build.
- G-Force RedLine design for acceleration and top speed, with less speed ratio and energy loss in extreme off-road use
- Crack- and wear-resistant construction for the most demanding applications
- Heat resistance and recovery under severe duty cycles
- Patented Ethylene Elastomeric (EE) compound maximizes axial stiffness for higher continuous torques or loads
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 49R3982 CVT belt
- Also called: cvt transmission belt
- Fits: 2025 Yamaha YXE10 Wolverine RMAX2 1000 Limited and other vehicles
- Position: Drive belt
- Material: EPDM
- Condition: New
Visible cracks, fraying or glazed sides on the belt, or slipping and slow acceleration, can mean it is worn out. Before you replace it, rule out the clutches: a worn or sticking clutch can leave the vehicle slipping or slow to pull as well. Inspect the belt with the engine off and cool.
Fits
The 2025 Yamaha YXE10 Wolverine RMAX2 1000 Limited, the 2025 Yamaha YXE10 Wolverine RMAX2 1000 R-Spec and the 2025 Yamaha YXE10 Wolverine RMAX2 1000 Sport all take this belt, and so do other vehicles. It is a direct-fit replacement for these vehicles.
Specifications
Fit and size
- Position: drive belt
- Quantity per vehicle: 1
- Cross section designation: RVS-R
- Top width: 38 mm (1.491 in)
- Thickness: 14.8 mm (0.582 in)
- Outside circumference: 1041.3 mm (40.995 in)
- Pitch length: 1011.5 mm (39.821 in)
- Pitch width: 36 mm (1.409 in)
- Angle: 28
Build and materials
- Type: power sport specialty high-performance CVT belt

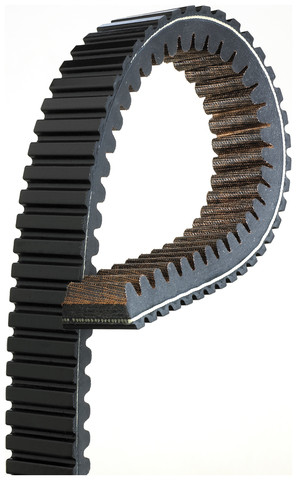

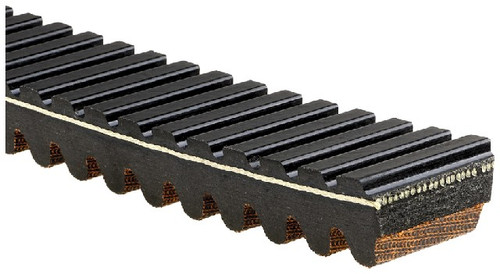

- Construction: double notched
- Belt material: EPDM
- Cord material: aramid
- Grade type: OE Improved
- Condition: new
- Country of origin: United States
In the box
One CVT belt. The application needs a single belt, so one listing covers it.
Interchange: B4J-17641-00 · B4J-17641-00-00
DBYAB4JEX · MMYAB4J · WBBYAB4J
This part cross-references / interchanges with the following part numbers:
DBYAB4JEX, MMYAB4J, WBBYAB4J, 49R3982, B4J-17641-00, B4J-17641-00-00
Frequently Asked Questions
Does the Gates 49R3982 CVT belt fit the 2025 Yamaha YXE10 Wolverine RMAX2 1000 R-Spec?
Yes, the Gates 49R3982 fits the 2025 Yamaha YXE10 Wolverine RMAX2 1000 R-Spec. If your vehicle is not one named here, look it up by year and model in the "Vehicles it fits" section.
What size is the Gates 49R3982 CVT belt?
The Gates 49R3982 has a top width of 38 mm (1.491 in), a thickness of 14.8 mm (0.582 in) and an outside circumference of 1041.3 mm (40.995 in).
What is the Gates G-Force RedLine CVT belt made of?
This CVT belt is made of EPDM with an aramid cord. It has a double-notched construction.
How do I inspect a CVT belt for wear?
With the engine off and cool, look for cracks, fraying and glazed or worn sides. If you find damage or the vehicle slips, have the belt replaced promptly or looked at by a shop.
Was the Gates G-Force RedLine CVT belt tested under extreme conditions?
Yes. This belt went through testing in controlled extreme-condition environments and on race vehicles.
