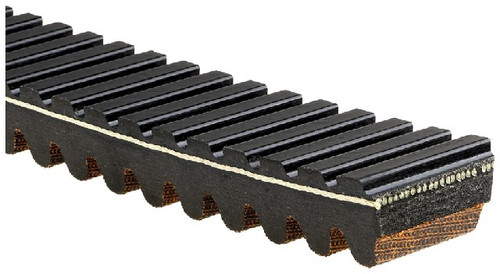

Gates 48R4867 CVT belt for the 2023-2025 Arctic Cat Wildcat XX Black Hills Edition and other vehicles carries engine power between the pulleys of a continuously variable transmission. Its design is intended to give better acceleration, higher top speeds and less speed ratio and energy loss in extreme off-road use.
- Gates G-Force RedLine CVT belt, the first of a new generation of CVT belts
- Double notched EPDM belt with aramid cord
- Patented compound that maximizes axial stiffness so the belt can run at higher continuous torques or loads
- Crack- and wear-resistant construction with improved durability for demanding applications
- Greater heat resistance and recovery under severe duty cycles
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 48R4867 CVT belt
- Also called: cvt transmission belt
- Fits: 2023-2025 Arctic Cat Wildcat XX Black Hills Edition and other vehicles
- Position: Drive belt
- Material: EPDM belt with aramid cord
- Condition: New
A worn belt can show up as slipping, weak acceleration, or cracks and fraying you can see with the engine off and cool. Worn clutch sheaves or rollers can be behind those signs too, so find the cause before buying a new belt. Also called a cvt transmission belt, this one is sold individually, and the CVT drive on each vehicle takes one.
Fits
The vehicles it fits include the 2022-2025 Arctic Cat Wildcat XX LTD and the 2022-2024 Arctic Cat Wildcat XX SE. If your machine is a different year or model, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: drive belt
- Quantity per vehicle: 1
- Cross section designation: RVS-R
- Top width: 38 mm (1.482 in)
- Pitch width: 36 mm (1.406 in)
- Pitch length: 1236 mm (48.666 in)
- Outside circumference: 1266 mm (49.84 in)
- Thickness: 15.9 mm (.627 in)
Build and materials
- Type: power sport specialty high performance CVT belt
- Construction: double notched
- Belt material: EPDM
- Cord material: aramid
- Condition: new
- Country of origin: United States
Interchange: 0823-529 · DBTX3529B-AT
DBTX3529B · 48C4867 · 48G4867 · UA489 · UXP489
This part cross-references / interchanges with the following part numbers:
0823-529, DBTX3529B, DBTX3529B-AT, 48C4867, 48G4867, 48R4867, UA489, UXP489
Frequently Asked Questions
Does this Gates CVT belt fit the 2022-2025 Arctic Cat Wildcat XX LTD?
Yes, Gates 48R4867 fits the 2022-2025 Arctic Cat Wildcat XX LTD, and the vehicle takes one belt. For other years or models, look up your vehicle in the "Vehicles it fits" section.
What are the dimensions of the Gates G-Force belt 48R4867?
The Gates 48R4867 has a 38 mm top width, 36 mm pitch width, 1236 mm pitch length and 1266 mm outside circumference. Thickness is 15.9 mm and the cross section designation is RVS-R.
What material is the Gates RedLine belt made of?
This CVT belt has an EPDM belt body with an aramid cord. It is a double notched construction.
How can I tell a Gates G-Force CVT belt is worn out?
Look for cracks or fraying with the engine off and cool, and watch for slipping or weak acceleration while driving. A shop can test the clutches if the belt itself looks fine.
Is 48G4867 a cross-reference for the Gates 48R4867 CVT belt?
Yes, 48G4867 is listed as an interchange number for Gates 48R4867. It is one of the cross-reference numbers on the Interchange line of this page.
