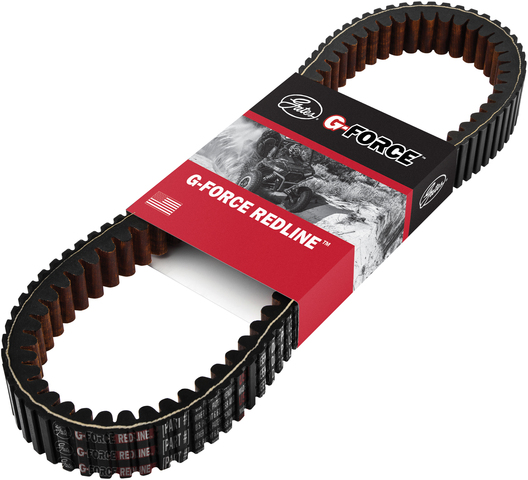

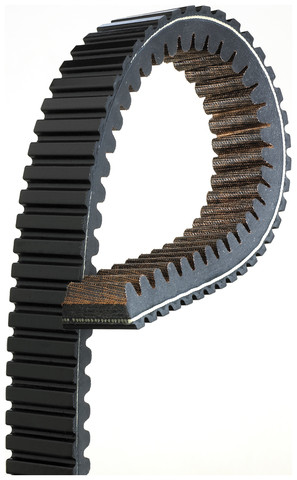

Gates 48R4553 CVT belt for the 2010-2011 Ski-Doo Skandic SWT and other vehicles carries engine power through the continuously variable transmission. Also called a CVT transmission belt, it is built for extreme off-road conditions.
- Gates G-Force RedLine design with less speed ratio and energy loss in extreme off-road use
- Crack- and wear-resistant construction for the most demanding applications
- Heat resistance and recovery, even under severe duty cycles
- Patented EE compound that maximizes axial stiffness for higher continuous torques or loads
- Double-notched EPDM belt with aramid cord
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 48R4553 CVT belt
- Also called: CVT transmission belt
- Fits: 2010-2011 Ski-Doo Skandic SWT and other vehicles
- Position: Drive belt
- Material: EPDM
- Condition: New
Cracks, missing notch material or a belt that slips under load can mean it is worn out, and a loss of acceleration can be another sign. Worn clutch parts or a damaged clutch can produce these symptoms too, so track down the cause before you order a belt.
Fits
This belt is listed for a wide range of Ski-Doo and Polaris models, including the 2011 Ski-Doo Skandic WT 550 Fan and the 2004-2006 Polaris Trail Touring. Open the "Vehicles it fits" section to look up your exact model and engine.
Specifications
Fit and size
- Position: Drive belt
- Quantity per vehicle: 1
- Cross section designation: RVS-R
- Top width: 37 mm (1.469 in)
- Pitch width: 35.51 mm (1.398 in)
- Thickness: 15.9 mm (0.627 in)
- Outside circumference: 1187 mm (46.75 in)
- Pitch length: 1156 mm (45.53 in)
Build and materials
- Type: Power sport specialty high performance CVT belt
- Construction: Double notched
- Belt material: EPDM
- Cord material: Aramid
- Condition: New
- Country of origin: United States
In the box
One CVT belt. The vehicle takes one.
Interchange: 144-4640U3 · 144-4635U4
605348425 · 48C4553 · 48G4553 · XTX5042 · 71260 · 3211078
This part cross-references / interchanges with the following part numbers:
605348425, 144-4640U3, 48C4553, 48G4553, XTX5042, 71260, 48R4553, 3211078, 144-4635U4
Frequently Asked Questions
Will the Gates 48R4553 CVT belt fit a 2010-2011 Ski-Doo Skandic SWT?
Yes. The Gates 48R4553 is listed for the 2010-2011 Ski-Doo Skandic SWT, and that model takes one belt.
What size is the Gates 48R4553 CVT belt?
It has a 37 mm (1.469 in) top width, a 15.9 mm (0.627 in) thickness and a 1187 mm (46.75 in) outside circumference. Pitch length is 1156 mm (45.53 in).
What is this CVT belt made of?
The Gates 48R4553 is an EPDM belt with aramid cord and double-notched construction. A patented EE compound maximizes axial stiffness for higher continuous torques or loads.
What should I look for when inspecting a worn CVT belt?
With the engine off and cool, look for cracks, fraying or worn notches on the belt. Slipping or weaker acceleration while riding can also point to wear.
Does the Gates 48R4553 replace the 48C4553?
Yes. 48C4553 is on the interchange list for the Gates 48R4553, along with 144-4640U3 and other numbers printed at the bottom of this page.
