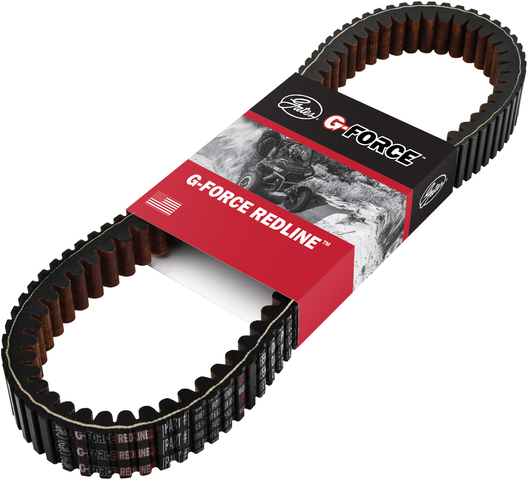

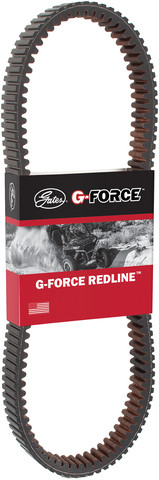

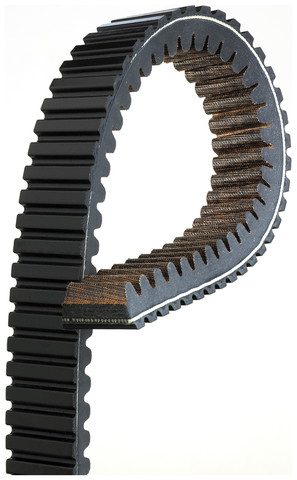

Gates 29R4266 CVT belt for the 2020-2025 Tracker 800SX and other vehicles carries engine power between the primary and secondary clutches.
- G-Force RedLine design aimed at acceleration, top speed and lower speed ratio and energy loss in extreme off-road use
- Crack- and wear-resistant construction with improved durability for demanding applications
- Heat resistance and recovery, even under severe duty cycles
- Patented EE compound that maximizes axial stiffness for higher continuous torques or loads
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 29R4266 CVT belt
- Also called: CVT transmission belt
- Fits: 2020-2025 Tracker 800SX and other vehicles
- Position: Drive belt
- Material: EPDM belt, aramid cord
- Condition: New
Cracks or fraying on the belt, slipping, or a drop in acceleration can mean this CVT transmission belt is worn, though a tired primary or secondary clutch may be behind them, so find out which before buying.
Fits
The 2020-2025 Tracker 800SX, the 2020-2025 Tracker 800SX Crew and the 2021-2025 Tracker 800SX LE all fit this belt, and so do many other vehicles.
Specifications
Fit and size
- Position: drive belt
- Quantity per vehicle: 1
- Cross section designation: RVS-R
- Top width: 33 mm (1.289 in)
- Outside circumference: 1113 mm (43.83 in)
- Pitch length: 1083.5 mm (42.656 in)
- Pitch width: 31 mm (1.212 in)
- Thickness: 14 mm (0.537 in)
Build and materials
- Type: power sport specialty high-performance CVT belt
- Construction: double notched
- Belt material: EPDM
- Cord material: aramid
- Grade: OE Improved
- Condition: new
- Country of origin: United States
In the box
One CVT belt. This listing is one belt, and each vehicle takes one.
Interchange: 0823-627
29C4266 · 29G4266 · UA491 · UHQ491
This part cross-references / interchanges with the following part numbers:
0823-627, 29C4266, 29G4266, 29R4266, UA491, UHQ491
