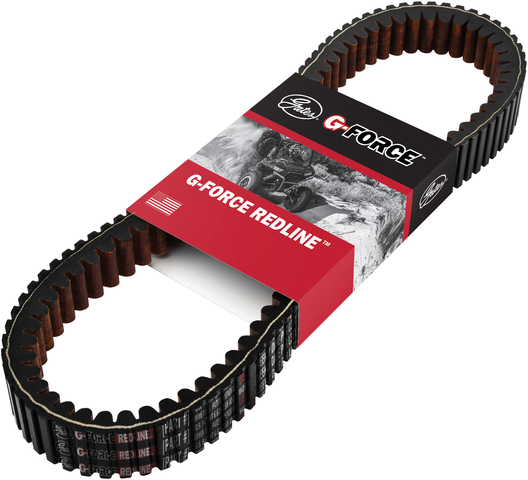

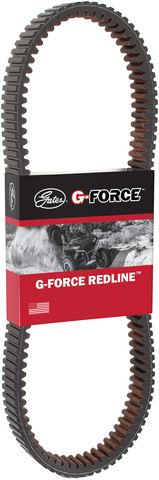

Gates 36R4246 CVT belt for the 2021 Polaris Mrzr Alpha and other vehicles carries engine power between the CVT pulleys in extreme off-road use. Its design targets better acceleration, higher top speeds and less speed ratio and energy loss.
- Gates G-Force RedLine series, the first of a new generation of CVT belts
- Patented EE compound maximizes axial stiffness so the belt can run at higher continuous torques or loads
- Greater heat resistance and recovery, even under severe duty cycles
- Crack- and wear-resistant construction for the most demanding applications
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 36R4246 CVT belt
- Also called: cvt transmission belt
- Fits: 2021 Polaris Mrzr Alpha and other vehicles
- Position: drive belt
- Material: EPDM belt with aramid cord
- Condition: New
A worn CVT transmission belt can show up as slipping, slower acceleration, or cracks and glazing on the belt surface. Slipping alone does not prove the belt is at fault, since worn clutch sheaves can also cause it.
Fits
This CVT belt is a direct-fit replacement for the 2021 Polaris Mrzr Alpha, the 2021 Polaris Mrzr Diesel and the 2016-2018 Polaris Ranger Crew Diesel. The 2021 Polaris Mrzr Diesel takes one belt. If your Polaris is a different model, look it up on the Buyer's Guide tab.
Specifications
Fit and size
- Position: drive belt
- Quantity per vehicle: 1
- Cross section designation: RVS-R
- Angle: 27
- Top width: 35 mm (1.359 in)
- Outside circumference: 1108 mm (43.633 in)
- Pitch length: 1078.5 mm (42.459 in)
- Pitch width: 32.5 mm (1.28 in)
- Thickness: 16.7 mm (0.657 in)
Build and materials
- Type: Power Sport Specialty High Performance CVT belt
- Construction: double notched
- Belt material: EPDM
- Cord material: aramid
- Condition: new
- Country of origin: United States
Interchange: XTX2284 · 36C4246 · 36G4246 · 3211193
This part cross-references / interchanges with the following part numbers:
XTX2284, 36C4246, 36G4246, 36R4246, 3211193
