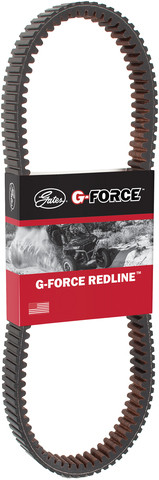

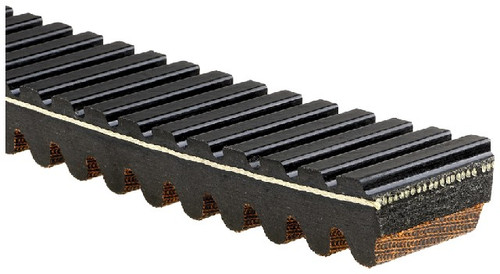

Gates 41R4313 CVT belt for the 2016-2019 Arctic Cat Bearcat 7000 XT and other vehicles carries engine power through the continuously variable transmission. It is a Gates G-Force RedLine CVT belt, the first of a new generation.
- G-Force RedLine series design targets acceleration, top speed and low energy loss in extreme off-road environments
- Crack- and wear-resistant construction for the most demanding applications
- Heat resistance and recovery, even under severe duty cycles
- Patented compound maximizes axial stiffness so the belt can run at higher continuous torque or load
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 41R4313 CVT belt
- Also called: cvt transmission belt
- Fits: 2016-2019 Arctic Cat Bearcat 7000 XT and other vehicles
- Position: Drive belt
- Material: EPDM belt body with aramid cord
- Condition: New
A worn CVT transmission belt can show up as cracks, fraying or damaged notches, or as slipping and weak acceleration while riding. Before replacing it, look the belt over with the engine off and cool; if it looks sound, a shop can look for another cause of the symptoms.
Fits
This belt fits the 2016-2019 Arctic Cat Bearcat 7000 XT, the 2016-2018 Arctic Cat Bearcat 7000 XT GS and the 2016-2018 Arctic Cat Pantera 7000 XT Limited.
Specifications
Fit and size
- Position: drive belt
- Quantity per application: 1
- Top width: 36 mm (1.412 in)
- Outside circumference: 1125 mm (44.302 in)
- Pitch length: 1095.5 mm (43.128 in)
- Pitch width: 34 mm (1.339 in)
- Thickness: 15.9 mm (0.627 in)
- Cross section designation: RVS-R
Build and materials
- Type: power sport specialty high performance CVT belt
- Construction: double notched
- Belt material: EPDM
- Cord material: aramid
- Condition: new
- Country of origin: United States
In the box
This listing holds one CVT belt, and the application calls for just one.
Interchange: 0627-102
XTX5059 · 41C4313 · 41G4313
This part cross-references / interchanges with the following part numbers:
0627-102, XTX5059, 41C4313, 41G4313, 41R4313
Frequently Asked Questions
Does the Gates G-Force CVT belt 41R4313 fit the 2016-2019 Arctic Cat Bearcat 7000 XT?
Yes. Gates 41R4313 fits the 2016-2019 Arctic Cat Bearcat 7000 XT, and the application calls for one belt.
Is this Gates CVT belt made from EPDM with aramid cord?
Yes. Gates 41R4313 has an EPDM belt body with aramid cord, in a double-notched construction.
What are the dimensions of the Gates RedLine belt 41R4313?
Gates 41R4313 has a 36 mm top width, a 1125 mm outside circumference, a 1095.5 mm pitch length and a 15.9 mm thickness.
How can I tell if my Gates G-Force belt is worn?
Cracks, fraying or damaged notches seen with the engine off can point to wear. Slipping or weak acceleration while riding can too.
Does Gates 41R4313 interchange with Gates 41C4313?
Yes. 41C4313 is on the interchange list for Gates 41R4313.
