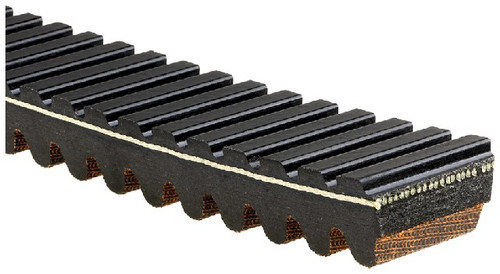

Gates 48R4246 CVT belt for the 2022 Ski-Doo Renegade Sport 600 Efi and other vehicles carries engine power between the drive and driven clutches. This Gates CVT belt is a power sport specialty belt with a double-notched body, intended for better acceleration and higher top speeds in extreme off-road use.

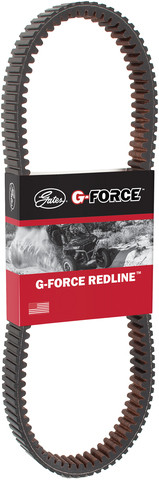

- G-Force RedLine product line, the first of a new generation of CVT belts
- Designed to reduce speed ratio and energy loss
- Crack- and wear-resistant construction for demanding applications
- Heat resistance and recovery, even under severe duty cycles
- Patented compound for axial stiffness, so the belt runs at higher continuous torques or loads
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 48R4246 CVT belt
- Also called: cvt transmission belt
- Fits: 2022 Ski-Doo Renegade Sport 600 Efi and other vehicles
- Position: Drive belt
- Material: EPDM belt with aramid cord
- Condition: New
A worn CVT belt can show up as cracks, frayed or missing notches, or slipping under throttle. The drive clutch and the driven clutch can also be behind those signs, so find the cause before you replace the belt. One belt runs between the drive clutch and the driven clutch, so you need one.
Fits
The vehicles it fits include the 2022 Ski-Doo Renegade Sport 600 Efi, the 2021 Ski-Doo Backcountry Sport 600 Efi and the 2021 Ski-Doo Expedition Sport 600 Efi. If your machine is a different model, look up its year in the "Vehicles it fits" section to see whether it is covered.
Specifications
Fit and size
- Position: Drive belt
- Quantity per vehicle: 1
- Cross section designation: RVS-R
- Top width: 37 mm (1.469 in)
- Thickness: 14.4 mm (0.567 in)
- Outside circumference: 1108 mm (43.625 in)
- Pitch length: 1078 mm (42.457 in)
- Pitch width: 35.71 mm (1.406 in)
Build and materials
- Type: Power sport specialty high performance CVT belt
- Construction: Double notched
- Belt material: EPDM
- Cord material: Aramid
- Condition: New
- Country of origin: United States
Interchange: 140-4352U3 · 140-4352U4
417300197 · 48C4246 · 48G4246 · 37GBSSV1104 · CTX5024 · HPX5024 · XTX5024 · 71258 · XS803
This part cross-references / interchanges with the following part numbers:
417300197, 140-4352U3, 48C4246, 48G4246, 37GBSSV1104, CTX5024, HPX5024, XTX5024, 71258, 48R4246, 140-4352U4, XS803
Frequently Asked Questions
Does the Gates 48R4246 fit the 2022 Ski-Doo Renegade Sport 600 Efi?
Yes, Gates 48R4246 fits the 2022 Ski-Doo Renegade Sport 600 Efi and many other vehicles; look up your own model and year in the "Vehicles it fits" section.
What size is this cvt transmission belt?
Gates 48R4246 has an RVS-R cross section, a 37 mm top width, a 14.4 mm thickness, a 1108 mm outside circumference and a 1078 mm pitch length.
Is the Gates 48R4246 belt made of EPDM?
Yes. The belt material is EPDM with an aramid cord, and the construction is double notched.
What does a worn double-notched CVT belt look like?
With the engine off and cool, look for cracks or damaged or missing notches. Slipping or weak acceleration in normal use can also be a sign of wear.
Was this G-Force RedLine belt tested under extreme conditions?
Yes. It was tested under extreme conditions, both in controlled environments and on race vehicles.
