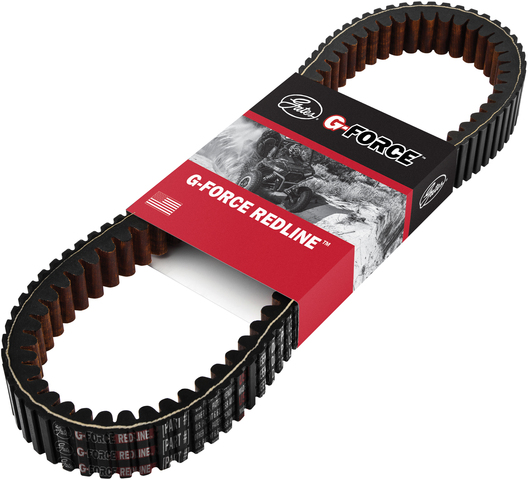

Gates 49R4313 CVT belt for the 2026-2027 Lynx Rave RE 850 E-Tec Turbo R and other vehicles carries engine power through the continuously variable transmission.
- Gates G-Force RedLine series, the first of a new generation of CVT belts
- Design intended to improve acceleration and top speed, with less speed ratio and energy loss in extreme off-road environments
- Crack- and wear-resistant construction for demanding applications
- Heat resistance and recovery under severe duty cycles
- Patented Ethylene Elastomeric (EE) compound that maximizes axial stiffness for higher continuous torques or loads
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 49R4313 CVT belt
- Also called: cvt transmission belt
- Fits: 2026-2027 Lynx Rave RE 850 E-Tec Turbo R and other vehicles
- Position: Drive belt
- Material: EPDM belt with aramid cord
- Condition: New
A worn belt can show up as cracks, fraying or missing notches, or as slipping and weak acceleration. The primary and secondary clutches can be behind those signs too, so find the cause before buying a belt. This listing is one belt, and the machine runs one between its two clutches.
Fits
This CVT belt is a direct-fit replacement for the 2025-2027 Lynx Xterrian RE 850 E-Tec Turbo R, the 2026 Lynx Xterrian RE 900 Ace Turbo R and other vehicles.
Specifications
Fit and size
- Position: drive belt
- Quantity per vehicle: 1
- Cross section designation: RVS-R
- Angle: 28 degrees
- Top width: 38 mm (1.5 in)
- Outside circumference: 1124 mm (44.25 in)
- Pitch length: 1095.5 mm (43.13 in)
- Pitch width: 35.79 mm (1.409 in)
- Thickness: 15.9 mm (0.627 in)
Build and materials
- Type: power sport specialty high performance CVT belt
- Construction: double notched
- Belt material: EPDM
- Cord material: aramid
- Grade type: OE Improved
- Condition: New
- Country of origin: United States
Interchange: 417300189 · 417300574 · 49G4313 · XTX5041 · 38GBSSV1132 · 49C4313 · XS804
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
417300189, 417300574, 49G4313, XTX5041, 38GBSSV1132, 49C4313, 49R4313, XS804
Frequently Asked Questions
Does the Gates 49R4313 CVT belt fit the 2026-2027 Lynx Rave RE 850 E-Tec Turbo R?
Yes, Gates 49R4313 fits the 2026-2027 Lynx Rave RE 850 E-Tec Turbo R and other vehicles. If yours isn't named here, look it up in the "Vehicles it fits" section.
What size is the Gates 49R4313 belt?
Gates 49R4313 has an RVS-R cross section, a 38 mm top width, a 1124 mm outside circumference and a thickness of 15.9 mm.
What is this cvt transmission belt made of?
The belt material is EPDM and the cord material is aramid. The construction is double notched.
How can I tell when this CVT belt is worn?
Cracks, fraying or missing notches that you can see with the engine off and cool can mean wear. Slipping or weak acceleration in normal riding can be a sign too.
Was the Gates G-Force RedLine belt tested on race vehicles?
Yes. This belt was tested under extreme conditions in controlled environments as well as on race vehicles.
