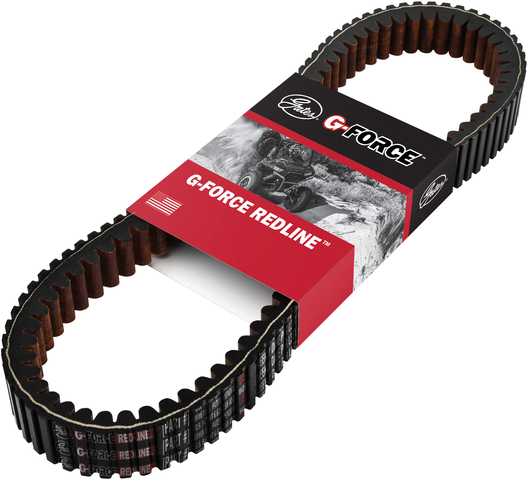

Gates 49R4368 CVT belt for the 2024-2025 Kawasaki KWF1000 Ridge HVAC and other vehicles carries engine power through the CVT clutch system. Also called a CVT transmission belt, it is a double-notched, high-performance power sport belt.
- G-Force RedLine series, the first of a new generation of continuously variable transmission belts
- Design aimed at acceleration and top speed, with less speed ratio and energy loss in extreme off-road environments
- Crack- and wear-resistant construction for the most demanding applications
- Heat resistance and recovery, even under severe duty cycles
- Patented Ethylene Elastomeric (EE) compound maximizes axial stiffness for higher continuous torques or loads
- Tested under extreme conditions in controlled environments and on race vehicles
Quick facts
- Part: Gates 49R4368 CVT belt
- Also called: CVT transmission belt
- Fits: 2024-2025 Kawasaki KWF1000 Ridge HVAC and other vehicles
- Position: Drive belt
- Material: EPDM belt with aramid cord
- Condition: New
A worn CVT belt can show up as slipping, weak acceleration, or cracks and fraying you can see on the belt. A worn clutch can also make a machine slow to pull, so these signs alone do not prove the belt is at fault.
Fits
The 2024-2025 Kawasaki KWF1000 Ridge HVAC, the 2025 Kawasaki KWF1000 Ridge HVAC Camo, the 2024-2025 Kawasaki KWF1000 Ridge Limited HVAC and many other vehicles take this belt, one per vehicle. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Drive belt
- Quantity per application: 1
- Top width: 38 mm (1.49 in)
- Outside circumference: 1139 mm (44.854 in)
- Pitch length: 1109.5 mm (43.68 in)
- Pitch width: 35.9 mm (1.413 in)
- Thickness: 15.9 mm (0.627 in)
- Cross section: RVS-R, 26° angle
Build and materials
- Type: Power Sport Specialty High Performance CVT belt
- Construction: Double notched
- Belt material: EPDM
- Cord material: Aramid
- Condition: New
- Country of origin: United States
Interchange: 0627-104 · 59011-0065
XTX5060 · 49C4368 · UA507 · XS827
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
0627-104, XTX5060, 59011-0065, 49C4368, 49R4368, UA507, XS827
Frequently Asked Questions
Does the Gates 49R4368 belt fit the 2025 Kawasaki KWF1000 Ridge HVAC Camo?
Yes. Gates 49R4368 fits the 2025 Kawasaki KWF1000 Ridge HVAC Camo, which takes one belt. Use the "Vehicles it fits" section to check another model and engine.
What are the dimensions of the Gates 49R4368 CVT belt?
Gates 49R4368 is 38 mm (1.49 in) wide at the top, 1139 mm (44.854 in) around the outside and 15.9 mm (0.627 in) thick. Its pitch length is 1109.5 mm and its angle is 26°.
What are the belt and cord materials on this CVT belt?
The belt is EPDM with an aramid cord, in a double-notched construction.
Is 49C4368 an interchange number for Gates 49R4368?
Yes. 49C4368 is listed as an interchange number for Gates 49R4368, along with 0627-104, 59011-0065, XTX5060, UA507 and XS827.
Was this CVT belt tested on race vehicles?
Yes. This belt was tested under extreme conditions in controlled environments and on race vehicles.
