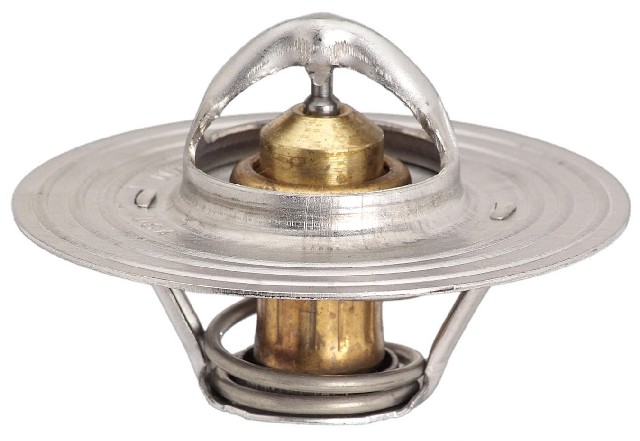

Gates 33038 cooling system components for the 1954-1967 Ford F-250 3.6L / 3.9L / 4.3L / 4.4L / 4.8L / 5.8L and other vehicles and equipment come as an OE Type engine coolant thermostat that opens and closes to control coolant flow and engine temperature.
- OEM fit, function and design for precise engine cooling
- Precise temperature control with a leak-free, OEM-equivalent fit
- Quality-controlled factory calibration keeps opening and closing accurate, regardless of pressure changes
Overheating, slow warm-up or a temperature gauge that swings can mean a thermostat is sticking. A failing water pump, a clogged radiator or a coolant leak can also be behind those symptoms, so track down the cause before you buy a thermostat.
It is listed for many vehicles and equipment across Ford, Dodge, Chrysler, Buick and other makes, including the 1966-1978 Dodge Charger 5.2L. Open the "Vehicles it fits" section to look up your exact model and engine.
Specifications
Fit and size
- Height: 1.48 in
- Sealing flange outside diameter: 2.48 in
- Flange height: 0.79 in
- Height between flanges: 1.04 in
- Flange thickness: 0.06 in
Build and materials
- Type: OE Type thermostat, OE Performance grade
- Design: reverse poppet
- Start to open temperature: 180°F (82°C)
- Material: stainless steel, copper
- Country of origin: China
In the box
One thermostat. No gasket, seal or installation tool is included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Gates 33038 thermostat fit a 1966-1978 Dodge Charger 5.2L?
Yes. Gates 33038 is listed for the 1966-1978 Dodge Charger 5.2L, as well as the 1954-1967 Ford F-250 3.6L / 3.9L / 4.3L / 4.4L / 4.8L / 5.8L.
Does the Gates 33038 thermostat come with a gasket?
No. This thermostat is listed with no gasket, seal or installation tool included, so those pieces are bought separately.
At what temperature does the Gates 33038 thermostat start to open?
Gates 33038 starts to open at 180°F (82°C). It has a reverse poppet design and is made of stainless steel and copper.
How can I tell if my reverse poppet thermostat is sticking?
Overheating, an engine slow to warm up or a temperature gauge that swings can be signs of a sticking thermostat. A shop can test the thermostat itself.
What size is the sealing flange on this Gates thermostat?
The sealing flange outside diameter is 2.48 in, with a flange thickness of 0.06 in and a flange height of 0.79 in. Overall height is 1.48 in.
