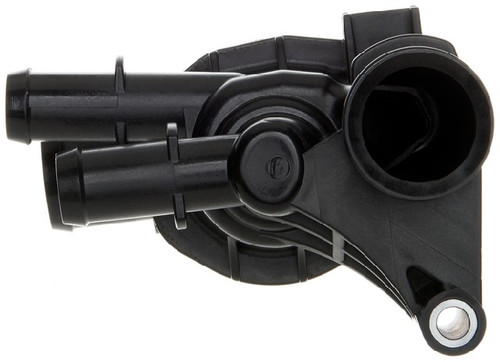

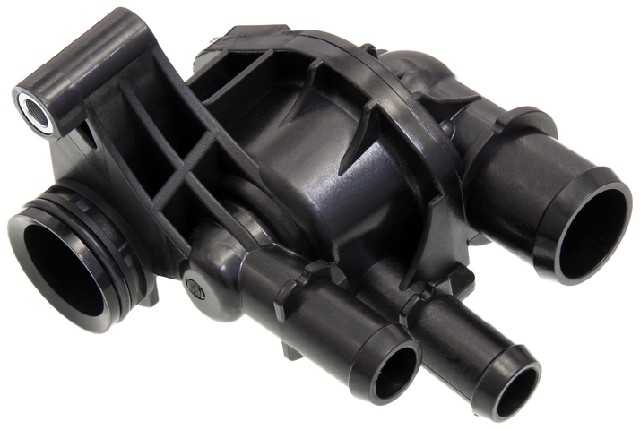

Gates 34856 thermostat for the 2014-2020 Ford Fusion 4-cylinder 1.5L and other vehicles opens and closes to regulate engine coolant temperature. This integrated housing engine coolant thermostat comes as one bolt-on unit.
- All-in-one, bolt-on design for a complete job
- Application-specific adaptive MAP-control for precision temperature control
- Accurate temperature regulation helps engines operate more efficiently
- Jiggle pin check valve included
Quick facts
- Part: Gates 34856 thermostat
- Also called: engine coolant thermostat
- Fits: 2014-2020 Ford Fusion 4-cylinder 1.5L and other vehicles
- Condition: New
A coolant temperature gauge that reads too high or too low, or a slow warm-up, can mean the thermostat is no longer opening and closing properly. These signs alone do not prove the thermostat is the problem, since a low coolant level is another common cause of the same gauge reading.
Fits
This Gates thermostat is a direct-fit replacement for the 2017-2019 Ford Escape 4-cylinder 1.5L and the 2014-2020 Ford Fusion 4-cylinder 1.5L, and each of those engines takes one. It meets or exceeds OE standards for fit, form and performance.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bolt holes: 1
- Outlet inside diameters: 1.29 in, 1.12 in, 0.64 in
- Outlet outside diameters: 1.68 in, 1.44 in, 0.94 in
Build and materials
- Type: integrated housing thermostat
- Grade: OE Performance
- Starts to open at 180°F (82°C)
- Seal quantity: 1
- Jiggle pin check valve: 1, included
- Condition: New
- Country of origin: China
In the box
One thermostat with its insert, seal, housing and jiggle pin check valve.
Interchange: 902-1123 · 930-180
DS7G 9K478 DA · DS7G 9K478 DB · DS7Z 8592 F · RH224 · 93080 · 15778
This part cross-references / interchanges with the following part numbers:
902-1123, DS7G 9K478 DA, DS7G 9K478 DB, DS7Z 8592 F, 930-180, RH224, 93080, 15778
Frequently Asked Questions
Does the Gates 34856 work as a thermostat for the 2014-2020 Ford Fusion 4-cylinder 1.5L?
Yes. Gates 34856 is listed for the 2014-2020 Ford Fusion 4-cylinder 1.5L, and that engine takes one.
Does Gates 34856 work as a Ford Escape thermostat for the 2017-2019 model years with the 4-cylinder 1.5L?
Yes. Gates 34856 fits the 2017-2019 Ford Escape 4-cylinder 1.5L, and that engine takes one.
What comes with this Gates thermostat besides the thermostat itself?
The Gates 34856 includes the insert, seal, housing and a jiggle pin check valve, so it installs as an all-in-one bolt-on unit.
At what temperature does this thermostat start to open?
This thermostat starts to open at 180°F (82°C).
Does the Gates 34856 include adaptive MAP-control?
Yes. The Gates 34856 has application-specific adaptive MAP-control along with precision temperature regulation and control.
