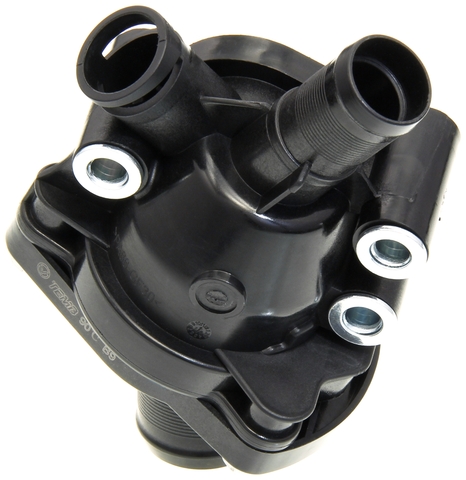

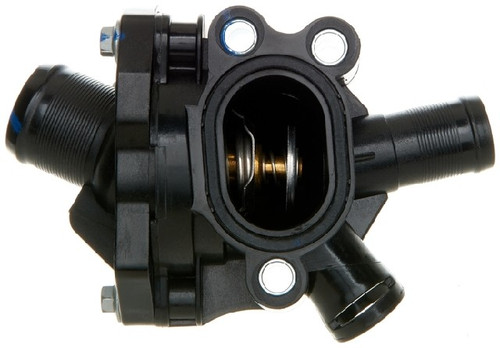

Gates 34859 thermostat for the 2015-2016 Volvo V60 5-cylinder 2.5L and other vehicles regulates coolant temperature from a thermostat built into its own housing. It is also known as an engine coolant thermostat.
- Accurate temperature regulation and control to help the engine run more efficiently
- Application-specific adaptive MAP-control
- All-in-one bolt-on unit with thermostat, insert, seal and housing
- Starts to open at 194°F (90°C)
- Jiggle pin check valve included
Quick facts
- Part: Gates 34859 thermostat
- Also called: engine coolant thermostat
- Fits: 2015-2016 Volvo V60 5-cylinder 2.5L and other vehicles
- Condition: New
A thermostat that sticks can show up as a temperature gauge reading higher or lower than normal, a weak cabin heater or a coolant leak at the housing. These signs alone do not prove the thermostat is the problem, since a low coolant level can cause some of them too.
Fits
The 2015-2016 Volvo V60 5-cylinder 2.5L, the 2015-2016 Volvo V60 Cross Country 5-cylinder 2.5L and the 2015-2016 Volvo XC60 5-cylinder 2.5L take this thermostat, and so do more Volvo models. It meets or exceeds OE standards for fit, form and performance. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Start to open temperature: 194°F (90°C)
- Bolt holes: 3
- Outlet inside diameter: 0.81 in, 0.80 in, 1.09 in
- Outlet outside diameter: 0.97 in, 0.91 in, 1.26 in
Build and materials
- Type: integrated housing thermostat
- Grade: OE Performance
- Jiggle pin check valve: included, quantity 1
- Seal quantity: 1
- Condition: new
- Country of origin: China
In the box
One thermostat with its insert, seal, housing and jiggle pin check valve. This listing holds one unit, and the car takes a single thermostat.
Interchange: 902-5864 · 608-194
86209 · 60894 · 50099 · 30650753 · 31319606 · 31411151
This part cross-references / interchanges with the following part numbers:
902-5864, 86209, 608-194, 60894, 50099, 30650753, 31319606, 31411151
Frequently Asked Questions
Does Gates 34859 work as a thermostat for a 2015-2016 Volvo XC60 5-cylinder 2.5L?
Yes. Gates 34859 is a thermostat for the 2015-2016 Volvo XC60 5-cylinder 2.5L, which takes one. Use the "Vehicles it fits" section to check a different model or engine.
Is 34859 the right thermostat for the 2015-2016 Volvo V60 5-cylinder 2.5L?
Yes. Gates 34859 is a thermostat for the 2015-2016 Volvo V60 5-cylinder 2.5L, and the car takes a single thermostat.
At what temperature does the Gates 34859 thermostat start to open?
This thermostat starts to open at 194°F (90°C).
Does this thermostat come with the housing and seal, or only the thermostat?
Yes. This thermostat is an all-in-one, bolt-on unit with the thermostat, insert, seal and housing, plus a jiggle pin check valve.
Is 902-5864 the same part as Gates 34859?
902-5864 is listed as an interchange number for Gates 34859, along with 608-194 and several others printed at the bottom of this page.
