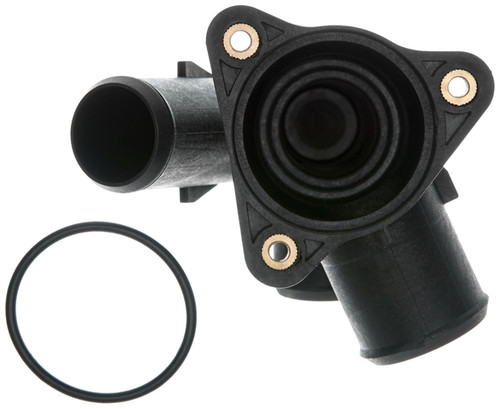

Gates CO34819 engine coolant water outlet for the 2005-2008 Ford Escape V6 3.0L and other vehicles works as the thermostat housing and routes coolant out of the engine. It is made for long service life.
- Gates Coolant Outlets line, which runs from water outlets to complete thermostat housing assemblies
- Improved seal design for leak-free performance
- Advanced weld process for consistent, durable construction
- Plastic body that resists warping and corrosion
Quick facts
- Part: Gates CO34819 engine coolant water outlet
- Fits: 2005-2008 Ford Escape V6 3.0L and other vehicles
- Position: Thermostat housing
- Material: Plastic
- Condition: New
A cracked or warped housing, coolant seepage or unexplained coolant loss can mean the outlet is failing. Before you replace it, rule out a bad thermostat, a loose hose clamp or a leak from another coolant fitting, since a leak elsewhere in the cooling system can leave the same wet spot.
Fits
This outlet is listed for a wide range of Ford, Mercury, Mazda and Lincoln models, led by the 2005-2008 Ford Escape V6 3.0L, the 2006-2009 Ford Fusion V6 3.0L and the 2005-2009 Mercury Mariner V6 3.0L. It is designed to fit and perform like the original. The 2006-2009 Ford Fusion V6 3.0L takes one.
Specifications
Fit and size
- Position: thermostat housing
- Quantity per vehicle: 1
- Outlet inside diameters: 1.29 in, 0.53 in, 1.02 in, 1.04 in
- Outlet outside diameters: 0.74 in, 1.24 in, 1.25 in, 1.49 in
- Bolt holes: 3
Build and materials
- Type: thermostat housing
- Material: plastic
- Seal: 1 included
- Condition: new
- Country of origin: China
In the box
One engine coolant water outlet (a thermostat housing) and one seal. No gasket is included.
Interchange: 902-778
2M2Z 8592 CC · 2M2Z 8592 CD · 86076 · AJ5115176 · AJ5115176A · AJ5115176B · CH8778
This part cross-references / interchanges with the following part numbers:
902-778, 2M2Z 8592 CC, 2M2Z 8592 CD, 86076, AJ5115176, AJ5115176A, AJ5115176B, CH8778
Frequently Asked Questions
Does the Gates CO34819 water outlet fit a 2005-2008 Ford Escape V6 3.0L?
Yes. Gates CO34819 is listed for the 2005-2008 Ford Escape V6 3.0L and many other vehicles. If your car is not named here, look it up in the "Vehicles it fits" section.
Does the Gates CO34819 coolant outlet come with a seal?
Yes. Gates CO34819 comes with one seal. No gasket is included.
Is this engine coolant water outlet plastic or metal?
It is plastic, made to resist warping and corrosion.
Can I spot a leaking water outlet without starting the engine?
Yes. With the engine off and cool, look for cracks, warping or dried coolant around the housing. A shop can pressure-test the cooling system if the leak source is unclear.
Does Gates CO34819 replace number AJ5115176?
Yes. AJ5115176 is one of the numbers this Gates CO34819 outlet replaces, along with 902-778 and 86076.
