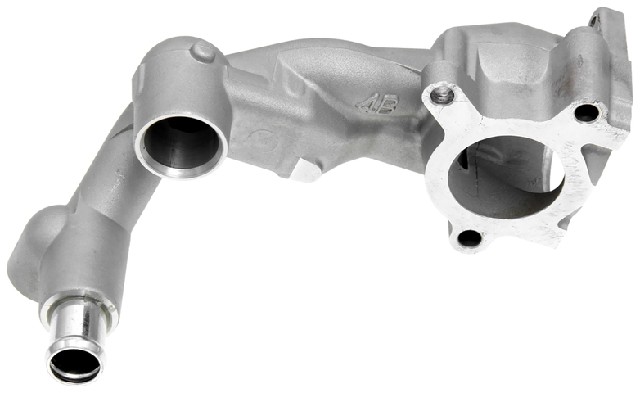

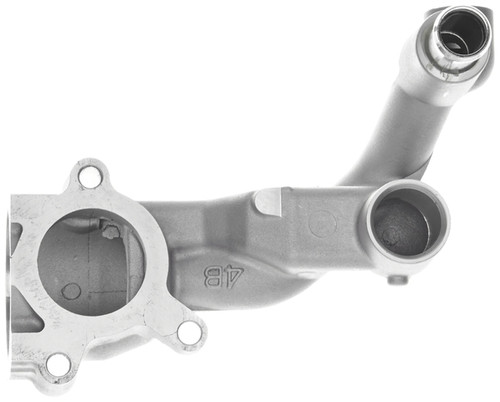

Gates CO34848 engine coolant water outlet for the 2007-2017 Toyota Camry V6 3.5L and other vehicles carries coolant out of the engine at the thermostat housing. It is designed to fit and perform like the original and to give long service life.
- Improved seal design for leak-free performance
- Advanced weld process for consistent, durable construction
- Aluminum body made to prevent warping and resist corrosion
Quick facts
- Part: Gates CO34848 engine coolant water outlet
- Fits: 2007-2017 Toyota Camry V6 3.5L and other vehicles
- Position: Thermostat housing
- Material: Aluminum
- Condition: New
Coolant residue around the housing, coolant that keeps dropping or a temperature gauge that climbs can mean the outlet is leaking or cracked. These signs alone do not prove the outlet is at fault, since a loose hose clamp could leak in the same place. The engine takes one outlet, at the thermostat housing.
Fits
The 2007-2017 Toyota Camry V6 3.5L, 2008-2016 Toyota Highlander V6 3.5L and 2006-2012 Toyota RAV4 V6 3.5L all take this outlet, and so do other Toyota and Lexus models. If your car is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: thermostat housing
- Quantity per vehicle: 1
- Bolt holes: 3
- Outlet inside diameters: 0.642 in, 0.983 in
- Outlet outside diameters: 1.27 in, 0.747 in
Build and materials
- Material: Aluminum
- Condition: New
- Country of origin: China
In the box
One engine coolant water outlet. No gasket or seal is included.
Interchange: 86036 · CH7036 · 163230P030 · 163230W011 · 1632331040
This part cross-references / interchanges with the following part numbers:
86036, CH7036, 163230P030, 163230W011, 1632331040
Frequently Asked Questions
Does the Gates CO34848 water outlet fit the 2008-2016 Toyota Highlander V6 3.5L?
Yes. Gates CO34848 is listed for the 2008-2016 Toyota Highlander V6 3.5L, and that engine takes one outlet.
Does the CO34848 water outlet come with a gasket or seal?
No. The Gates CO34848 listing is one aluminum water outlet, and no gasket or seal is included.
How many bolt holes does this Gates water outlet have, and what are its diameters?
It has 3 bolt holes. The inside diameters are 0.642 in and 0.983 in, and the outside diameters are 1.27 in and 0.747 in.
How can I tell if my coolant water outlet is leaking?
With the engine off and cool, look for coolant residue, crust or cracks around the aluminum outlet. A temperature gauge that climbs while driving is another sign a shop can look into.
Is 163230W011 an interchange number for the Gates CO34848?
Yes. 163230W011 is listed as a number Gates CO34848 replaces, along with 86036, CH7036, 163230P030 and 1632331040.
