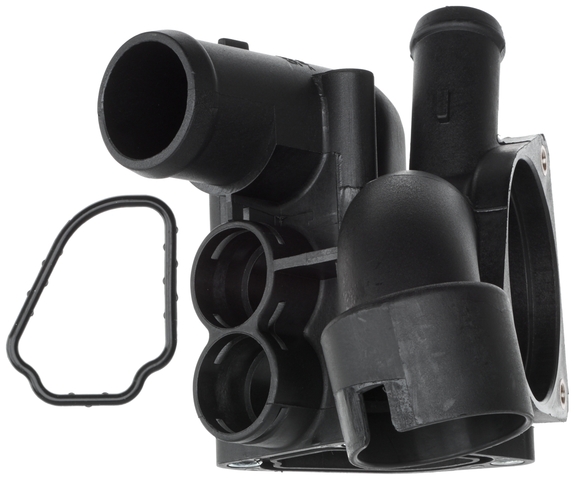

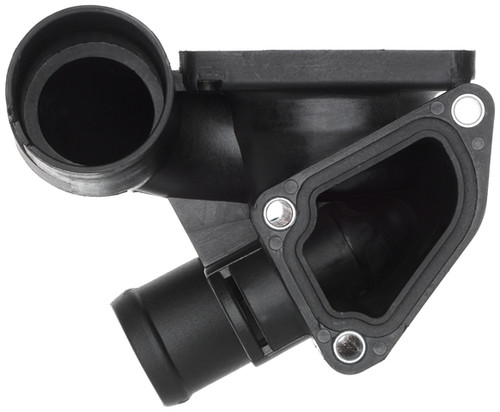

Gates CO34877 engine coolant water outlet for the 1999-2004 Volkswagen Jetta V6 2.8L and other vehicles is a thermostat housing that routes coolant out of the engine. It is designed to fit and perform like the original.
- Gates Coolant Outlets line
- Improved seal design for leak-free performance
- Advanced weld process for consistent, durable construction
- Plastic body that resists warping and corrosion
Quick facts
- Part: Gates CO34877 engine coolant water outlet
- Fits: 1999-2004 Volkswagen Jetta V6 2.8L and other vehicles
- Position: Thermostat housing
- Material: Plastic
- Condition: New
Coolant residue or drips around the housing, a crack or warped sealing surface, and unexplained coolant loss can mean the outlet is failing. Before you replace it, rule out a loose hose clamp, a leaking hose and a faulty thermostat as the source of the leak. Inspect only with the engine cool.
Fits
It is listed for a wide range of Volkswagen and Audi models, led by the 1999-2005 Volkswagen Golf V6 2.8L and the 2006-2009 Audi A3 Quattro V6 3.2L; each takes one. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: thermostat housing
- Quantity per vehicle: 1
- Outlet inside diameter: 1.665 in, 1.11 in, 1.088 in, 1.269 in
- Outlet outside diameter: 1.984 in, 1.3 in, 1.514 in
- Bolt holes: 8
Build and materials
- Type: thermostat housing
- Material: plastic
- Condition: new
- Country of origin: China
In the box
One water outlet with one seal.
Interchange: 902-920
815740 · 85922 · CH9920 · TA9920 · 021121117B · 022121117C
This part cross-references / interchanges with the following part numbers:
815740, 902-920, 85922, CH9920, TA9920, 021121117B, 022121117C
Frequently Asked Questions
Is this Gates CO34877 water outlet right for the 1999-2004 Volkswagen Jetta V6 2.8L?
Yes, Gates CO34877 is listed for the 1999-2004 Volkswagen Jetta V6 2.8L, which takes one; other models are in the "Vehicles it fits" section.
Does the Gates CO34877 come with a seal?
Yes, the Gates CO34877 water outlet comes with one seal, and no separate gasket is listed with it.
Is the Gates CO34877 water outlet made of plastic?
Yes. The body is plastic, and it has eight bolt holes.
What are signs of a cracked plastic water outlet?
Coolant residue or drips near the housing, a visible crack or a warped sealing surface can mean the outlet is failing. Look only with the engine cool.
What does the improved seal design on the Gates CO34877 do?
The improved seal design on the Gates CO34877 is intended to give leak-free performance, and its advanced weld process gives consistent, durable construction.
