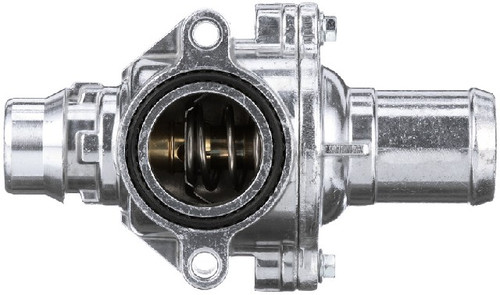

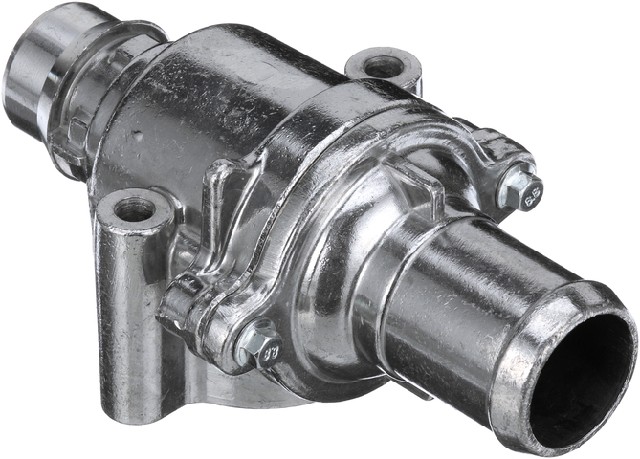

Gates CO34944 engine coolant water outlet for the 2011-2019 Ford F-150 V8 5.0L and other vehicles directs coolant out of the engine. It is Gates' answer to design, manufacturing and material problems common in other aftermarket outlets.
- Improved seal design for leak-free performance
- Advanced weld process for consistent and durable construction
- Cast aluminum construction made to resist warping and corrosion
- Thermostat supplied with the outlet assembly
Quick facts
- Part: Gates CO34944 engine coolant water outlet
- Fits: 2011-2019 Ford F-150 V8 5.0L and other vehicles
- Material: Cast aluminum
- Condition: New
A worn or failing water outlet can show up as coolant seeping near the outlet, a dropping coolant level or an engine that runs hot. These signs alone do not prove the outlet is the problem, since a worn hose or loose clamp can leak in the same area.
Fits
This outlet fits the 2011-2019 Ford F-150 V8 5.0L and the 2015-2019 Ford Lobo V8 5.0L, and each takes one. It is designed to fit and perform like the original and to give long service life.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet inside diameter: 0.91 in and 1.2 in
- Outlet outside diameter: 1.28 in and 1.48 in
- Bolt holes: 2
Build and materials
- Type: coolant outlet assembly with thermostat
- Material: Cast aluminum
- Seal: 1 integrated seal
- Condition: New
- Country of origin: China
In the box
One coolant outlet assembly with an integrated seal. No separate gasket is included.
Interchange: 902-5153
7T4E 8A571 BA · BL3E 8A586 FC · BL3Z 8A586 A · BL3Z 8A586 C · BL3Z 8A586 D · BL3Z 8A586 FA · 815833 · TA6015
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
815833, 902-5153, 7T4E 8A571 BA, BL3E 8A586 FC, BL3Z 8A586 A, BL3Z 8A586 C, BL3Z 8A586 D, BL3Z 8A586 FA, TA6015
Frequently Asked Questions
Is the Gates CO34944 water outlet right for a 2015-2019 Ford Lobo V8 5.0L?
Yes. Gates CO34944 is listed for the 2015-2019 Ford Lobo V8 5.0L, and that vehicle takes one outlet.
Does the Gates CO34944 come with a thermostat?
Yes. Gates CO34944 is a coolant outlet assembly that comes with a thermostat and an integrated seal. A separate gasket is not included.
What material is this coolant water outlet made of?
This water outlet is cast aluminum, made to resist warping and corrosion.
How can I tell if a coolant water outlet is leaking?
With the engine off and cool, look for coolant residue or wet staining around the outlet and its hose connection. A shop can pressure-test the cooling system to confirm a leak.
Does Gates CO34944 replace Ford BL3Z 8A586 A?
Yes. BL3Z 8A586 A is one of the numbers this Gates outlet replaces, along with 902-5153 and TA6015.
