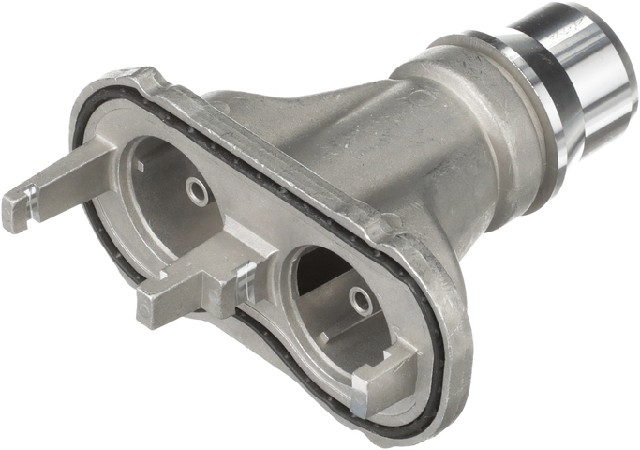

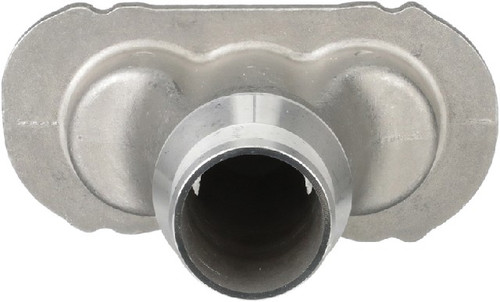

Gates CO34957 engine coolant water outlet for the 2008-2010 Ford F-250 Super Duty V8 6.4L and other vehicles covers the thermostat and sends coolant out of the engine. It is designed to fit and perform like the original and to give long service life.
Coolant stains or crusty residue around the thermostat cover, or a cracked or corroded cover, can mean the outlet is leaking. Before you replace it, look over the cover and seal joint with the engine off and cool; a nearby hose or clamp can leak in the same spot.
The 2008-2010 Ford F-350 Super Duty V8 6.4L and the 2008-2010 Ford F-450 Super Duty V8 6.4L both take this outlet, and more vehicles do too, one outlet each. Open the "Vehicles it fits" section to check your exact model and engine.
Fit and size
Build and materials
One engine coolant water outlet and one seal.
Interchange: 902-1107 · 8C3Z 8592 J · 8C3Z 8592 M · 8C3Z 8592 N
86222 · CH2107 · RT1212
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Gates CO34957 water outlet fit a 2008-2010 Ford F-250 Super Duty V8 6.4L?
Yes, Gates CO34957 fits the 2008-2010 Ford F-250 Super Duty V8 6.4L, one per vehicle. Open the "Vehicles it fits" section to check other models and engines.
Does the Gates CO34957 coolant water outlet come with its seal?
Yes, the Gates CO34957 package holds the water outlet and one seal.
What are the outlet diameters on this cast iron water outlet?
The outlet measures 1.53 in inside diameter and 1.83 in outside diameter. The body is cast iron.
How can I tell if this thermostat cover water outlet is going bad?
With the engine off and cool, look for coolant stains, crusty residue, cracks or corrosion around the cover and seal. A shop can pressure-test the system if you cannot see the leak.
Does Gates CO34957 replace the number 8C3Z 8592 J?
Yes, 8C3Z 8592 J is one of the numbers Gates CO34957 replaces.
