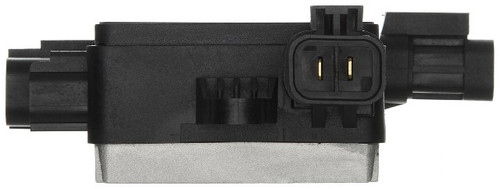

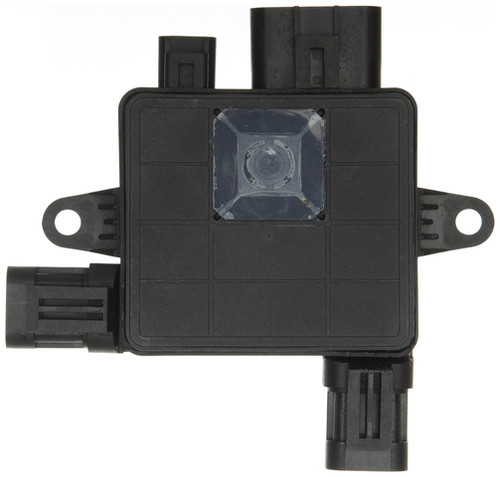

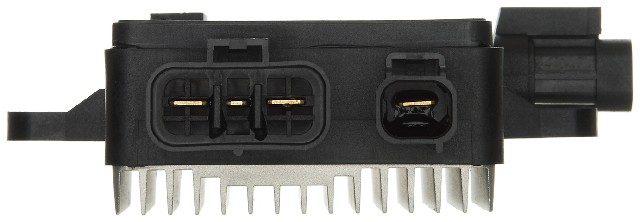

Gates FCM133 cooling fan module for the 2006-2010 Kia Sedona V6 3.8L, the 2011-2012 Sedona V6 3.5L and other vehicles controls the speed of the electric cooling fan that keeps engine coolant in a steady temperature range. It is also called an engine cooling fan module.
- Controls electric cooling fan speed to minimize energy loss and maximize fuel economy
- Engineered improvements incorporated into parts with a high failure rate to improve performance and longevity
- Housing made of aluminum and plastic
- Rated 12 V and 35 A, with four male connectors
Quick facts
- Part: Gates FCM133 cooling fan module
- Also called: engine cooling fan module
- Fits: 2006-2010 Kia Sedona V6 3.8L, the 2011-2012 Sedona V6 3.5L and other vehicles
- Material: Aluminum, Plastic
- Condition: New
A temperature gauge that climbs, a fan that never comes on or one that runs nonstop can mean the module is worn, though the fan motor or a relay can be behind them too, so find the cause before replacing it.
Fits
This module is a direct-fit replacement for the vehicles above and also fits the 2014 Kia Sedona V6 3.5L and the 2007-2009 Hyundai Entourage V6 3.8L. The 2007-2009 Hyundai Entourage V6 3.8L takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 5.75 in
- Width: 5.4 in
- Height: 1.875 in
- Connectors: 4, male, with pin counts of 3, 1 and 2
Build and materials
- Housing material: Aluminum, Plastic
- Voltage: 12 V
- Amperage rating: 35 A
- Condition: New
- Country of origin: China
In the box
One cooling fan module. The wire harness is not included.
Installation notes
- Plug-and-play design for easy installation.
- On applications where the dealer does not sell the module separately, replacing the module alone avoids buying the complete fan assembly.
Interchange: 253854D900 · RY1881
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Gates FCM133 fit the 2007-2009 Hyundai Entourage V6 3.8L?
Yes, Gates FCM133 fits the 2007-2009 Hyundai Entourage V6 3.8L, and that vehicle takes one module.
Does the Gates FCM133 come with a wire harness?
No. Gates FCM133 is one cooling fan module with four male connectors, and the wire harness is not included.
What voltage and amperage is this cooling fan module rated for?
This cooling fan module is rated for 12 volts and 35 amps, and its housing is aluminum and plastic.
Why would my electric fan run nonstop or never come on?
A fan that runs nonstop, one that never starts or a climbing temperature gauge can mean the module is worn. A shop can test the fan circuit to confirm.
Does Gates FCM133 interchange with 253854D900?
Yes. 253854D900 is listed as an interchange number for Gates FCM133, along with RY1881.
