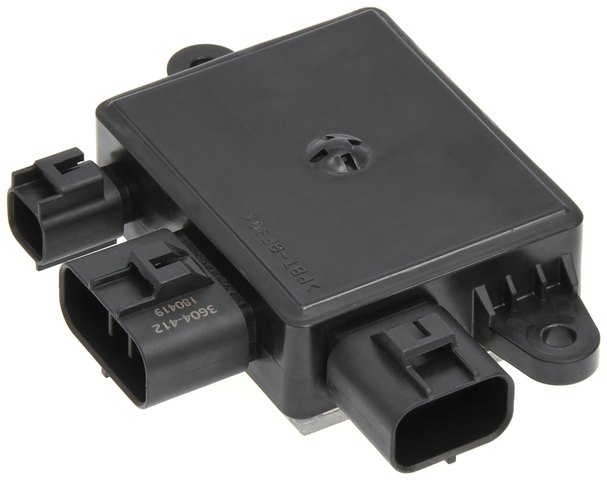

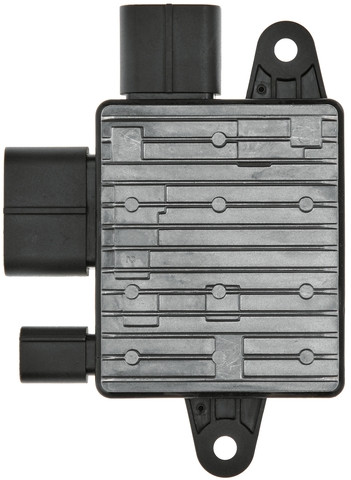

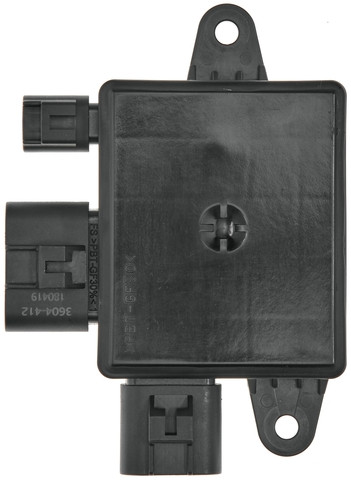

Gates FCM141 cooling fan module for the 2013-2017 Hyundai Veloster 4-cylinder 1.6L controls the speed of the electric cooling fan. Sold as an engine cooling fan module, it regulates fan speed to help keep engine coolant within a constant temperature range.
- Precise fan speed control to limit energy loss and support fuel economy
- Engineered improvements to boost performance and longevity on a part type with a high failure rate
- Three female connectors with 1, 2 and 3 pins
- Aluminum and plastic housing, rated for 12 V and 30 A
- Replaces the module alone, not the complete fan assembly, where the dealer does not sell the module separately
Quick facts
- Part: Gates FCM141 cooling fan module
- Also called: engine cooling fan module
- Fits: 2013-2017 Hyundai Veloster 4-cylinder 1.6L
- Material: Aluminum and plastic housing
- Condition: New
A fan that does not run or runs at the wrong speed, or an engine temperature that climbs at idle or in traffic, can be signs of a faulty module. Before you replace it, rule out a failed fan motor, a bad relay or damaged wiring, since any of those can also stop the fan.
Fits
It is an OE-performance replacement for the 2013-2017 Hyundai Veloster 4-cylinder 1.6L, and that engine takes one module.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 5.625 in
- Width: 4.05 in
- Height: 1.6 in
- Connectors: 3, female, with 1, 2 and 3 pins
Build and materials
- Housing material: aluminum, plastic
- Voltage: 12 V
- Amperage rating: 30 A
- Condition: New
- Country of origin: China
In the box
One cooling fan module. A wire harness is not included.
Installation notes
- Plug-and-play design for easy installation.
Interchange: 253852V700 · RY1943
Frequently Asked Questions
Is the Gates FCM141 cooling fan module right for the 2013-2017 Hyundai Veloster 4-cylinder 1.6L?
Yes. Gates FCM141 is listed for the 2013-2017 Hyundai Veloster 4-cylinder 1.6L, and that engine takes one module.
Does the Gates FCM141 come with a wire harness?
No. Gates FCM141 is sold as one cooling fan module, and a wire harness is not included.
What voltage and amperage is this cooling fan module rated for?
This module is rated for 12 volts and 30 amps. It has three female connectors with 1, 2 and 3 pins.
What are signs this cooling fan module may be failing?
The electric fan may not run or may run at the wrong speed, and engine temperature can climb at idle or in traffic. A shop can test the module.
Can this module be replaced without the whole fan assembly?
Yes, on applications where the dealer does not sell the module separately, this module replaces on its own instead of the complete fan assembly.
