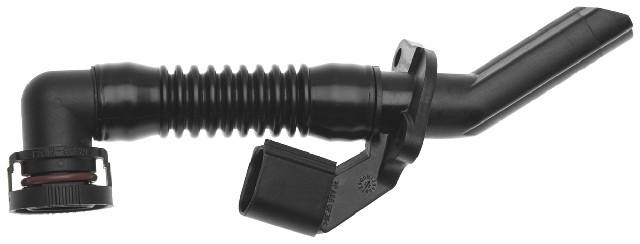

Gates EMH224 crankcase breather hose for the 2006-2008 Volkswagen Passat V6 3.6L and other vehicles carries crankcase vapors from the valve cover to the intake. Also called a crankcase vent hose, it belongs to the emission control and ventilation system.
- Resists fuel vapors and oil
- Meets SAE J30R7 specifications
- Rated from -40 °F to +275 °F (-40 °C to +135 °C)
- Molded plastic hose with one quick-connect fitting
Quick facts
- Part: Gates EMH224 crankcase breather hose
- Also called: crankcase vent hose
- Fits: 2006-2008 Volkswagen Passat V6 3.6L and other vehicles
- Position: Valve cover to intake
- Material: Plastic
- Condition: New
Cracks, oil seepage at the ends or a rough idle can mean this hose is worn, though a clogged PCV valve or a leaking intake gasket can be behind them too, so find the cause before replacing anything.
Fits
It is an OE-exact direct replacement for the 2006-2008 Volkswagen Passat V6 3.6L, the 2007-2010 Audi Q7 V6 3.6L and the 2007-2010 Volkswagen Touareg V6 3.6L. Each engine takes one hose.
Specifications
Fit and size
- Position: valve cover to intake
- Quantity per vehicle: 1
- Inside diameter: 16 mm (0.64 in)
- Centerline length: 213 mm (8.375 in)
Build and materials
- Material: plastic
- Construction: molded
- End types: push-in, clip-on
- Quick-connect fittings: 1
- Condition: new
- Country of origin: China
In the box
One crankcase breather hose. Hardware, a PCV valve and a protective sleeve are not included, so plan on new hardware; the old pieces may not be reusable.
Installation notes
- The ends are push-in and clip-on types.
- The direct replacement design is made for exact fit and easy installation.
Interchange: 03H103202A
Frequently Asked Questions
Is this Gates crankcase breather hose right for the 2006-2008 Volkswagen Passat V6 3.6L?
Yes. Gates EMH224 is an OE-exact direct replacement for the 2006-2008 Volkswagen Passat V6 3.6L, running from the valve cover to the intake.
Does the Gates EMH224 hose come with a PCV valve?
No. The listing is one hose; the PCV valve, a protective sleeve and mounting hardware are not included.
What are the inside diameter and length of the Gates EMH224?
Gates EMH224 has a 16 mm (0.64 in) inside diameter and a centerline length of 213 mm (8.375 in).
How can I tell if this crankcase breather hose is worn?
With the engine off and cool, look along the hose and at its ends for cracks, oil seepage or a loose-fitting end. A shop can test anything beyond a visual look.
How does the Gates EMH224 connect to the engine?
Gates EMH224 has push-in and clip-on end types and one quick-connect fitting. Its direct replacement design is made for exact fit and easy installation.
