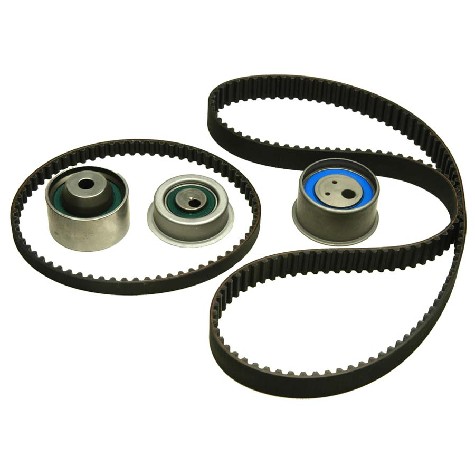

Gates TCK232 timing belt component kit for the 1993 Mitsubishi Galant 4-cylinder 2.0L replaces the belts, tensioners and idler of the timing drive. Also called an engine timing belt component kit, this Gates timing belt kit puts five parts in one box.
- Part of the Gates PowerGrip Timing Component Kit (TCK) line
- Five components: two belts, two tensioners and one idler
- Tensioner types: hydraulic and eccentric
- HSN belt material with a Modified Curvilinear (III) tooth type
Quick facts
- Part: Gates TCK232 timing belt component kit
- Also called: engine timing belt component kit
- Fits: 1993 Mitsubishi Galant 4-cylinder 2.0L
- Material: HSN belts
- Condition: New
Cracking, glazing, missing teeth or oil on a belt can mean the kit is due. Before replacing it, look the old belt over with the engine off and cool and the timing cover off during service; oil can mean a leaking seal that needs its own repair. If a worn tensioner or idler is the cause, this kit replaces them.
Fits
Gates TCK232 fits the 1993 Mitsubishi Galant 4-cylinder 2.0L, and that car takes one kit.
Specifications
Fit and size
- Quantity per vehicle: 1
- Number of components: 5
- Belt 1: 123 teeth, 29 mm (1.142 in) wide
- Belt 2: 65 teeth, 13 mm (0.5 in) wide
Build and materials
- Belt material: HSN
- Tooth type: Modified Curvilinear (III)
- Tensioner type: hydraulic, eccentric
- Condition: New
- Gates warranty: matches the original manufacturer's timing belt replacement intervals for parts, labor and other associated costs
- Country of origin: United States
In the box
Two belts, two tensioners and one idler. A water pump is not included.
Installation notes
- Installation instructions come in the kit as instruction sheet 0098-0112.
- Belts, tensioners and idler are supplied together so the drive is serviced as one system.
Interchange: TB232-168K1
BTK1944 · 95232K2 · 95232K2S · F904262V · GTK0232 · TTIK075 · 2522320 · VKMA95019 · VKMA95019S
This part cross-references / interchanges with the following part numbers:
TCK232, BTK1944, TB232-168K1, 95232K2, 95232K2S, F904262V, GTK0232, TTIK075, 2522320, VKMA95019, VKMA95019S
Frequently Asked Questions
Does the Gates timing belt component kit fit the 1993 Mitsubishi Galant 4-cylinder 2.0L?
Yes. Gates TCK232 is listed for the 1993 Mitsubishi Galant 4-cylinder 2.0L, and that car takes one kit.
Does this listing work as a Gates timing belt and water pump kit?
No. Gates TCK232 has two belts, two tensioners and one idler, and no water pump; the pump is a separate part.
How wide are the two belts in this kit?
Belt 1 has 123 teeth and is 29 mm (1.142 in) wide; belt 2 has 65 teeth and is 13 mm (0.5 in) wide. Both are HSN belt material.
Does this Gates PowerGrip timing belt kit come with installation instructions?
Yes. Gates TCK232 includes instruction sheet 0098-0112.
Which tensioner types are in this timing belt component kit?
The kit lists hydraulic and eccentric as its tensioner types, with two tensioners in the box alongside one idler.
