Gates TCK307N timing belt component kit for the 2000-2009 Subaru Outback H4 2.5L and other vehicles replaces the belt, tensioner and idlers together. As one kit, this engine timing belt component kit is OE-equivalent or better in service life, quality and performance.
- Gates PowerGrip timing component kit (TCK) line
- Curvilinear (II) tooth belt with 223 teeth, 27 mm wide, in HSN material
- Hydraulic tensioner, one per kit
- Belt with timing marks
- Belt, tensioner and idlers supplied together so the system is replaced in one go
Quick facts
- Part: Gates TCK307N timing belt component kit
- Also called: engine timing belt component kit
- Fits: 2000-2009 Subaru Outback H4 2.5L and other vehicles
- Material: HSN belt
- Condition: New
A cracked or frayed belt, missing teeth, or a noise from the front of the engine can mean the belt, tensioner or an idler is worn. Before you replace the kit, rule out other sources of that noise, such as an accessory drive belt or pulley.
Fits
This Gates timing belt kit for Subaru also fits the 2000-2009 Subaru Legacy H4 2.5L and the 2003-2006 Subaru Baja H4 2.5L. Each engine takes one kit.
Specifications
Fit and size
- Quantity per vehicle: 1 kit
- Belt width: 27 mm (1.063 in)
- Belt teeth: 223
Build and materials
- Tooth type: Curvilinear (II)
- Belt material: HSN
- Tensioner type: Hydraulic
- Grade type: OE Exact
- Condition: New
- Country of origin: Japan
- Gates warranty: matches the original manufacturer's timing belt replacement intervals, covering labor and other associated costs as well as parts
In the box

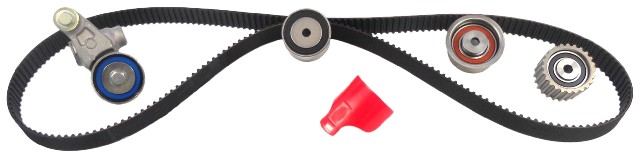

One timing belt, one OE Exact hydraulic tensioner, two idlers, an idler sprocket, an installation tool and Loctite threadlocker. Bolts, springs and a water pump are not included, and old bolts may not be reusable, so plan on new ones.
Installation notes
- Detailed installation instructions come with the kit (instruction sheet 0098-1683).
- Technical Service Bulletins for troublesome applications are included.
Frequently Asked Questions
Is this Gates timing belt kit right for the 2000-2009 Subaru Outback H4 2.5L?
Yes. Gates TCK307N fits the 2000-2009 Subaru Outback H4 2.5L, and also the 2000-2009 Subaru Legacy H4 2.5L and the 2003-2006 Subaru Baja H4 2.5L.
Is this a Gates timing belt and water pump kit?
No. Gates TCK307N has the belt, tensioner, idlers and an idler sprocket but no water pump, so a pump is a separate part.
What does the Gates timing belt component kit include besides the belt?
Gates TCK307N adds an OE Exact hydraulic tensioner, two idlers, an idler sprocket, an installation tool and Loctite threadlocker. It has no bolts or springs.
How wide is the belt in the TCK307N and how many teeth does it have?
The belt is 27 mm (1.063 in) wide with 223 curvilinear (II) teeth, and it carries timing marks.
Is the tensioner in this kit hydraulic or spring-type?
Hydraulic. Gates TCK307N has one OE Exact hydraulic tensioner and no tensioner spring.
