Gates TCK328 timing belt component kit for the 2004-2013 Subaru Forester H4 2.5L and other vehicles replaces the timing belt along with the parts that tension and guide it. This Gates timing belt component kit is built for a complete system replacement, so a technician can change the drive parts together.
- PowerGrip Premium Timing Component Kit (TCK) line from Gates
- HSN timing belt with 281 Modified Curvilinear (III) teeth, 29 mm wide
- OE Improved grade kit with a hydraulic tensioner
Quick facts
- Part: Gates TCK328 timing belt component kit
- Also called: engine timing belt component kit
- Fits: 2004-2013 Subaru Forester H4 2.5L and other vehicles
- Material: HSN belt
- Condition: New
A timing belt that is due for replacement can show cracks, fraying or worn teeth, and a weak tensioner or idler can add noise at the front of the engine. A leaking water pump, a worn accessory belt or a noisy pulley bearing can be behind some of the same signs, so find the cause before buying. Each engine takes one kit.
Fits
The 2004-2013 Subaru Forester H4 2.5L, the 2003-2005 Subaru Impreza H4 2.0L, the 2004-2014 Impreza H4 2.5L and the 2005-2009 Subaru Outback H4 2.5L all take this kit, and so do more vehicles. Look up your own year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per application: 1 kit
- Number of components: 6
- Belt: 1, 281 teeth, 29 mm (1.142 in) wide
- Tooth type: Modified Curvilinear (III)
- Tensioner: 1
- Idlers: 3, plus 1 idler sprocket
Build and materials
- Belt material: HSN
- Tensioner type: Hydraulic
- Grade: OE Improved
- Timing marks: Yes
- Condition: New
- Country of origin: Canada
- Warranty: Gates warranty matches the original manufacturer's timing belt replacement intervals and covers labor and other associated costs as well as parts
In the box

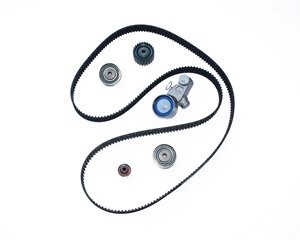

One timing belt, one hydraulic tensioner, three idlers, one idler sprocket, an installation tool and Loctite threadlocker. A water pump is not part of the kit.
Installation notes
- Detailed installation instructions come with the kit on instruction sheet 0098-1668.
- The kit is intended for technicians doing a complete system replacement.
Interchange: TB328K1 · 95328K1 · 95328K1S · GTK0328 · 2523280
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
TCK328, TB328K1, 95328K1, 95328K1S, GTK0328, 2523280
Frequently Asked Questions
Does this Gates timing belt kit for Subaru fit the 2003-2005 Subaru Impreza H4 2.0L?
Yes. Gates TCK328 fits the 2003-2005 Subaru Impreza H4 2.0L and the 2004-2014 Impreza H4 2.5L, one kit per engine. Look up other years in the "Vehicles it fits" section.
Is this a Gates timing belt and water pump kit?
No. Gates TCK328 has no water pump. It holds the belt, a hydraulic tensioner, three idlers, an idler sprocket, an installation tool and Loctite threadlocker.
Does this engine timing belt component kit include an installation tool?
Yes. The kit comes with an installation tool and Loctite threadlocker, plus detailed installation instructions on instruction sheet 0098-1668.
How many teeth and how wide is the timing belt in this kit?
The belt has 281 Modified Curvilinear (III) teeth and is 29 mm (1.142 in) wide. Its belt material is HSN.
Does Gates TCK328 interchange with 95328K1?
Yes. 95328K1 is an interchange number for Gates TCK328, along with TB328K1, 95328K1S, GTK0328 and 2523280.
