Timing Belt Kit with Water Pump for 2007-2012 Volvo C30 & More - Gates TCKWP331B

$297.99

Vehicles this part fits

    Part number: TCKWP331B
    UPC: 770075535812
    Condition: New
    Weight: 4.50 LBS
    Item Package Quantity: 1
    $297.99
    Adding to cart… The item has been added

    Have questions?

    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP331B
    Gates Engine Timing Belt Kit with Water Pump P/N:TCKWP331B
    $297.99
    $297.99

    Gates TCKWP331B timing belt kit with water pump for the 2007-2010 Volvo C30 5-cylinder 2.4L, the 2007-2012 C30 5-cylinder 2.5L and other vehicles replaces the timing belt, tensioner, idler and water pump in one job. A timing-belt-driven water pump should be replaced at the same time as the belt, and this kit supplies both.

    • PowerGrip Premium timing component kit with water pump

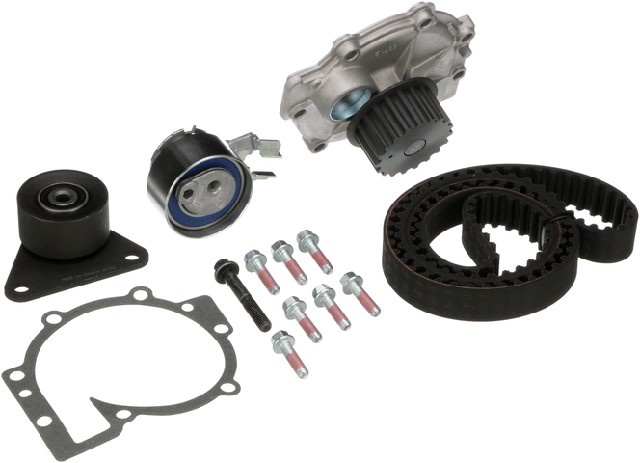

    • Kit holds a timing belt, tensioner, idler pulley, water pump, 7 bolts and a gasket
    • Timing belt made of HSN with fiberglass cord, 142 teeth, modified curvilinear (III) tooth type
    • Water pump designed and built for efficient cooling
    • Detailed installation instructions and technical service bulletins come with the kit

    Quick facts

    • Part: Gates TCKWP331B timing belt kit with water pump
    • Also called: engine timing belt kit with water pump
    • Fits: 2007-2010 Volvo C30 5-cylinder 2.4L, the 2007-2012 C30 5-cylinder 2.5L and other vehicles
    • Material: Belt: HSN, fiberglass cord
    • Condition: New

    Cracks, fraying or missing teeth on the belt, coolant seepage at the pump, or a noisy tensioner or idler can mean the kit is due. A leaking coolant hose or a worn accessory-drive pulley can be behind some of these signs too, so find the cause before buying.

    Fits

    The vehicles it fits include the 2007-2010 Volvo C30 5-cylinder 2.4L, the 2007-2012 C30 5-cylinder 2.5L, the 2004-2010 Volvo S40 5-cylinder 2.4L, the 2004-2012 S40 5-cylinder 2.5L and the 2006-2012 Volvo C70 5-cylinder 2.5L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Components in the kit: 4
    • Timing belt width: 23 mm (0.906 in)
    • Timing belt teeth: 142
    • Tooth type: Modified Curvilinear (III)
    • Tensioner type: Spring
    • Bolts: 7
    • Gaskets: 1

    Build and materials

    • Belt material: HSN, fiberglass cord
    • Grade type: OE Exact
    • Condition: New
    • Warranty: Gates warranty matches the original manufacturer's timing belt replacement intervals for parts, labor and other associated costs
    • Country of origin: China

    In the box

    One kit with a timing belt, tensioner, idler pulley, water pump, 7 bolts, a gasket and installation instructions. This listing is one kit, and the vehicle takes one. Springs and an installation tool are not included.

    Installation notes

    • Detailed installation instructions come with the kit (instruction sheet 0098-1720).
    • Technical service bulletins for troublesome applications are included.

    Interchange: TKV-003 · 3490-2331
    CK331LK2 · GTKWP331A · PP331LK4 · TB331LK3 · WP311K1BS · WP311K3A · WP311K3AS · 24499K · BWPK41110D · WPK41110D

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCKWP331B, TKV-003, CK331LK2, GTKWP331A, PP331LK4, TB331LK3, WP311K1BS, WP311K3A, WP311K3AS, 3490-2331, 24499K, BWPK41110D, WPK41110D

    Frequently Asked Questions

    Is this Gates timing belt and water pump kit right for the 2004-2010 Volvo S40 5-cylinder 2.4L?

    Yes. Gates TCKWP331B fits the 2004-2010 Volvo S40 5-cylinder 2.4L. If your car is a different one, find your year and engine in the "Vehicles it fits" section on this page.

    Which parts does this engine timing belt kit with water pump replace?

    Gates TCKWP331B holds a timing belt, tensioner, idler pulley, water pump, 7 bolts and a gasket. Springs and an installation tool are not included.

    How wide is the timing belt in the Gates TCKWP331B kit?

    The belt is 23 mm (0.906 in) wide, with 142 teeth and a modified curvilinear (III) tooth type.

    How can I tell the timing belt or water pump in this kit is wearing out?

    Cracks, fraying or missing teeth on the belt and coolant seepage at the pump can point to wear, and so can a noisy tensioner or idler. A shop can test anything beyond a visual look.

    Does the TCKWP331B kit come with installation instructions?

    Yes. Instruction sheet 0098-1720 comes with the kit, along with technical service bulletins for troublesome applications.
