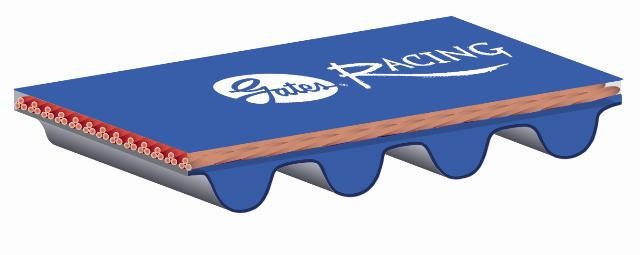

Gates T226RB timing belt for the 1993-2001 Honda Prelude 4-cylinder 2.2L keeps the camshaft turning in step with the crankshaft. This blue Gates timing belt, also called an engine timing belt, is a High Performance grade belt.
- RPM High Performance line, made to withstand higher-horsepower engines
- Construction that reduces the chance of engine damage, particularly on interference engines
- Specially formulated compound with up to 3X the heat resistance
- Gripping teeth reinforced with aramid and nylon cover to minimize wear
Quick facts
- Part: Gates T226RB timing belt
- Also called: engine timing belt
- Fits: 1993-2001 Honda Prelude 4-cylinder 2.2L
- Material: HSN
- Condition: New
Cracked or frayed teeth, oil on the belt, or hard starting can mean a timing belt is worn or failing. A worn tensioner, idler pulley or water pump can also be behind a ticking or squealing noise from the belt area, so find which part is at fault before you buy a belt.
Fits
This is a timing belt replacement for the 1993-2001 Honda Prelude 4-cylinder 2.2L, and it installs and fits like the OE version.
Specifications
Fit and size
- Quantity per application: 1
- Belts in listing: 2
- Belt 1: 155 teeth, 8 mm (0.315 in) pitch, 24 mm (0.945 in) top width, 1240 mm (48.819 in) pitch length
- Belt 2: 70 teeth, 9.5 mm (0.375 in) pitch, 16 mm (0.63 in) top width, 667 mm (26.25 in) pitch length
Build and materials
- Belt material: HSN
- Cord material: Fiberglass
- Grade: High Performance
- Profile: Modified Curvilinear (III)
- Timing marks: No
- Condition: New
- Country of origin: United States
In the box
Two timing belts, one with 155 teeth and one with 70 teeth. This listing holds both, and the 1993-2001 Honda Prelude 4-cylinder 2.2L takes one listing.
Interchange: TB-226 · 026-0308 · CD-226 · 25-90226
T226 · B226 · 95226 · 95226FN · 40226 · 14400P13004 · 14400P13014 · B0226 · 250226 · OHC226 · HR488YU24
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
TB226, 026-0308, T226, T226RB, TB-226, B226, 95226, 95226FN, 40226, CD-226, 14400P13004, 14400P13014, B0226, 25-90226, 250226, OHC226, HR488YU24
Frequently Asked Questions
Is this the right timing belt for the 1993-2001 Honda Prelude 4-cylinder 2.2L?
Yes. Gates T226RB is a direct-fit replacement for the 1993-2001 Honda Prelude 4-cylinder 2.2L, and it installs and fits like the OE version.
Does this Gates timing belt listing hold one belt or two?
Two: a 155-tooth belt and a 70-tooth belt. The listing holds both, and the quantity per vehicle is one listing.
Is this Gates blue belt a High Performance grade timing belt?
Yes. Gates T226RB is an RPM High Performance timing belt with a fiberglass cord and a Modified Curvilinear (III) tooth profile.
How can I tell if a timing belt like this is worn?
Cracked, frayed or missing teeth and oil on the belt can mean wear. A shop can inspect the belt for you.
Does Gates T226RB replace timing belt number TB-226?
Yes. TB-226 is one of the numbers Gates T226RB replaces, along with 026-0308 and 14400P13004.
