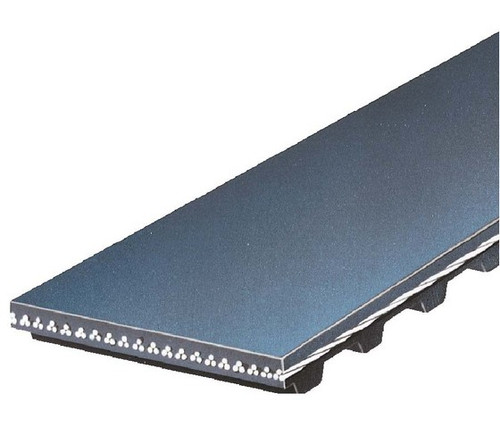

Gates T304RB timing belt for the 2000-2012 Subaru Outback H4 2.5L and other vehicles keeps the camshafts turning in time with the crankshaft. This Gates timing belt is as much as 300 percent stronger than the standard aftermarket belt.
- Gates RPM High Performance timing belt line
- Specially formulated rubber compound with up to 3X the heat resistance
- Construction that reduces the chance of engine damage, particularly on interference engines
- Gripping teeth reinforced with aramid and nylon cover to minimize wear
Quick facts
- Part: Gates T304RB timing belt
- Also called: engine timing belt
- Fits: 2000-2012 Subaru Outback H4 2.5L and other vehicles
- Material: HSN
- Condition: New
A worn engine timing belt can show up as cracks, fraying or missing teeth, or as ticking from the front of the engine. A worn tensioner, idler pulley or water pump can be behind similar noises, so find the cause before buying a belt. If the belt is the cause, this one replaces it.
Fits
It is listed for a wide range of Subaru and Saab models, including this timing belt for the 2000-2012 Subaru Outback H4 2.5L, the 1999-2001 Subaru Impreza H4 2.2L and the 1999-2011 Impreza H4 2.5L, and the 1999-2010 Subaru Forester H4 2.5L. Each takes one belt, and it installs and fits like the OE version. If your car is not named here, look up its year, model and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Teeth: 223
- Pitch: 8 mm (0.315 in)
- Top width: 27 mm (1.063 in)
- Pitch length: 1784 mm (70.236 in)
Build and materials
- Type: high performance timing belt
- Profile: Modified Curvilinear (III)
- Belt material: HSN
- Cord material: fiberglass
- Condition: new
- Country of origin: United States
Interchange: CD-304
TB304 · T304 · B304 · 95304 · 95304FN · 40304 · 250304 · 32005535 · OHC304 · 13028AA181 · 13028AA230 · 13028AA231 · A702YU26MM
This part cross-references / interchanges with the following part numbers:
TB304, T304, T304RB, B304, 95304, 95304FN, 40304, CD-304, 250304, 32005535, OHC304, 13028AA181, 13028AA230, 13028AA231, A702YU26MM
Frequently Asked Questions
Can the Gates T304RB handle a Subaru Outback timing belt replacement on a 2000-2012 Subaru Outback H4 2.5L?
Yes. Gates T304RB is listed for the 2000-2012 Subaru Outback H4 2.5L, and that engine takes one belt. For other years or engines, look in the "Vehicles it fits" section.
How many teeth and how wide is the Gates T304RB belt?
The Gates T304RB has 223 teeth, an 8 mm (0.315 in) pitch and a top width of 27 mm (1.063 in). Its pitch length is 1784 mm (70.236 in).
What is this RPM timing belt made of?
The belt material is HSN, with a fiberglass cord. The gripping teeth are reinforced with aramid and nylon cover.
What should I look for on a worn Gates T304RB timing belt?
Cracks, fraying or missing teeth on the belt can mean wear, and so can ticking from the front of the engine. A shop can inspect the belt and the parts that drive it.
Does the Gates T304RB replace number 13028AA231?
Yes. 13028AA231 is an interchange number for this belt, so the Gates T304RB replaces it.
