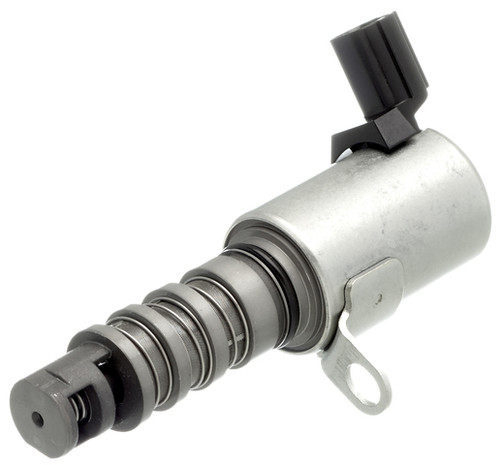

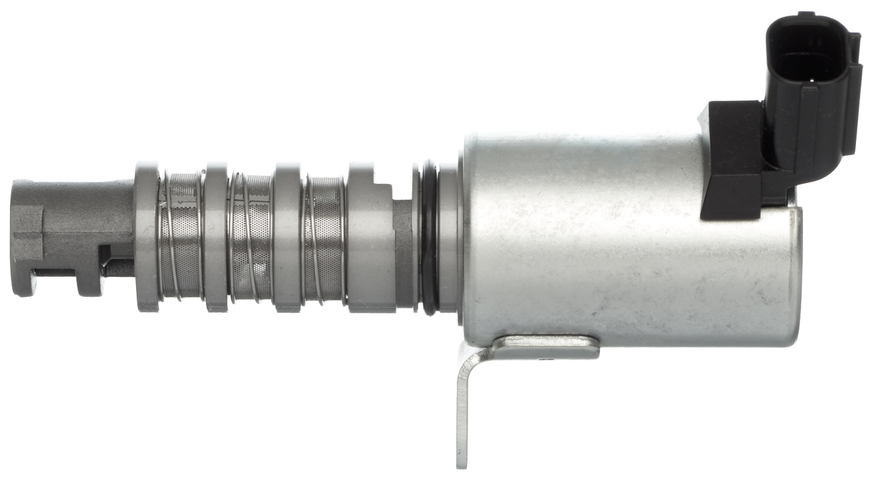

Gates VVS148 VVT solenoid for the 2002-2005 Honda Civic 4-cylinder 2.0L and other vehicles continuously controls oil flow for precise valve timing. It is a variable valve timing solenoid designed to OE specifications in fit, form and performance.
- Tested to help restore engine performance, idle quality and fuel economy
- Continuous oil flow control for precise valve timing
- Electromagnetic activation on a 12 V supply
- Steel housing with a seal included
- One female connector with two male pin terminals
Quick facts
- Part: Gates VVS148 VVT solenoid
- Also called: variable valve timing solenoid
- Fits: 2002-2005 Honda Civic 4-cylinder 2.0L and other vehicles
- Material: Steel housing
- Condition: New
A worn solenoid can show up as a rough idle, lower fuel economy or a check engine light, and those signs can have other causes too. Before replacing it, look over the solenoid and its connector with the engine off and cool for oil residue, cracks or bent pins. A shop can test the circuit electrically. Each engine takes one solenoid.
Fits
This VVT solenoid is a direct replacement for the 2002-2005 Honda Civic 4-cylinder 2.0L, the 2002-2004 Honda CR-V 4-cylinder 2.4L and the 2002-2004 Acura RSX 4-cylinder 2.0L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Overall height: 28.5 mm (1.122 in)
- Housing length: 109 mm (4.291 in)
- Housing width: 28.5 mm (1.122 in)
- Shaft diameter: 20 mm (0.787 in)
- Connector: 1, female; terminals: 2, male pin
Build and materials
- Housing material: steel
- Activation type: electromagnetic
- Voltage: 12 V
- Seal: included
- Condition: new
- Country of origin: China
In the box
One solenoid with its seal. Mounting hardware is not included, so plan on new fasteners, since the old ones may not be reusable.
Interchange: 7V-5004 · 918-070
2T1138 · VV1171 · 15830PNC003 · VTS1034 · VVT271 · TS1138
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
2T1138, VV1171, 7V-5004, 918-070, 15830PNC003, VVS148, VTS1034, VVT271, TS1138
Frequently Asked Questions
Is Gates VVS148 the VVT solenoid for a 2002-2004 Honda CR-V 4-cylinder 2.4L?
Yes. Gates VVS148 fits the 2002-2004 Honda CR-V 4-cylinder 2.4L, and that engine takes one solenoid.
Does Gates VVS148 work as a VVT solenoid for the 2002-2004 Acura RSX 4-cylinder 2.0L?
Yes. This solenoid fits the 2002-2004 Acura RSX 4-cylinder 2.0L, which takes one.
Does the Gates VVS148 include a seal and mounting bolts?
The listing includes the solenoid and its seal. Mounting hardware is not included, so plan on new fasteners rather than reusing the old ones.
What voltage and connector does this VVT solenoid use?
The Gates VVS148 is a 12 V electromagnetic solenoid with one female connector and two male pin terminals.
Does Gates VVS148 replace the 918-070 solenoid?
Yes. 918-070 is one of the numbers Gates VVS148 replaces, along with 7V-5004 and VVT271. All are on the Interchange line.
