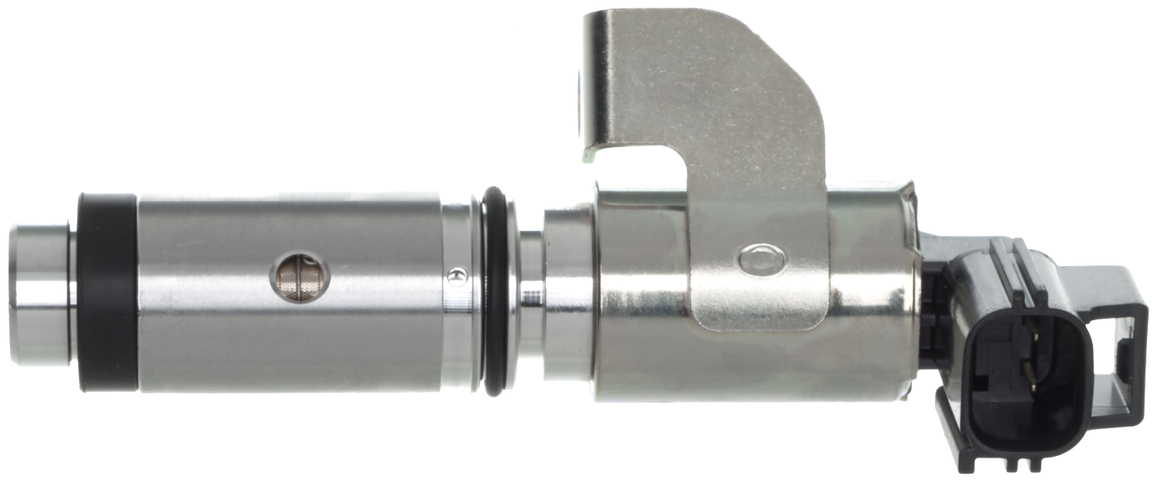

Gates VVS194 VVT solenoid for the 2010-2015 Volvo XC60 6-cylinder 3.2L, the 2010-2016 XC60 6-cylinder 3.0L and other vehicles controls oil flow to set variable valve timing. This variable valve timing solenoid is a direct replacement, designed to OE specifications in fit, form and performance.
- Continuously controls oil flow for precise valve timing
- Electromagnetic activation on a 12 V circuit
- Steel housing, 119 mm long and 24.1 mm wide
- One female connector with two male pin terminals
- Seal included with the solenoid
Quick facts
- Part: Gates VVS194 VVT solenoid
- Also called: variable valve timing solenoid
- Fits: the 2010-2015 Volvo XC60 6-cylinder 3.2L, the 2010-2016 XC60 6-cylinder 3.0L and other vehicles
- Material: Steel
- Condition: New
A sticking solenoid or a faulty circuit can show up as a rough idle, weaker fuel economy or a check engine light, but other parts produce those signs too. Before you replace it, look over the body, seal area and pins for oil residue, cracks or bent terminals with the engine off and cool, and leave electrical testing to a shop.
Fits
The 2010-2015 Volvo XC60 6-cylinder 3.2L, the 2010-2016 XC60 6-cylinder 3.0L, the 2011-2016 Volvo S60 6-cylinder 3.0L and the 2015-2016 Volvo V60 6-cylinder 3.0L fit this solenoid, along with other vehicles. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Overall height: 24.1 mm (0.949 in)
- Housing length: 119 mm (4.685 in)
- Housing width: 24.1 mm (0.949 in)
- Shaft diameter: 22 mm (0.866 in)
Build and materials
- Housing material: Steel
- Activation type: Electromagnetic
- Voltage: 12 V
- Connector: 1 female connector
- Terminals: 2 male pin terminals
- Seal: included
- Condition: New
- Country of origin: China
In the box
One VVT solenoid with its seal. This listing is one solenoid, and the engine takes one. Mounting hardware is not included, so plan on new fasteners in case the old ones can't be reused.
Interchange: OCVV-002 · 916-510 · 916-735
VV1213 · 7G9N9M424AA · LR011224 · VTS1161 · VVT313 · VVT355 · 30731116 · 31251224 · 36002690
This part cross-references / interchanges with the following part numbers:
OCVV-002, VV1213, 916-510, 916-735, 7G9N9M424AA, LR011224, VVS194, VTS1161, VVT313, VVT355, 30731116, 31251224, 36002690
Frequently Asked Questions
Is the Gates VVS194 the right Volvo S60 vvt solenoid for the 2011-2016 6-cylinder 3.0L?
Yes, Gates VVS194 fits the 2011-2016 Volvo S60 6-cylinder 3.0L. For any other model or engine, check the "Vehicles it fits" section.
Does the Gates VVS194 come with a seal and mounting bolts?
This Gates VVS194 includes a seal, but mounting hardware is not included. The listing is one solenoid, so plan on new fasteners if the old ones can't be reused.
What voltage and connector does this VVT solenoid use?
Gates VVS194 is a 12 V electromagnetic solenoid with one female connector and two male pin terminals.
Does the Gates VVS194 replace part number 36002690?
Yes, 36002690 is on the interchange list for Gates VVS194, along with 31251224 and 30731116.
What are the dimensions of the Gates VVS194 solenoid?
The housing is 119 mm long and 24.1 mm wide, overall height is 24.1 mm, and the shaft diameter is 22 mm.
